X1W

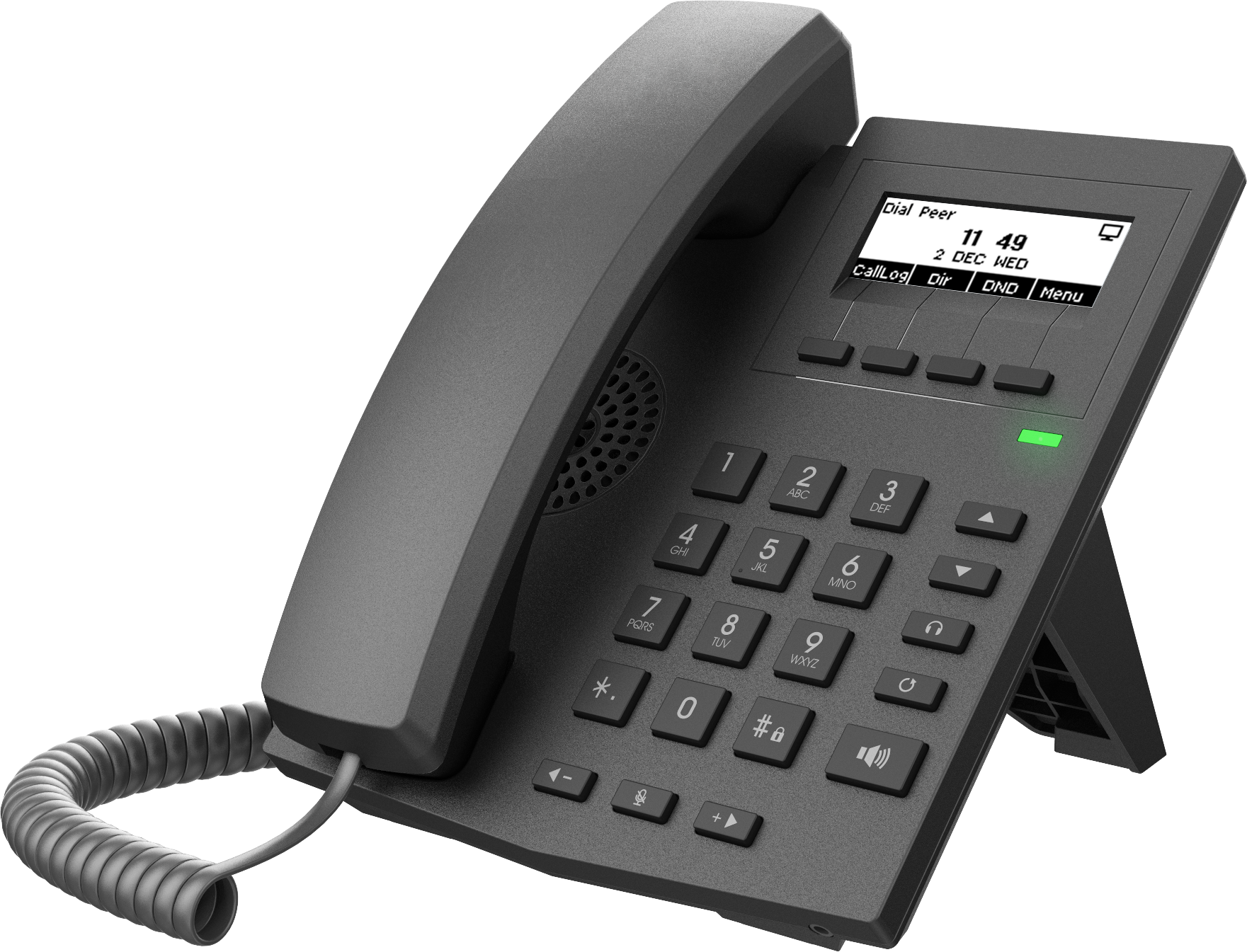

Business X1W IP Phone, 2 SIP, PoE power supply, 3-way conference call Telephone

1. Overview

X1W is an entry-level IP Phone, 128x48 dot matrix screen, supports 2 SIP accounts, PoE power supply, 3-way conference call and other rich functions; can meet different enterprise application scenarios, And provide a quality user experience.

The device is the latest generation of IP Phone, which supports many excellent features, such as high-definition voice, headphones and high-performance echo cancellation full duplex speaker, fast ethernet, QoS, encryption transmission, automatic configuration, new system, smooth operation, flat interface settings and many other advantages.

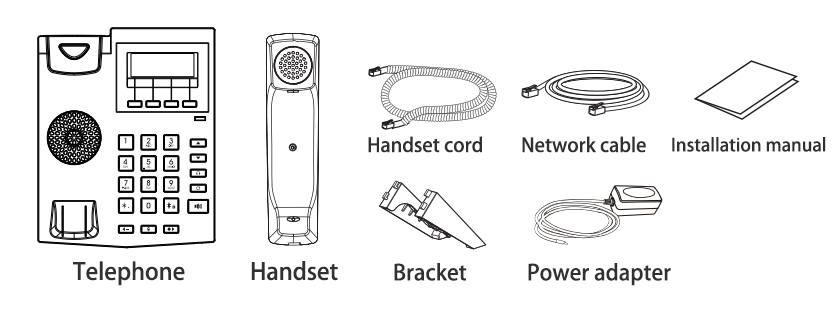

2. Packing Contents

3. Installation the device

Bracket desktop installation

Please follow the instructions in below picture to install the device.

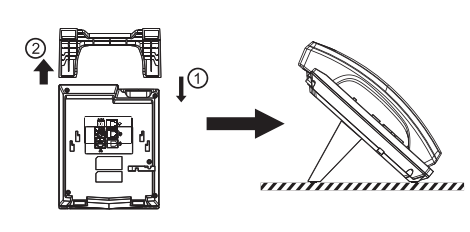

Picture 1- Desktop installation

Connect the power adapter, network, PC, phone and earphone to the appropriate port as shown in the picture below.

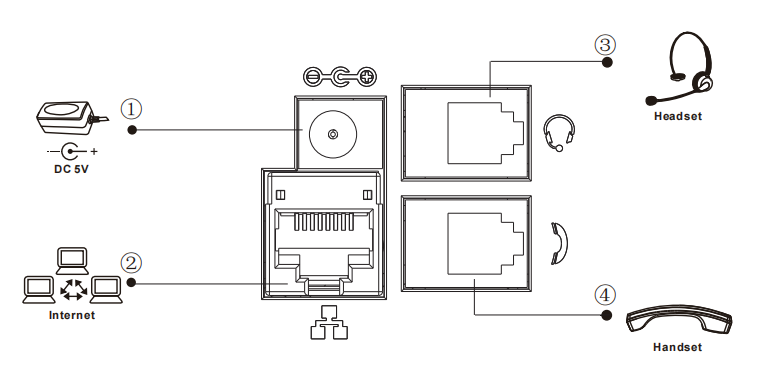

Picture 2 -- Connecting to the Device

Table 1 - Hardware Interface Description

Index	Interface	Description
①	Power Interface	Connecting Power Adapter
②	Network Interface	Connecting to LAN or Internet
③	PC Port	Network Interface for Connecting Computer
④	Headset Interface	Connecting Headset

4.specifications

Generic

2SIP Lines
Dot-matrix Screenwithout backlight
Handset / Hands-free / Headsetmode
Desktop Stand
External Power Supply

Phone Features

Local Phonebook (1000 entries)
Remote Phonebook (XML/LDAP, 1000entries)
Call logs(In/out/missed, 600 entries)
Black/White List Call Filter
Voice Message Waiting Indication (VMWI)
Programmable Soft keys
Network Time Synchronization
Built-in 2.4GHzWi-Fi
Network standard: IEEE 11b/g/n
Transmission rate: Up to 150Mbps (dynamic)
Support Recording (onServer)
Action URL / Active URI
UaCSTA

Call Features

Call out /Answer / Reject
Mute / Unmute (Microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forwarding (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (Depending on server)
Redial
Do-Not-Disturb
Auto-Answering
Voice Message (On server)
3-way Audio Conference
Hot Line
Hot desking

Audio

Wideband ADC/DAC 16KHz Sampling
Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
Wideband Codec: G.722, Opus
Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO
