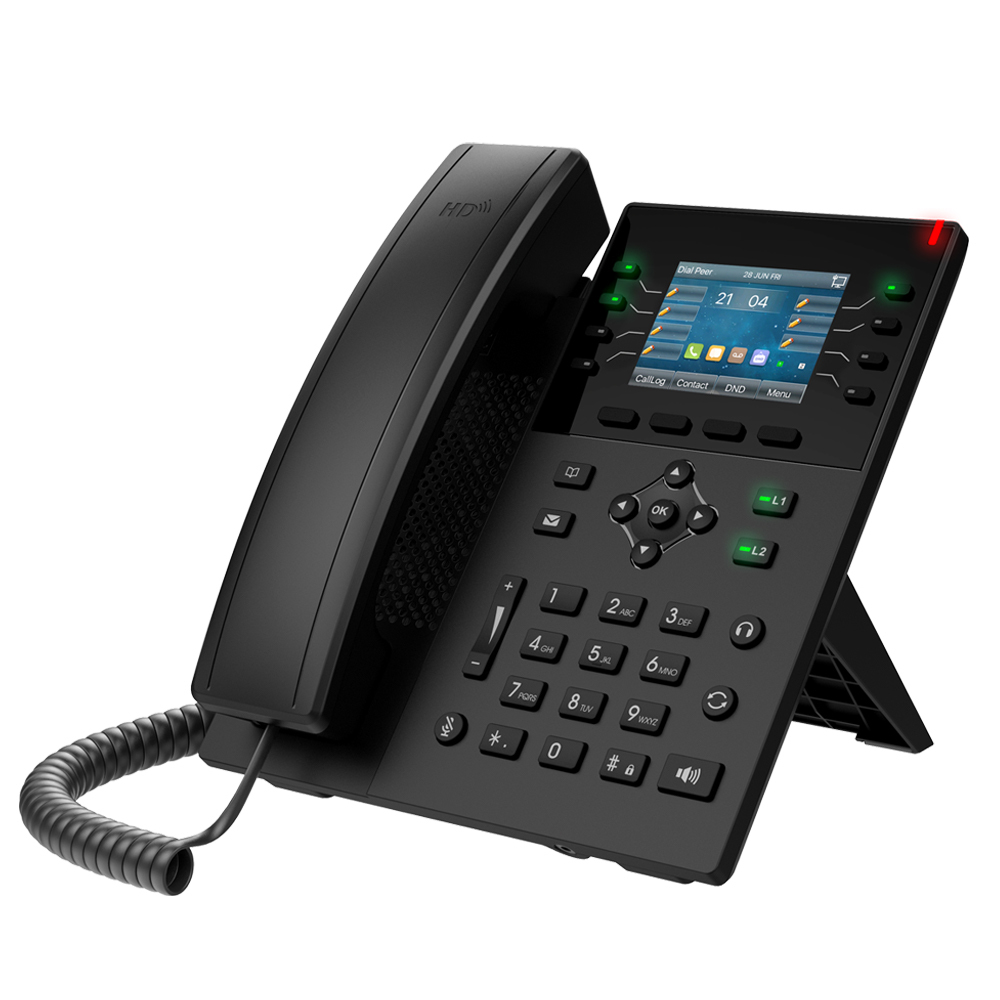

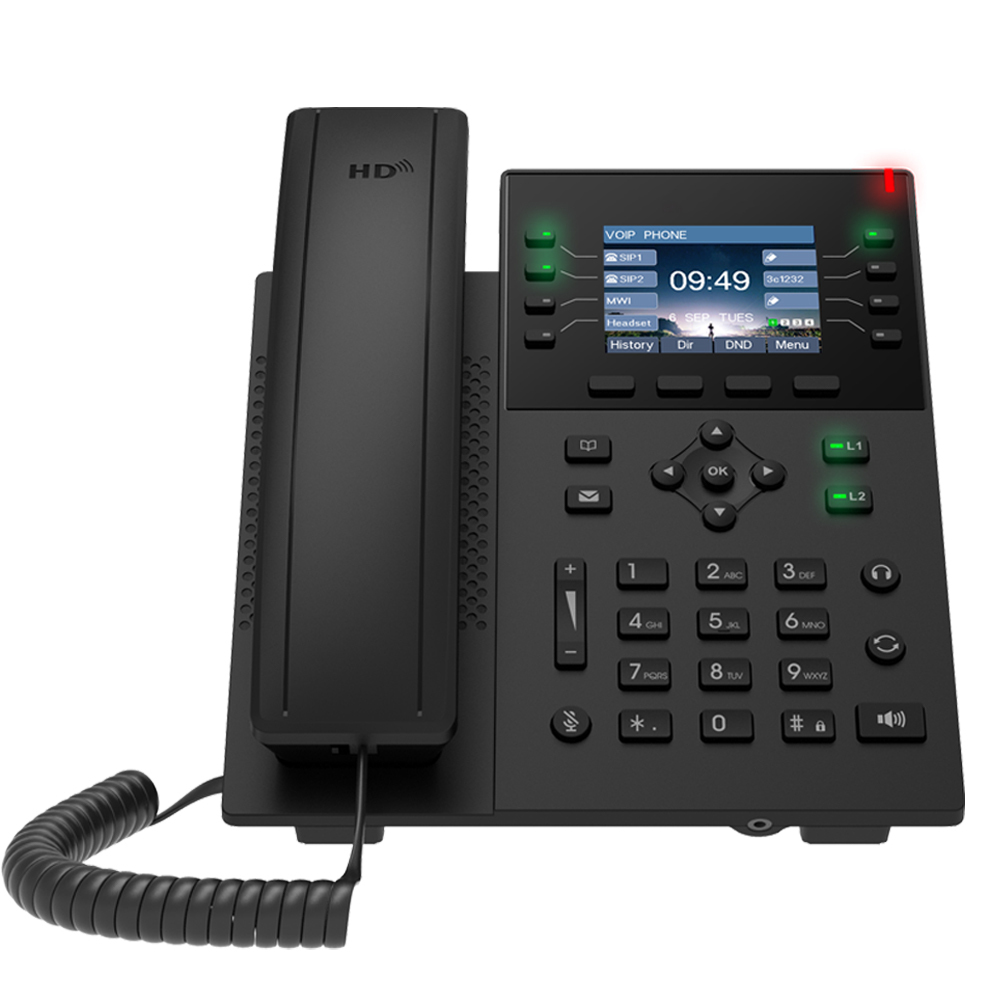

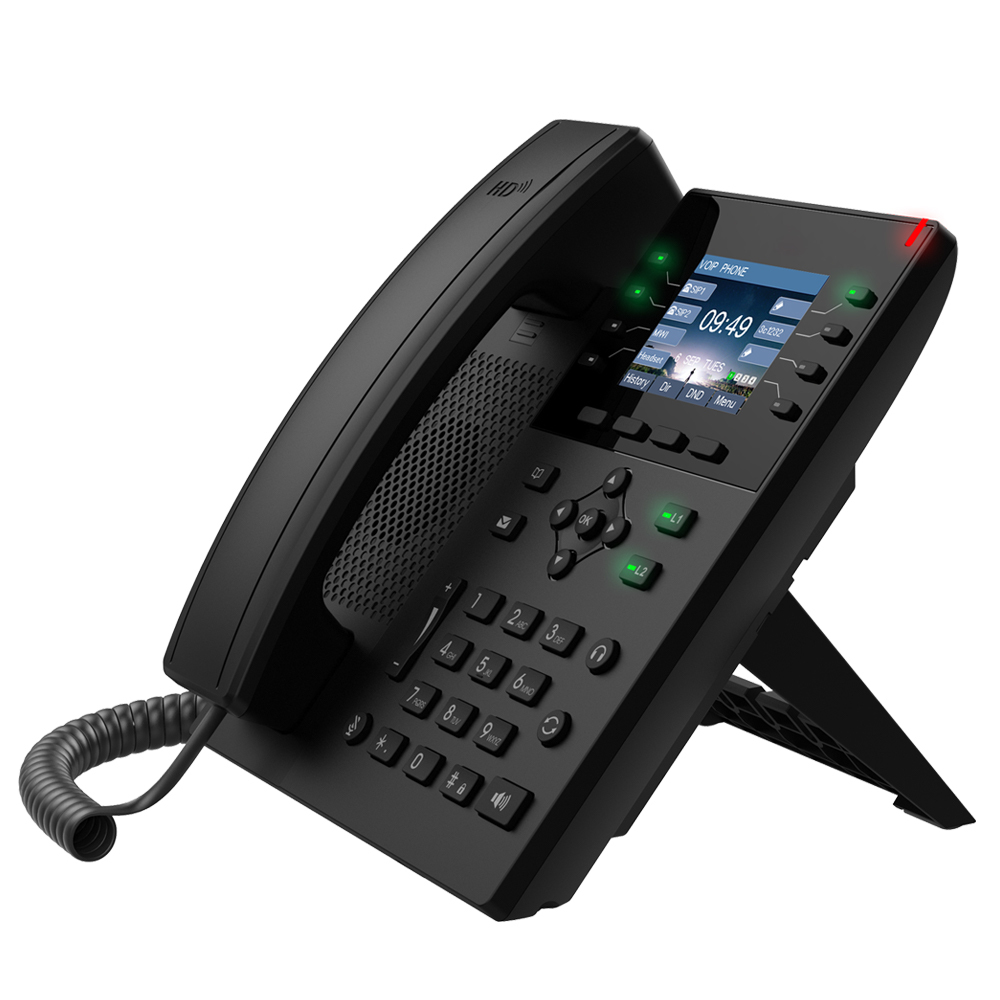

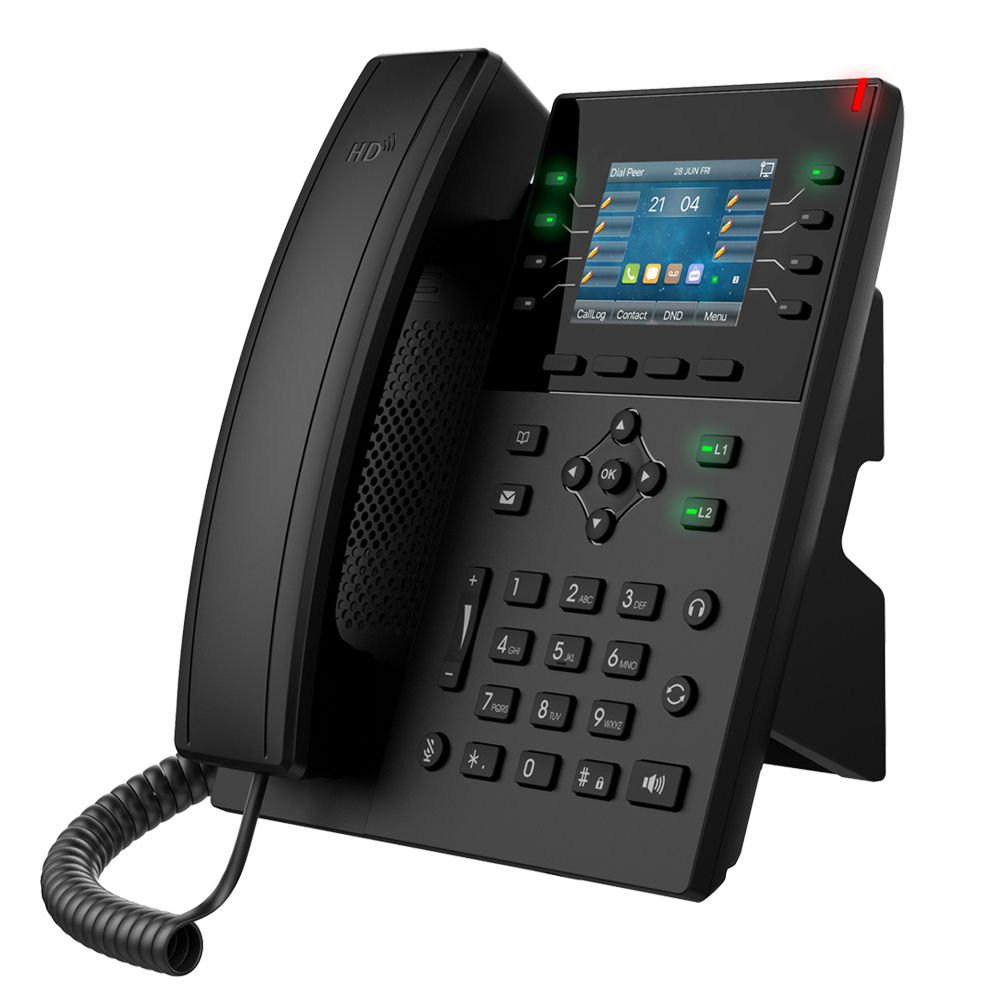

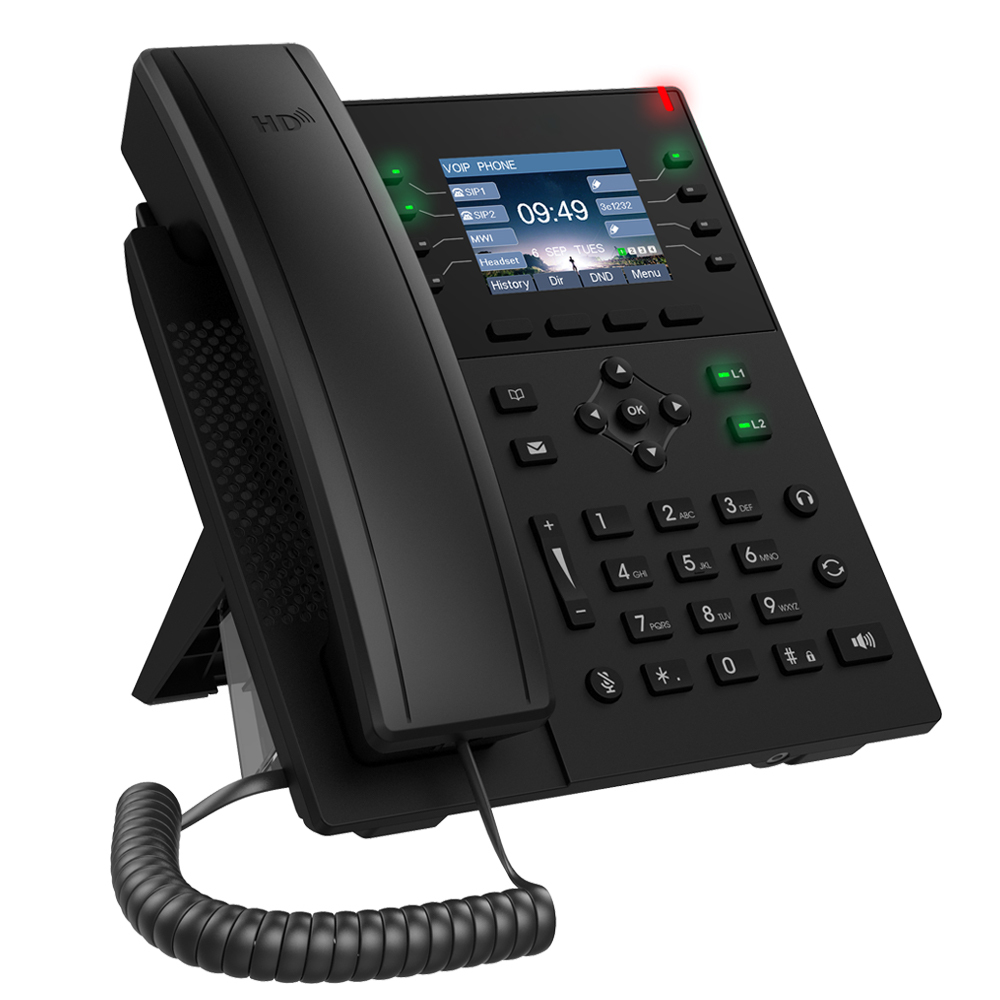

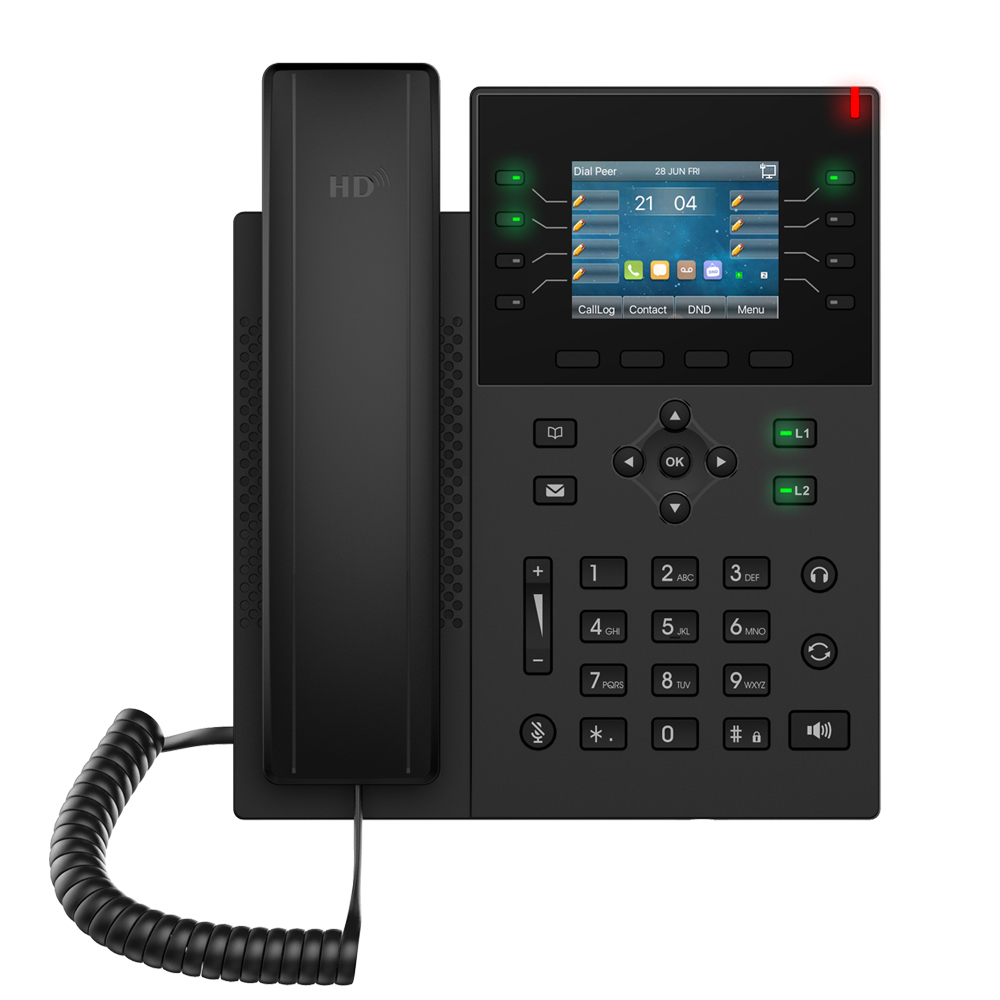

YX VOIP Phone 12 Lines Business IP Phone POE with built-in Bluetooth SIP With Fast Ethernet VOIP Telephone

Language setting on Web page, Supports multiple languages

Generic

l 12 SIP lines

l HD voice

l PoE enabled

l 2.8-inch color screen

l Intelligent DSS keys

l Handset / hands-free / headset mode

l Desktop stand / wall-mounted (need an additional wall hanging parts)

l Optional external power supply

PhoneFeatures

l Local Phonebook (1000 entries)

l Remote Phonebook (XML/LDAP, 1000 entries)

l Call logs (In/out/missed, 1000 entries)

l Black/White List Call Filter

l Voice Message Waiting Indication (VMWI)

l Programmable Soft keys

l Network Time Synchronization

l Built-in bluetooth version 4.2: support bluetooth headset/ bluetooth of mobile device

l Support Wi-Fi Dongle (Via WF20)

l Support Plantronics wireless headset (through Plantronics APD-80 EHS cable)

l Support Jabra wireless headset (through Fanvil EHS20 EHS cable)

l Support recording (through flash drive or server)

l Action URL / Active URI

l UaCSTA


Display of Web Managers Phone Status Page

CallFeatures

l Call out /Answer / Reject

l Mute / Unmute (Microphone)

l Call Hold / Resume

l Call Waiting

l Intercom

l Caller ID Display

l Speed Dial

l Anonymous Call (Hide Caller ID)

l Call Forwarding (Always/Busy/No Answer)

l Call Transfer (Attended/Unattended)

l Call Parking/Pick-up (Depending on server)

l Redial

l Do-Not-Disturb

l Auto-Answering

l Voice Message (On server)

l 6-way Audio Conference

l Hot Line

l Hot desking

Audio

l HD voice microphone/speaker (handset/hands-free, 0 ~ 7KHz frequency response)

l Wideband ADC/DAC 16KHz Sampling

l Narrowband Codec: G.711a/u, G.729A/B, iLBC

l Wideband Codec: G.722, Opus

l Full-duplex Acoustic Echo Canceller (AEC)

l Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) / Automatic Gain Control (AGC)

l Packet Loss Concealment (PLC)

l Dynamic Adaptive Jitter Buffer

l DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

l VQM voice quality monitoring


WEB interface Set call forward page display

Network

l Physical: 10/100Mbps Ethernet, dual bridged port for PC bypass

l IP Mode:IPv4/IPv6/IPv4&IPv6

l IP Configuration: Static IP / DHCP / PPPoE

l Network Access Control: 802.1x

l VPN: L2TP / OpenVPN

l VLAN

l LLDP

l CDP

l QoS

l RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035)

Protocols

l SIP2.0 over UDP/TCP/TLS

l RTP/RTCP/SRTP

l STUN

l DHCP

l IPV6

l CDP

l LLDP

l PPPoE

l 802.1x

l L2TP

l OpenVPN(Requires third-party app support)

l SNTP

l FTP/TFTP

l HTTP/HTTPS

l TR-069

l AES128 & AES256

Deployment & Management

l Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069

l Web Management Portal

l Web-based Packet Dump

l Configuration export / import

l Phonebook import/export

l Firmware upgrade

l Syslog


SIP hotspot server configuration page display

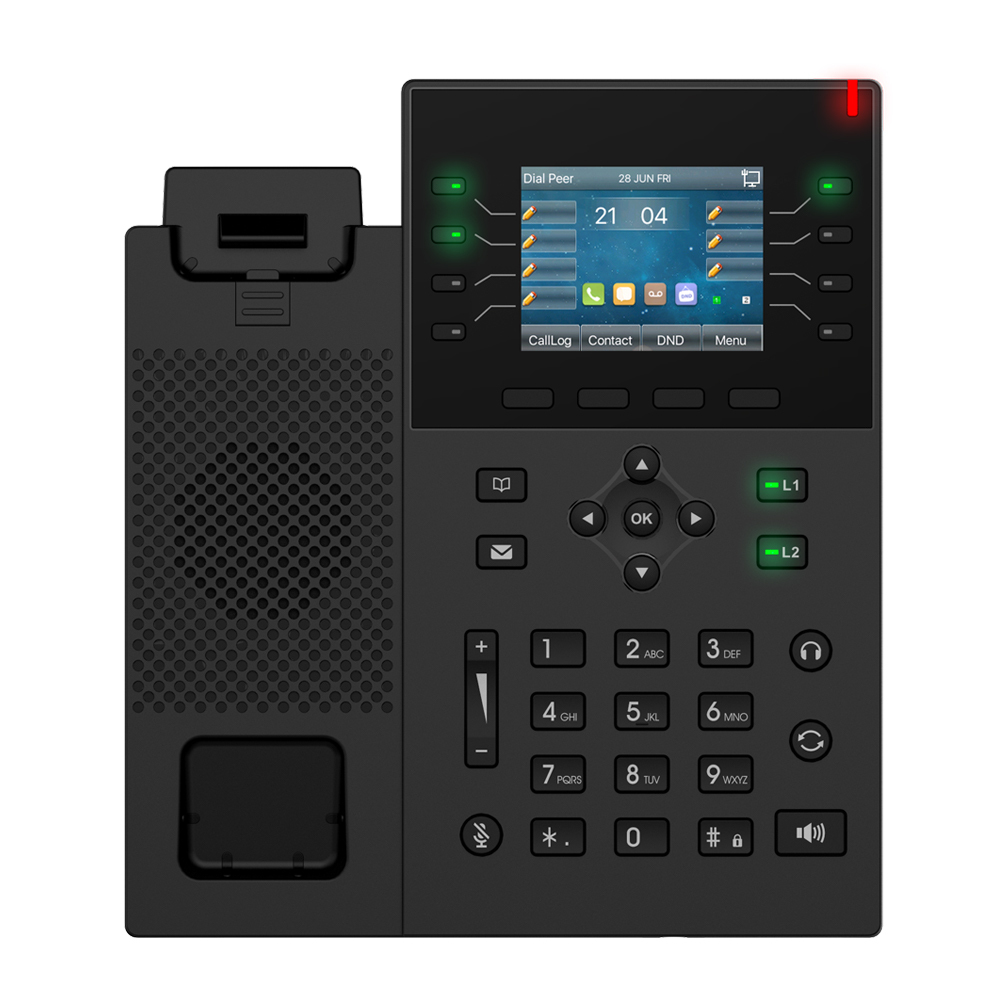

Physical Specifications

l LCD : 2.8-inch (320x240) color screen

l Keypad: 39 keys, including

•  7 DSS keys (with LED indicator light)
• 1 Page-switch (PS) key
• 4 Soft-keys
• 4 Function keys (Phonebook, MWI, Headset, Redial)
• 4 Navigation keys
• 2 Line keys (With LED indicator light)
• 1 OK key
• 12 Standard phone digits keys
• 3 Volume control keys( Up/Down/Mute (Microphone))
• 1 Hands-free key

l HD Handset (RJ9) x1

l Standard RJ9 Handset Cord x1

l 1.5M CAT5.E Ethernet Cable x1

l Back Rack x1

l Status indicator light x1 (Red)

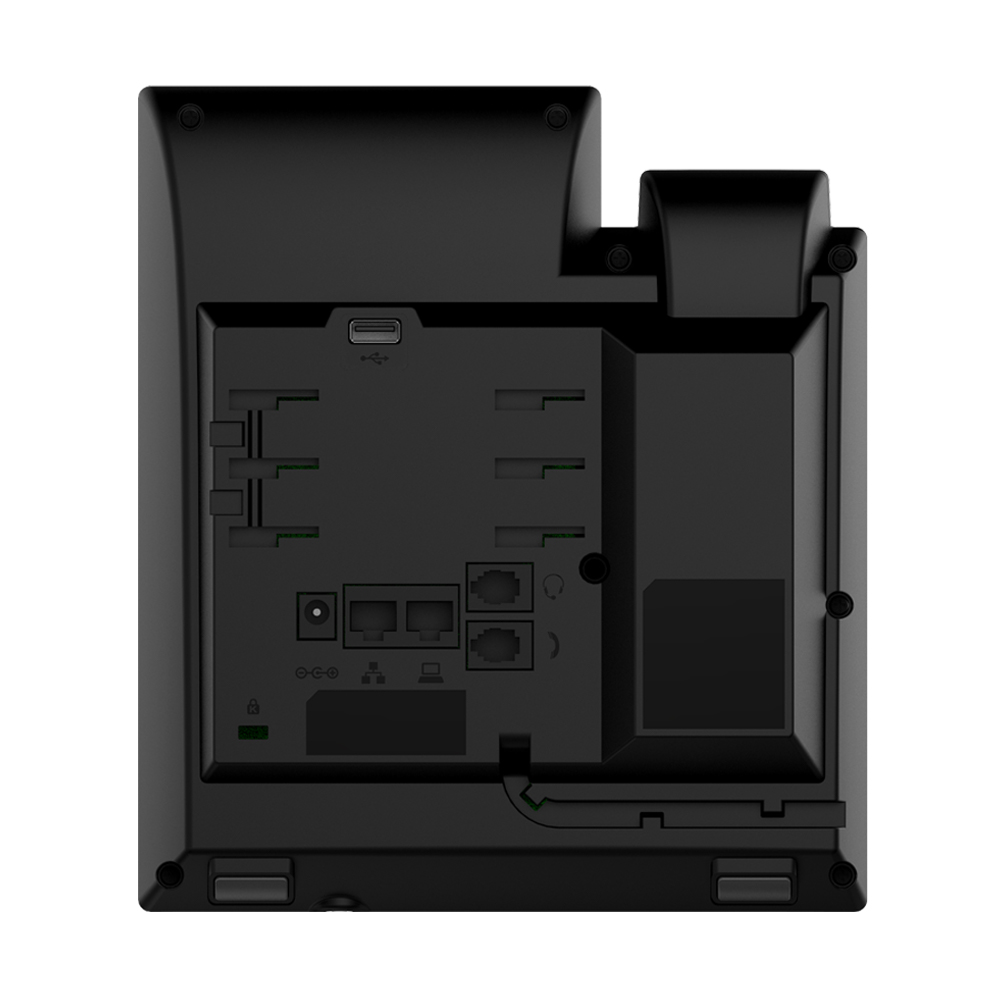

l RJ9 Port : Handset x1, Headset x1

l RJ45 Port : Network x1, PC x1 (bridged to network)

l USB2.0 port x1: Standard A, connect with USB Wi-Fi dongle or flash driver

l DC port x1: Φ5.5x2.1x10mm

l Safety keyhole x1

l DC power input: DC5V/2A

l Working Temperature:0~45℃

l Working Humidity: 10~95%

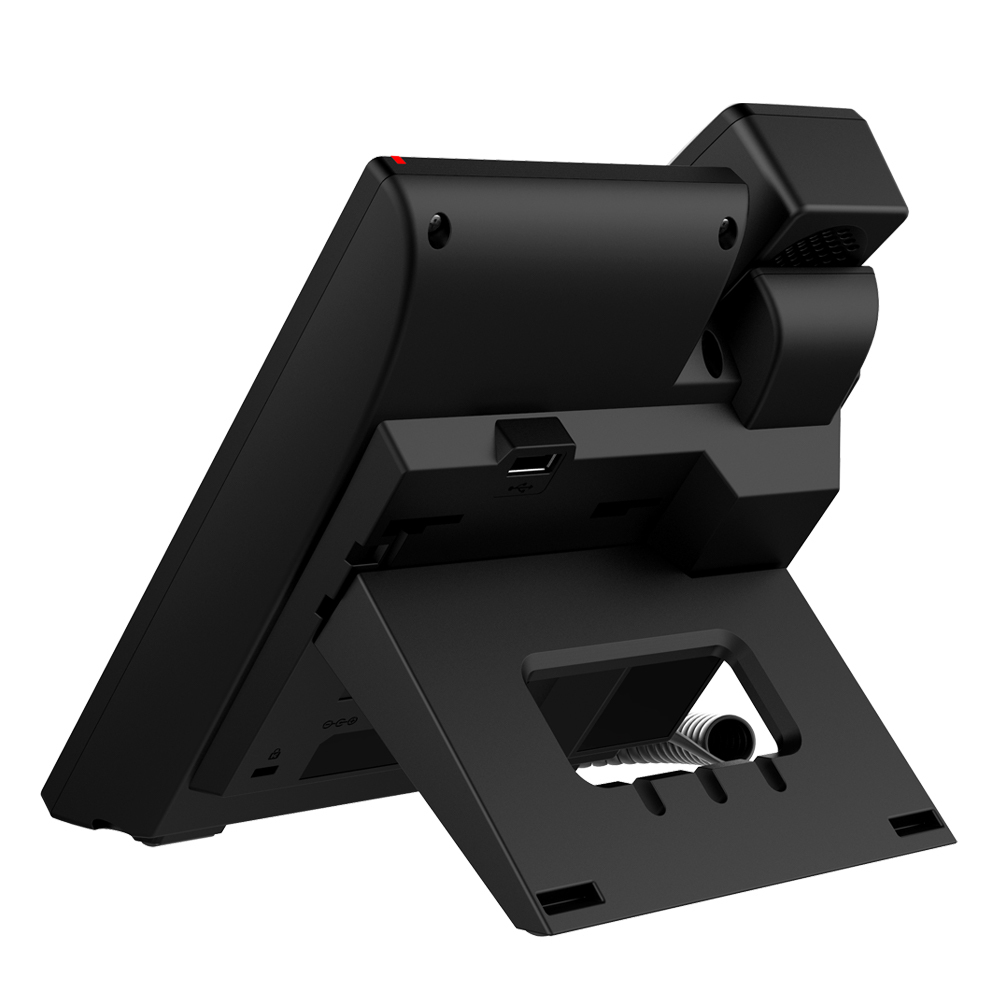

l Installation

• Desktop Stand
• Wall-mounted (need an additional wall hanging parts)

l Color: Black

l Device Dimensions:

• Desktop stand (angles 1: 45 degree): 181x175.75x184.4 mm
• Desktop stand (angles 2: 50 degree): 181x175.85x185.1 mm
• Wall-mounted: 181x115.43x208.75 mm

l Box Dimensions:283x210x73 mm

Detailed Description:

Upgrade Your Business Communication! The J4SG Enterprise IP Phone combines 12 SIP lines, Gigabit Ethernet, and Bluetooth 4.2 to power seamless, high-quality calls for demanding workplaces.

Key Features:
● 12 SIP Accounts: Manage multiple lines for teams or departments.
● Dual Gigabit Ports + PoE: Fast, clutter-free connectivity with Power over Ethernet.
● 6-Party Conference Calls: Host local meetings with crystal-clear HD audio (G.722/Opus).
● Bluetooth & EHS Support: Connect wireless headsets or EHS devices effortlessly.
● 35 DSS Keys: Programmable keys for speed dial, call transfer, or hot-desking.
● Wi-Fi Ready: Add a Wi-Fi dongle for wireless flexibility.

Why Choose J4SG?
→ HD Voice Quality: Full-duplex speakerphone and noise-canceling handset.
→ Customizable Display: 7 two-colored physical keys + 1 page key for quick access.
→ Enterprise Security: TLS/SRTP encryption for secure calls.
→ Easy Deployment: Plug-and-play setup with PoE or optional power adapter.

Perfect For:
● Busy call centers & offices
● Remote/hybrid teams needing reliable VoIP
● Conference rooms & executive desks
● Hospitality or healthcare communication hubs

Tech Specs:
Lines: 12 SIP accounts
Ports: Dual Gigabit Ethernet (PoE-in + LAN-out)
Audio: HD handset & speakerphone, Bluetooth 4.2
Display: 4.3-inch color LCD with adjustable stand (45°/50°)
Protocols: SIP, TLS, SRTP, LLDP

OEM Customization Options:
● Brand logos on device/web interface
● Custom packaging & labeling

Plug-and-Play | 24/7 Support | 1-Year Warranty

Need a Future-Proof Office Phone?
Includes free SIP setup guides & lifetime firmware updates.

Limited-Time Offer: Free Global Shipping!

Why This Phone Stands Out:
● Multi-Scene Adaptability: Desk, wall-mount, or conference-ready.
● Expandable DSS Keys: Up to 35 shortcuts for productivity.
● Energy Efficient: PoE reduces cable clutter and power costs.
