YX IPs 4-Port 4G IP Proxy Router with HTTP & SOCKS5 Proxy SMS Gateway

Core Proxy Capabilities

1. 4G Cellular IP Proxy: Real Carrier-Grade IP Anonymity

Key Highlights:

• Real residential/mobile IPs: IP addresses issued directly by telecom carriers, with higher trust levels and lower ban risk on websites and platforms compared to data center IPs.
• Port-level IP isolation: 4 independent proxy channels run simultaneously without interference, ideal for multi-account and multi-task parallel operations.
• Static & dynamic IP flexibility: Support for manual redial and automatic SIM switching to refresh IP addresses, adapting to scenarios requiring IP rotation.
• High anonymity: Masks your real local IP address to protect identity and avoid platform tracking.

2. HTTP & HTTPS Proxy: Optimized for Web & Business Systems

Key Highlights:

• Full protocol compatibility: Supports both HTTP and HTTPS encrypted proxy connections, ensuring secure data transmission for web browsing, form submission, and API requests.
• Port-independent configuration: Set up separate HTTP proxy services for each 4G port, with customizable port numbers and access credentials.
• User authentication support: Optional username/password verification to restrict proxy access and prevent unauthorized use.
• Wide software compatibility: Works seamlessly with all major browsers, web scraping frameworks, e-commerce tools, and marketing automation software that support HTTP proxy settings.

3. SOCKS5 Proxy: Universal Low-Latency Proxy for All Applications

Key Highlights:

• Full application support: Compatible with browsers, instant messaging tools, gaming clients, FTP transfers, streaming services, and custom development applications.
• Low latency & high throughput: Optimized cellular network forwarding delivers stable, low-latency connections ideal for real-time operations.
• Standard protocol compliance: Follows universal SOCKS5 protocol standards, with no need for custom adapters — works out of the box with all SOCKS5-compatible clients on Windows, macOS, Linux, and mobile systems.
• Configurable access control: Custom proxy port numbers and optional user/password authentication to secure your proxy service.

Step-by-Step Setup & Configuration Guide

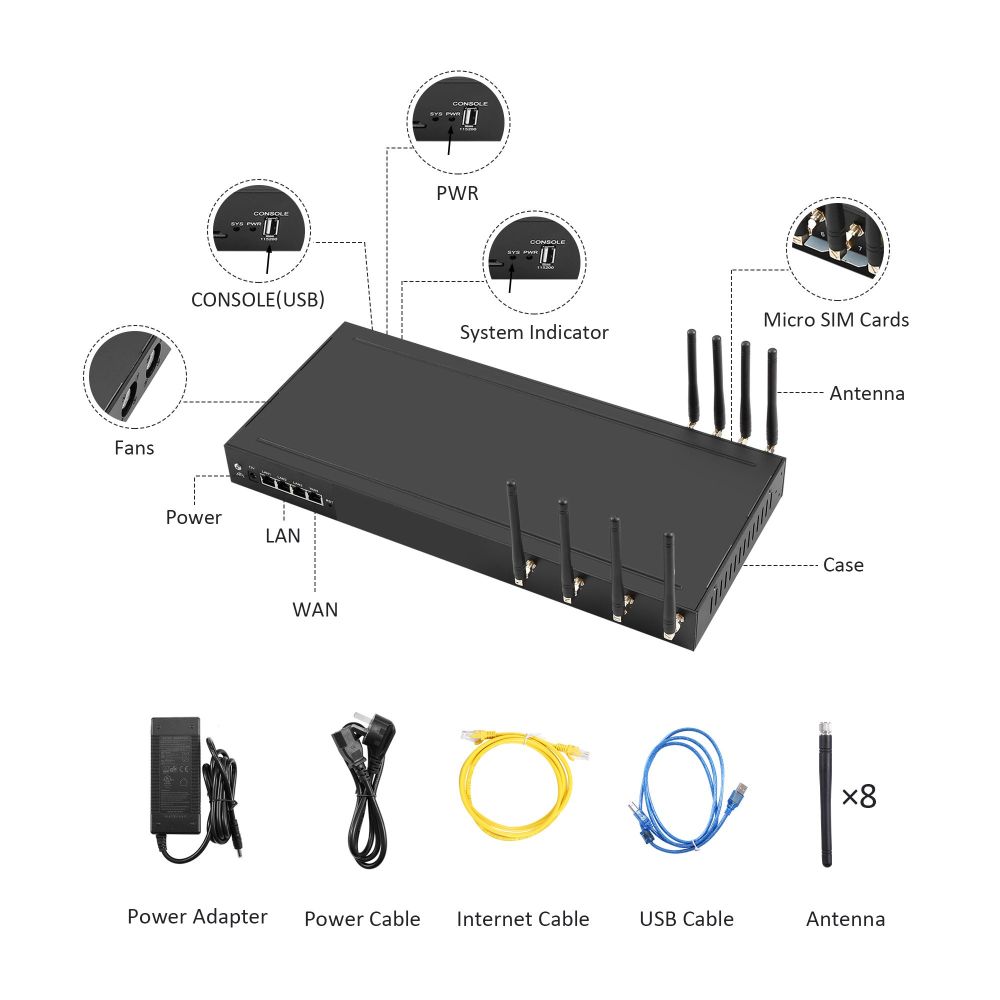

Part 1: Hardware Installation

Part 2: Web Interface Login

1. Ensure your computer is connected to the device's LAN network and set to obtain an IP address automatically (DHCP).
2. Open any web browser and enter the default management IP: 192.168.1.67 or 192.168.1.10
3. Log in with the default credentials:
   • Username: admin
   • Password: admin

   Security Tip: We strongly recommend changing the default admin password in System Settings > Admin immediately after your first login to protect device security.

Part 3: 4G Network APN Configuration (If Dial-Up Fails)

1. Navigate to Gateway Settings > APN Settings
2. Enter the correct APN, username, and password provided by your SIM operator.
3. Click Save & Apply to take effect. The device will reconnect to the cellular network.

Part 4: HTTP/HTTPS Proxy Setup

Part 5: SOCKS5 Proxy Setup

More Standout Features

1. Static & Dynamic IMEI Customization, Reduce Device Risk Control

• Manually enter a 14-digit IMEI prefix, and the 15th check digit will be generated automatically by the system.
• Support one-click batch copy of prefix to all ports, with auto-complete function to generate full valid IMEI numbers.
• Dynamic IMEI allows you to configure group initial value and quantity; IMEI changes automatically when switching SIM cards.
• Effectively reduce the probability of device fingerprint being identified by platforms, improving account survival rate for your business.

2. Smart SIM Card Management for 24/7 Unattended Operation

• Multi-condition SIM switch: Support multiple trigger conditions such as accumulated SMS failure, network registration failure, traffic over-limit, etc. The device automatically switches SIM cards when conditions are met.
• Custom lock duration: You can set the SIM card lock duration freely. 0 means no lock, -1 means permanent lock, flexibly controlling the SIM card usage rhythm.
• Auto USSD query: Automatically execute USSD commands to query balance, traffic and other information after switching cards, to keep track of SIM card status in real time.
• Precise traffic control: Support daily/monthly/total three-level traffic limit. The card will be locked automatically when the threshold is reached to avoid unexpected overcharge. Visual traffic statistics and one-click batch reset are available.

3. All-Round Remote O&M for Easy Cross-Location Management

• ETMS remote management: Built-in ETMS client. After configuring server parameters, you can remotely access the device backend through the ETMS system. It works normally even in NAT intranet environments, no public IP required for the device.
• SSH tunnel: Support SSH tunnel port forwarding for remote encrypted access to devices and intranet services.
• Complete log system: Provide system log and software log download, support custom log module and log file quantity for convenient troubleshooting and operation monitoring.
• Remote firmware upgrade: Support firmware import and upgrade via web interface, to update device functions remotely without on-site operation.

4. Network Security Protection for Stable Business Operation

• Built-in firewall function, supporting network zone division, port forwarding, and traffic rule configuration. You can customize network access policies according to your business needs.
• Support SMS filtering function. You can configure blacklist numbers and sensitive keywords to block spam SMS, avoid invalid SIM card resource occupation and reduce SIM card ban risk.
• Proxy account authentication mechanism to prevent proxy abuse and protect business data security.

Why Choose YX IPs 4-4 Proxy Router?

Call to Action

● 1-year warranty.

● Global shipping.

● Enterprise technical support.
