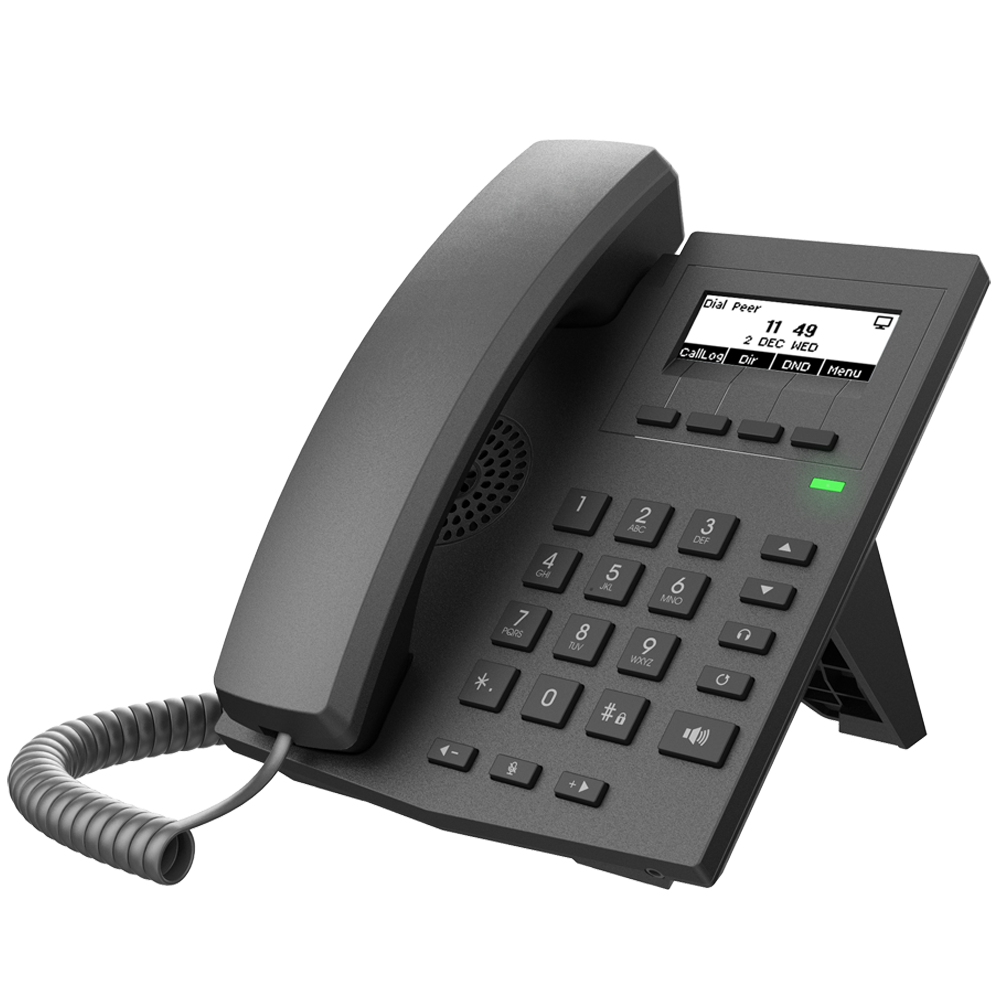

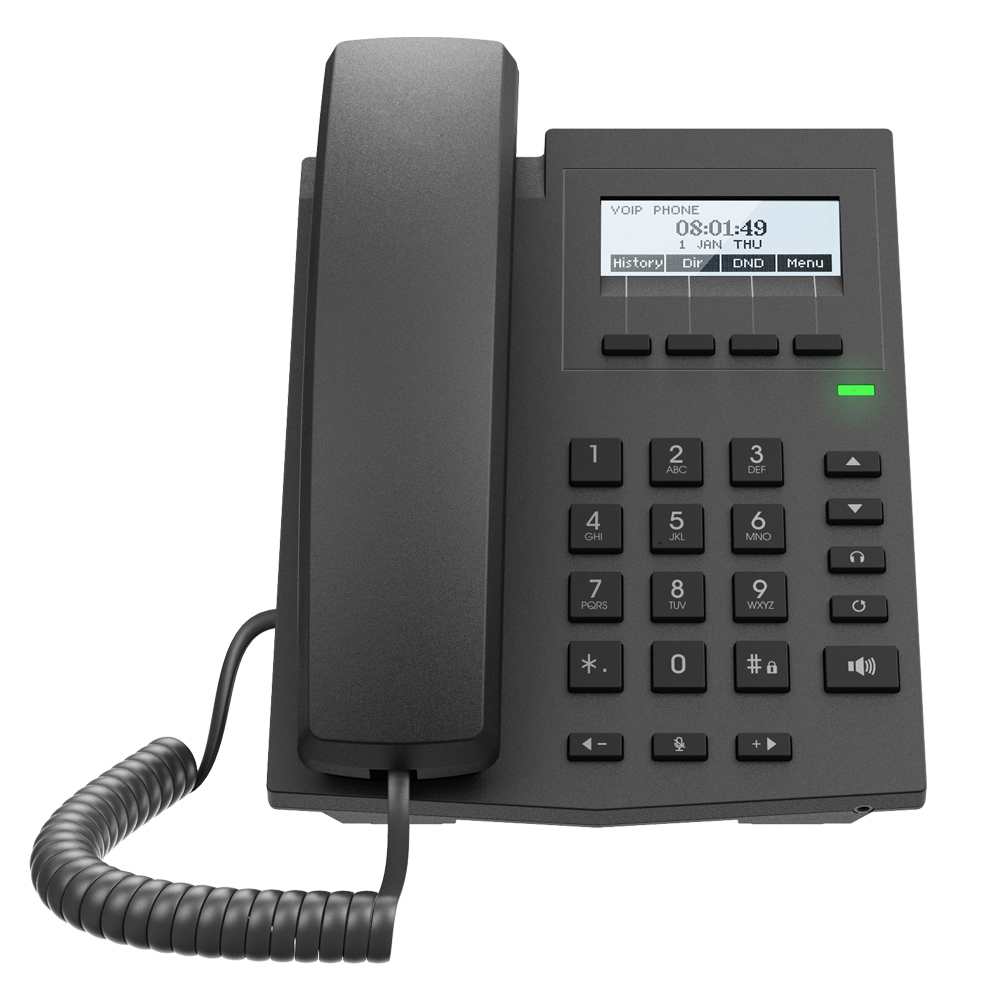

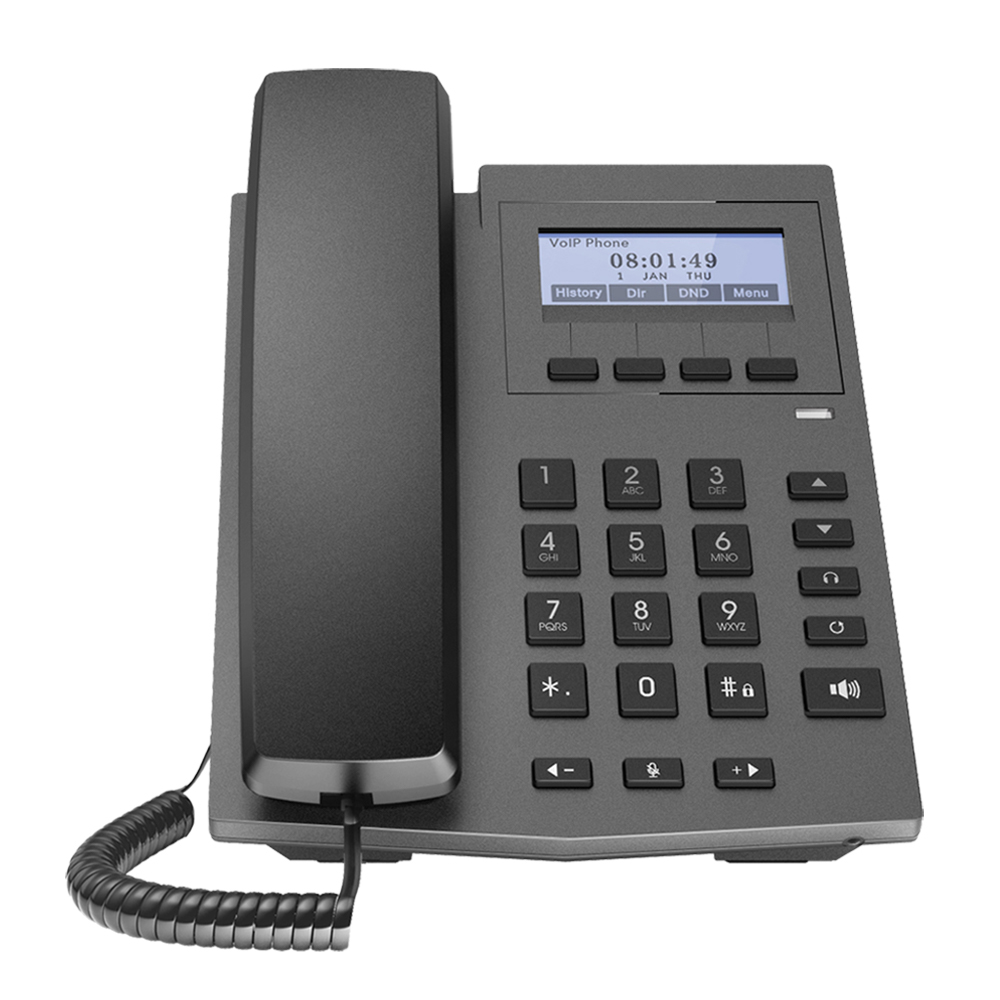

YX VOIP Phone X1P SIP 2 Lines Special Desktop Business IP Phone POE With Fast Ethernet VOIP Telephone

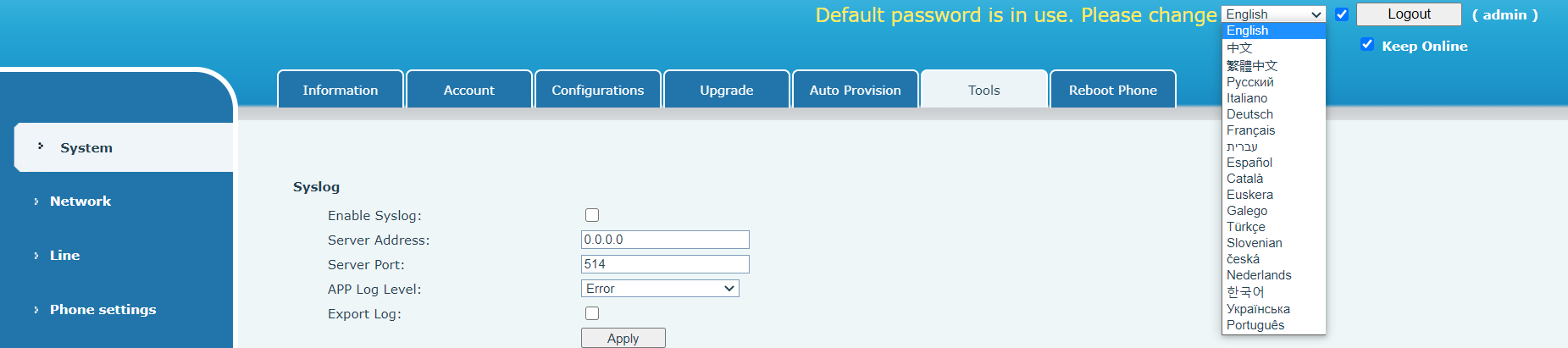

Language setting on Web page, Supports multiple languages

Generic

l 2SIP Lines

l POE Enabled

l Dot-matrix Screen

l Handset / Hands-free / Headset mode

l Desktop Stand

l Optional External Power Supply

PhoneFeatures

l Local Phonebook (500 entries)

l Remote Phonebook (XML/LDAP, 500 entries)

l Call logs (In/out/missed, 600 entries)

l Black/White List Call Filter

l Voice Message Waiting Indication (VMWI)

l Network Time Synchronization

l Support Recording (on Server)

l Action URL / Active URI

l UaCSTA

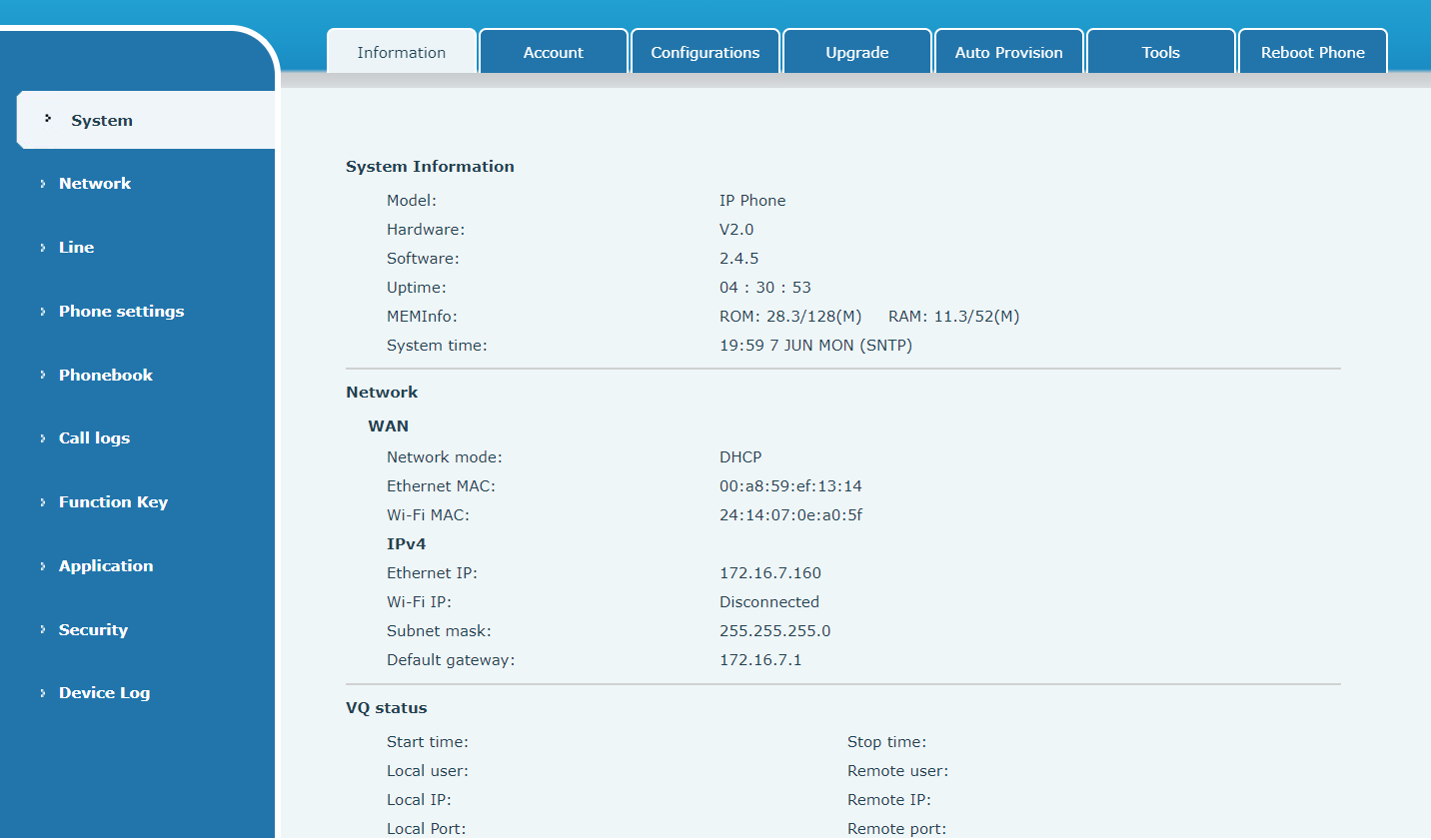

Display of Web Managers Phone Status Page

CallFeatures

l Call out /Answer / Reject

l Mute / Unmute (Microphone)

l Call Hold / Resume

l Call Waiting

l Intercom

l Caller ID Display

l Speed Dial

l Anonymous Call (Hide Caller ID)

l Call Forwarding (Always/Busy/No Answer)

l Call Transfer (Attended/Unattended)

l Call Parking/Pick-up (Depending on server)

l Redial/Auto-Redial

l Do-Not-Disturb(per line / per phone)

l Auto-Answering(per line)

l Voice Message (On server)

l Local 3-way Conference

l Hot Line

l Hot desking

Audio

l Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB

l Full-duplex Acoustic Echo Canceller (AEC)

l Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)

l Packet Loss Concealment (PLC)

l Dynamic Adaptive Jitter Buffer up to 300ms

l DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Network

l Physical: 10/100Mbps Ethernet, dual bridged port for PC bypass

l IP Configuration: Static IP / DHCP / PPPoE

l Network Access Control: 802.1x

l VPN: L2TP / OpenVPN

l VLAN

l QoS

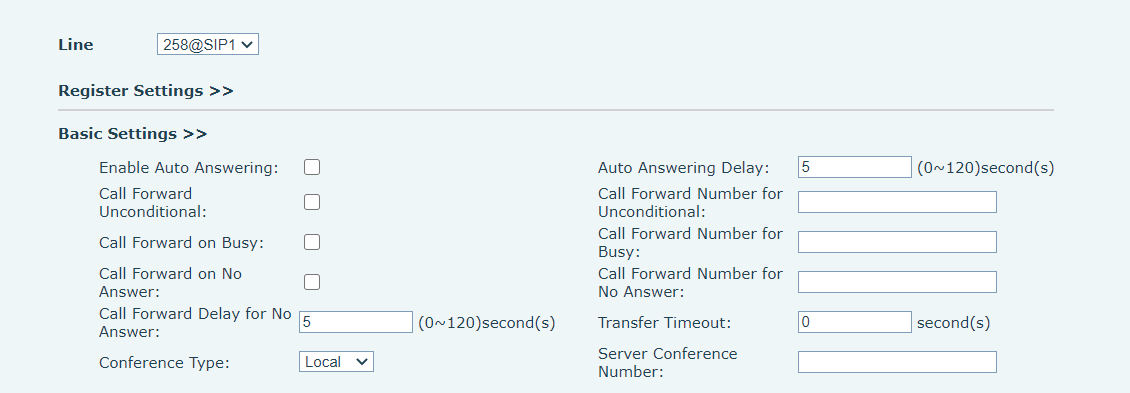

WEB interface Set call forward page display

Protocols

l SIP2.0 over UDP/TCP/TLS

l RTP/RTCP/SRTP

l STUN

l DHCP

l PPPoE

l 802.1x

l L2TP

l OpenVPN(Requires third-party app support)

l SNTP

l FTP/TFTP

l HTTP/HTTPS

l TR-069

Deployment & Management

l Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069

l Web Management Portal

l Web-based Packet Dump

l Configuration Export / Import

l Phonebook Import/Export

l Firmware Upgrade

l Syslog


SIP hotspot server configuration page display

Physical Specifications

l LCD x1:128x48 dot-matrixScreen without backlight

l Keypad: 24 keys, including

•  4 Soft-keys
•  4 Function keys (Up, Down, Headset, Redial)
•  12 Standard Phone Digits keys
•  2 Volume Control keys, Lower/Increase(Left/Right)
•  1Mute key
•  1 Hands-free key

l Standard RJ9 Handset Wire x1

l 1.5M CAT5 Ethernet Cable x1

l Back Rack x1

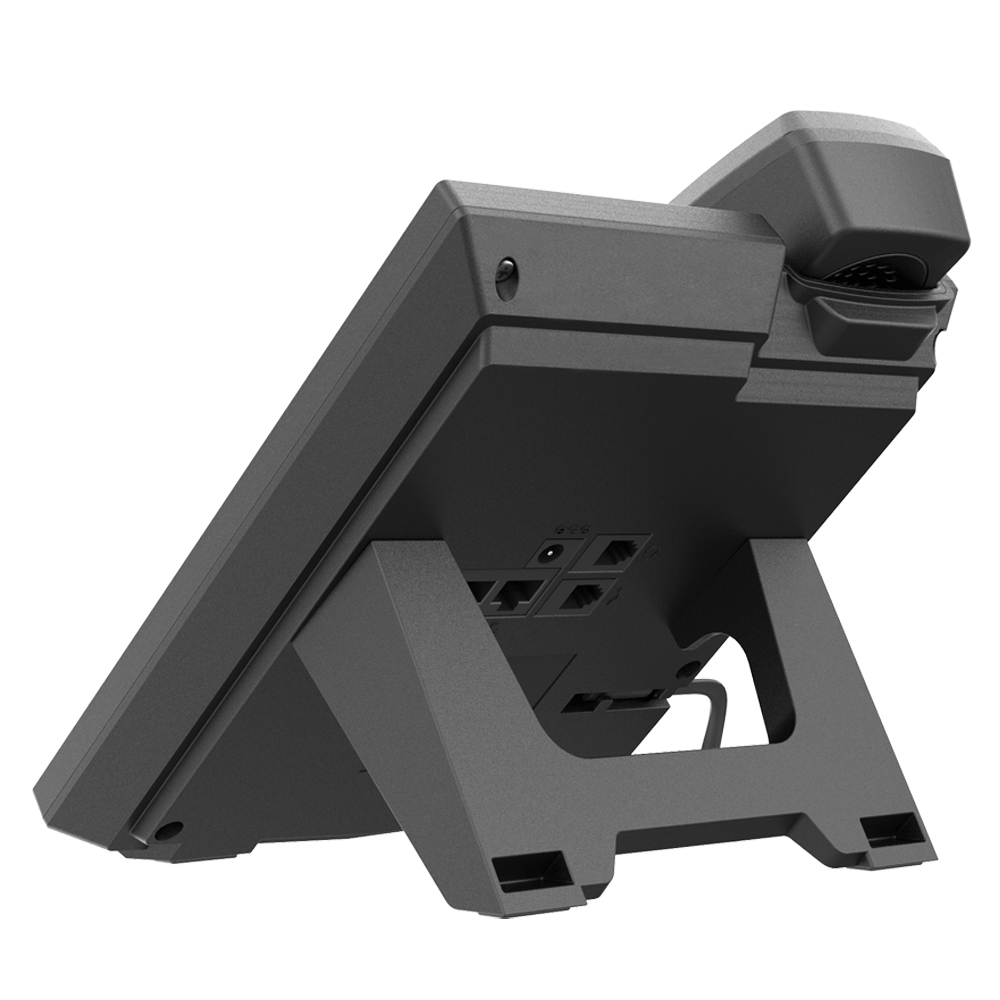

l RJ9 Port : Handset x1, Headphone x1

l RJ45 Port : Network x1,PC x1 (Bridged to Network)

l DC Power Input: 5V/0.6A

l Power Consumption: Idle 0.89W~1.2W Peak 1.81W~2.5W

l Working Temperature:0~40℃

l Working Humidity: 10~95%

l Installation: Desktop Stand

l Color: Black

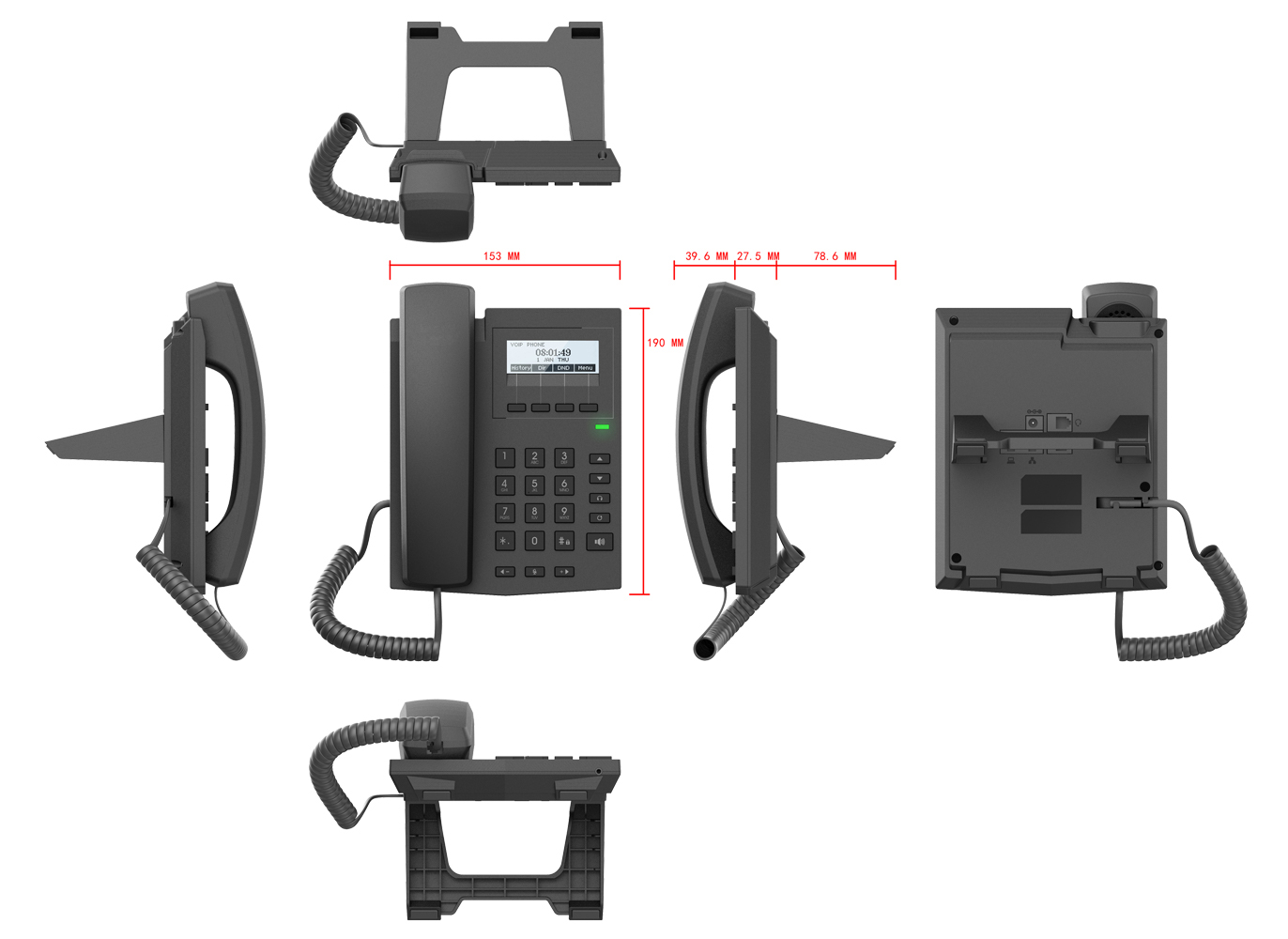

l Device Dimensions: 153x165.8x163.1mm

l Box Dimensions:250x205x66mm

Detailed Description:

The X1P Basic VoIP Phone combines sleek design with core features like 2 SIP lines, PoE support, and 3-way conferencing—ideal for cost-conscious users seeking reliable VoIP performance.

Key Features:
● 2 SIP Lines: Manage two simultaneous calls for small teams or departments.
● PoE Enabled: Reduce cable clutter with Power over Ethernet (adapter optional).
● 3-Way Conferencing: Host mini meetings with crisp HD audio.
● Plug-and-Play Setup: Works instantly with 3CX, Asterisk, BroadSoft, and more.
● Dot-Matrix Screen: Simple interface for call management and settings.

Why It’s a Smart Buy:
→ Budget-Friendly: Enterprise features at a fraction of the cost.
→ Compact & Stylish: Slim design fits any desk or workspace.
→ Flexible Connectivity: Handset, hands-free, or headset modes.

Perfect For:
● Small businesses & startups
● Home offices & remote workers
● Hospitality or retail counter communication
● Budget-friendly call centers

Tech Specs:
Lines: 2 SIP accounts
Ports: Fast Ethernet (10/100Mbps) + PoE support
Audio: HD handset, hands-free speaker, headset jack
Display: Dot-matrix LCD with backlight
Compatibility: 3CX, Asterisk, BroadSoft, Elastix, Zycoo

OEM Customization:
● Brand logos on device and web interface
● Custom packaging options

Easy Installation | 1-Year Warranty | 24/7 Support

Need a No-Fuss VoIP Solution?
Includes free SIP configuration guides and lifetime firmware updates.

Limited-Time Offer: Free Shipping Worldwide!

Why Choose X1P?
● Energy Efficient: PoE reduces power consumption.
● Space-Saving Design: Compact footprint for tight workspaces.
● Future-Proof: Compatible with most VoIP platforms.

Upgrade to Smart, Affordable Calling Today!

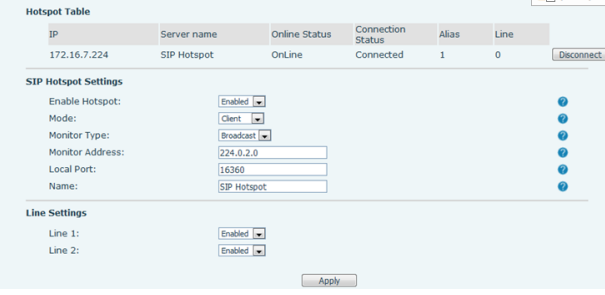

SIP hotspot client configuration page display
