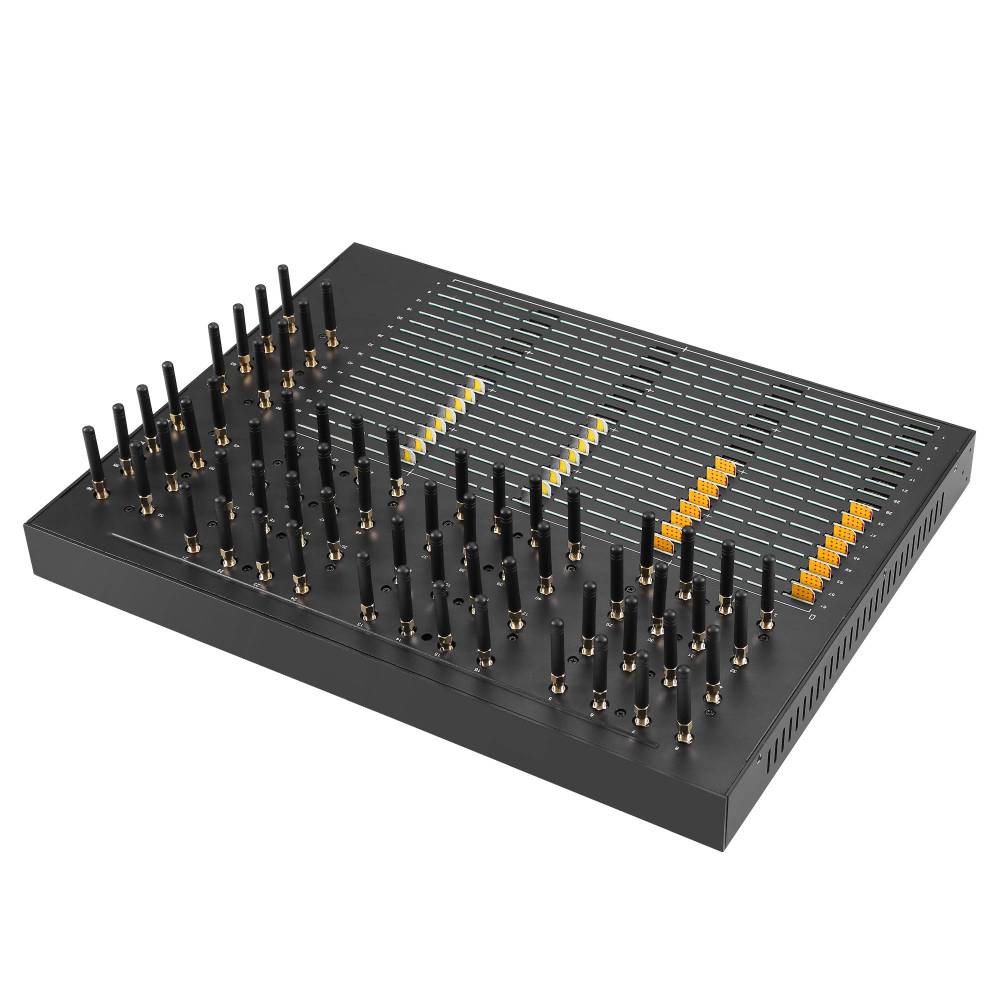

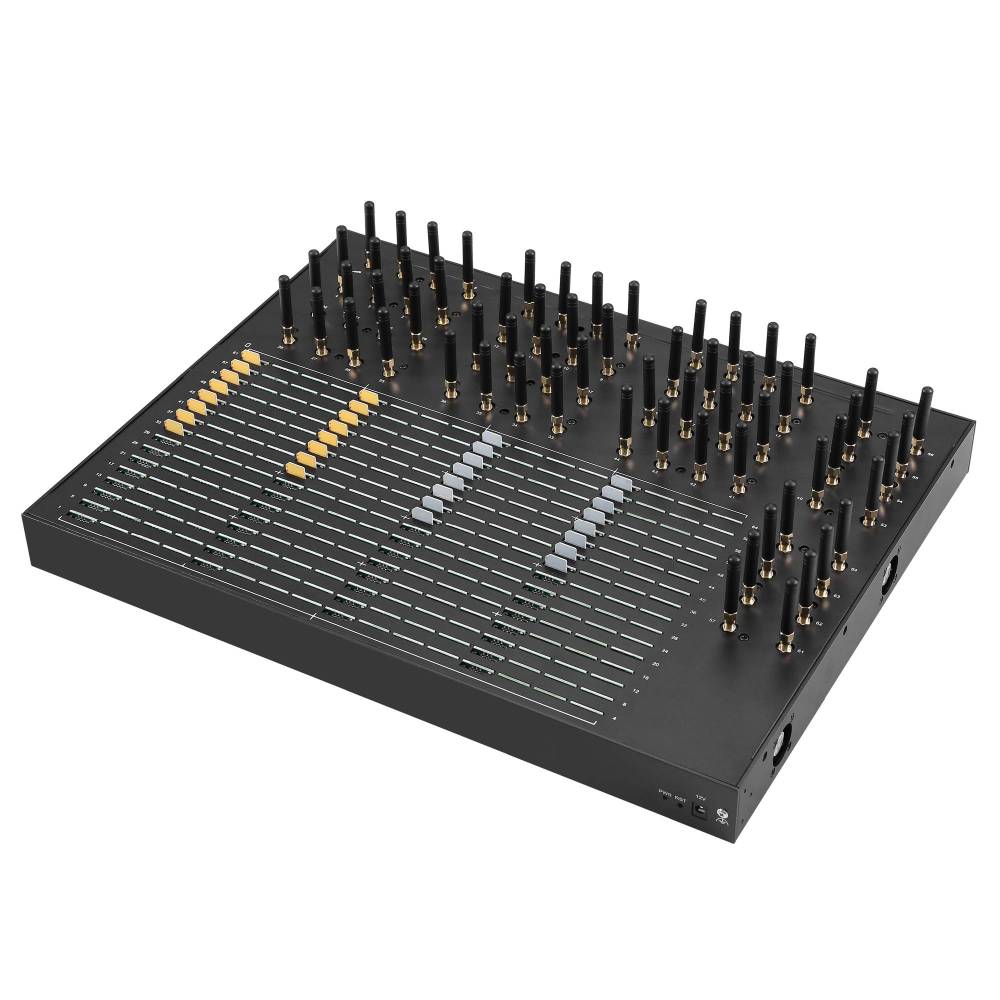

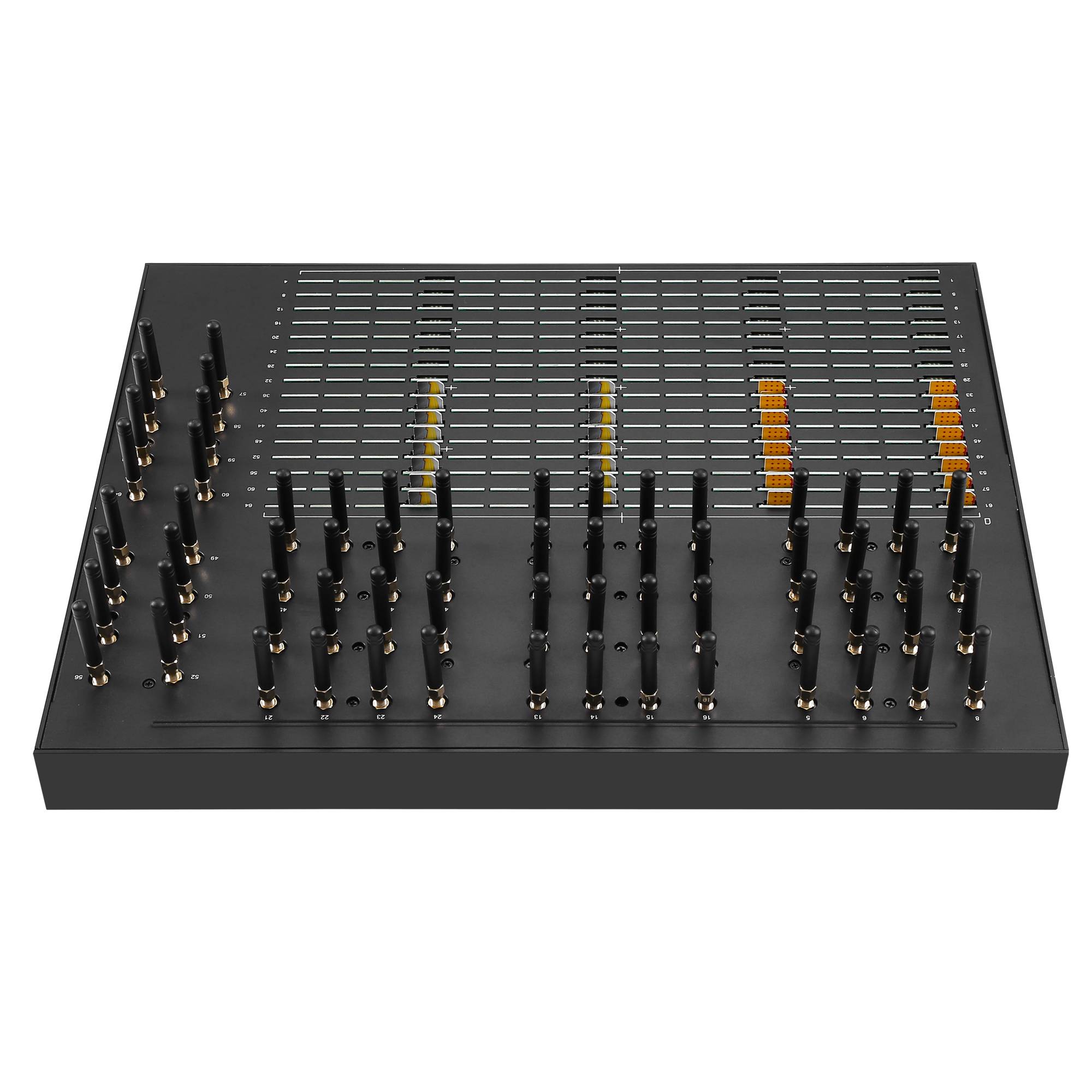

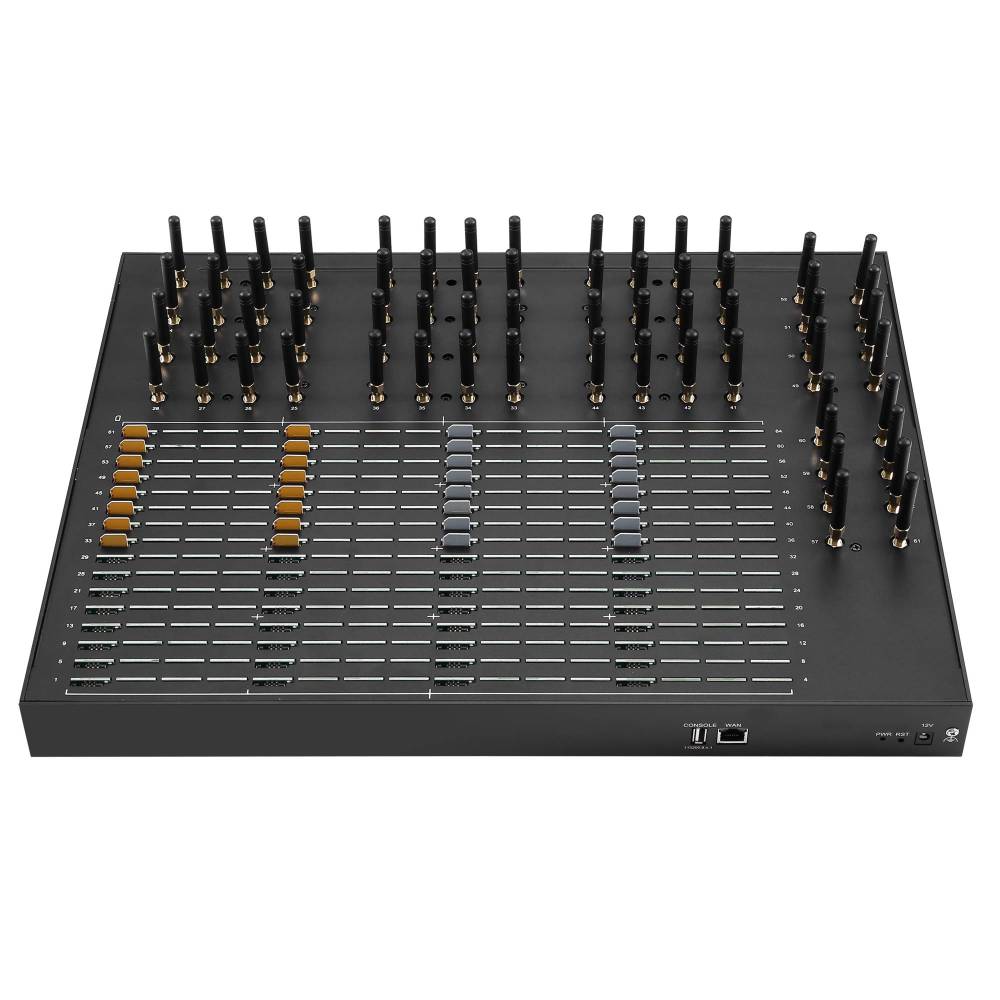

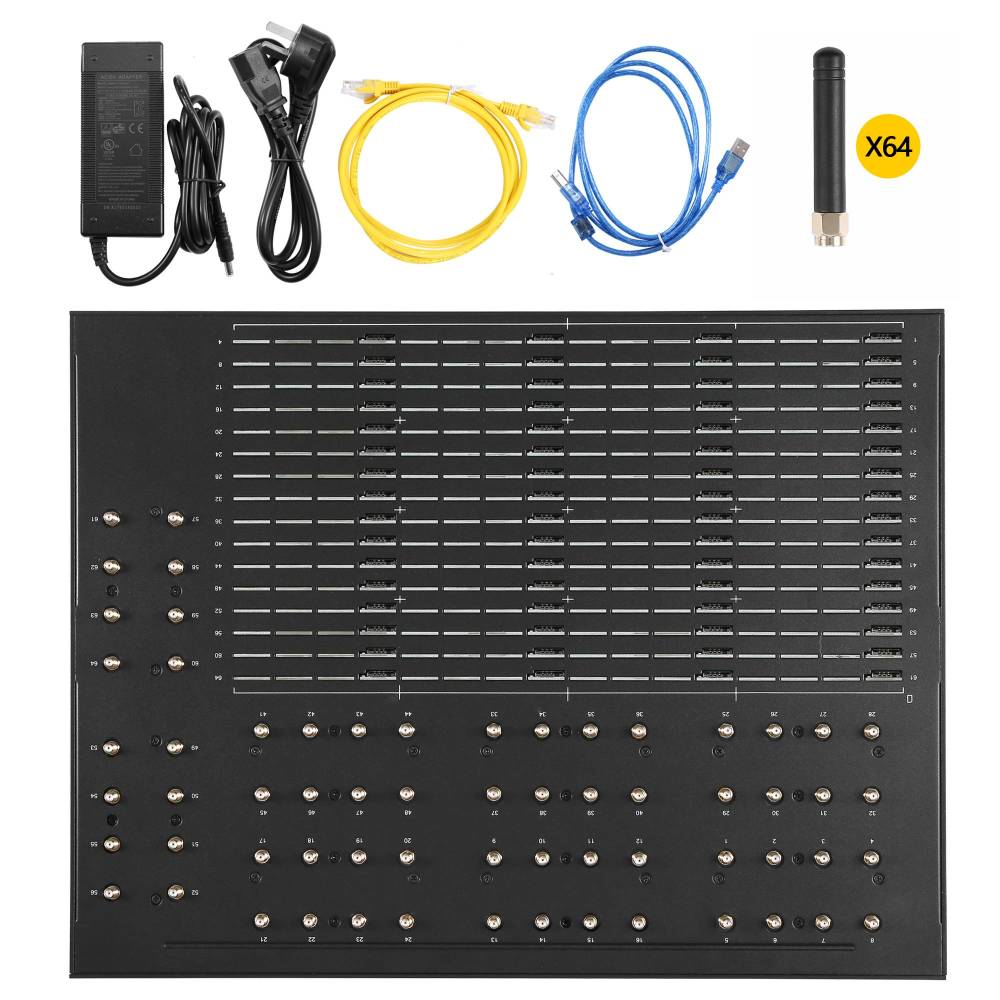

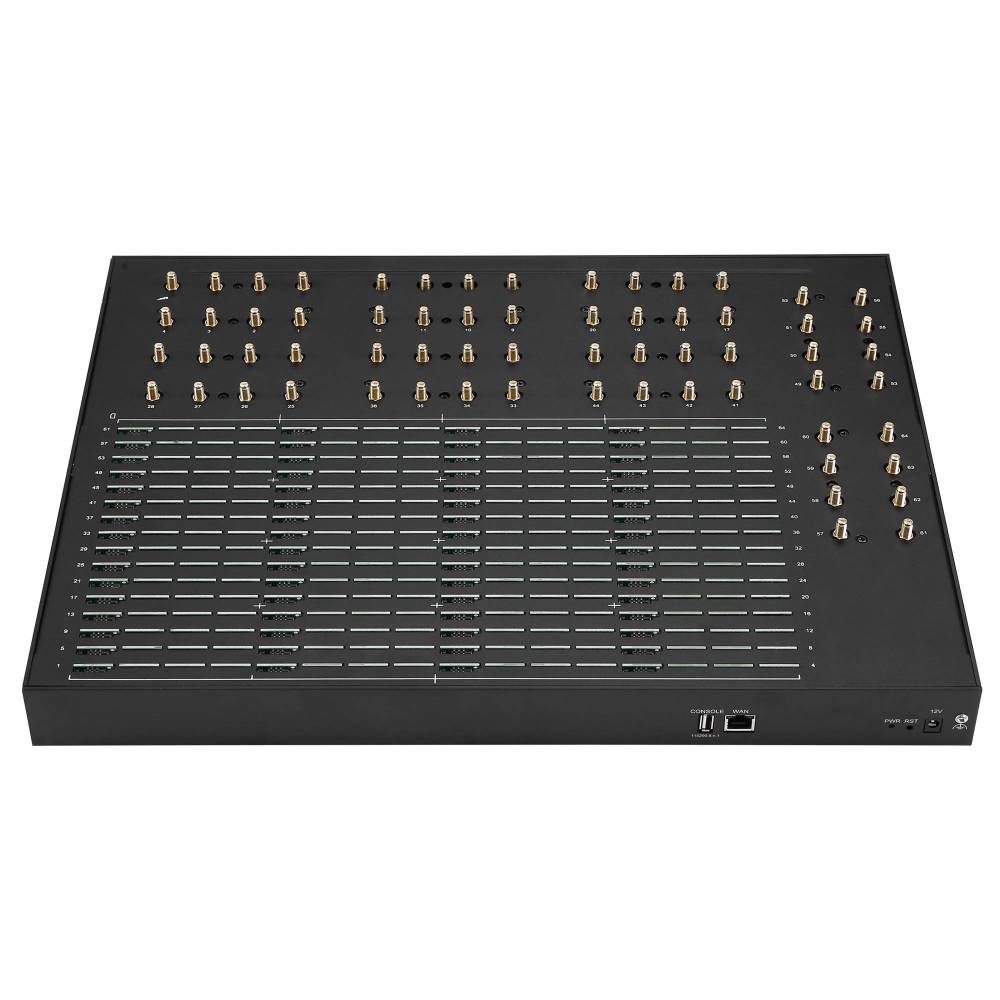

YX 4G 64 Port MoIP Gateway 64 SIM GSM Modem Sim Box Support SMS MMS 512 eSIM

Detailed Description:

Dominate Bulk SMS with Unmatched Scalability! This 64-Port 4G LTE Gateway powers 512 eSIM profiles (8 per port) and 64 physical SIMs, delivering unparalleled SMS throughput for high-demand operations in telecom, marketing, and IoT. It's an ideal solution for any business seeking a high-capacity sms gateway provider platform.

Key Features:

• 512 eSIM + 64 SIM Slots: For massive sms blaster campaigns or IoT data transmission at scale.

• 4G LTE Global Support: GSM/CDMA/WCDMA/LTE compatibility (confirm bands pre-order) ensures wide coverage with this enterprise SMS gateway.

• Auto-SIM Switching: GSM/CDMA/WCDMA/LTE compatibility (confirm bands pre-order) ensures wide coverage with this enterprise SMS gateway.

• SMPP 3.4 & API Ready: Fully compatible with CRMs, ERPs, or custom tools through robust sms gateway API integration.

• Plug-and-Play Setup: Ethernet/USB connectivity for instant deployment—perfect for free SMS gateway trials or production systems.

1. Core Capacity Rules
● Physical SIM Mode: 1 physical SIM slot per port, total 64 physical SIM cards; all eSIM profiles are disabled and cannot be used.
● eSIM Mode: Each port supports up to 8 eSIM profiles for cyclic use, reaching a maximum of 512 eSIM profiles across 64 ports; all physical SIM slots are locked and unavailable in this mode.
This device adopts 4G LTE full-band module (FDD/TDD LTE, backward compatible with global 2G GSM network) and maximize SMS/MMS transmission efficiency. It integrates full-featured bulk SMS, automated USSD, SMPP 3.4, open HTTP API, remote SIM Bank and eSIM lifecycle management functions. It is the ideal core hardware for global cross-border SMS aggregators, cloud eSIM service providers, large enterprise notification systems and IoT alarm platforms. The built-in web management panel supports multi-browser access (Chrome, Firefox, IE, Opera) for global operation teams.

2. Exclusive Dual Running Modes
The physical SIM and eSIM resources are completely independent and non-simultaneous — enabling one mode will automatically disable the other. The web page corner has a dedicated eSIM status indicator to identify the current mode intuitively:
2.1 Physical SIM Mode (Blue "eSIM" Label on Web Page)
Status Indicator: The word "eSIM" in the upper right corner of the web page shows Blue, meaning eSIM function is disabled.
Resource Configuration: Insert 1 physical SIM card into each of the 64 slots, total 64 physical SIMs for SMS/USSD services.
Hardware Status: All physical SIM slots are active; eSIM profile storage area is locked.
Applicable Scenarios: On-premises IDC computer rooms, local SMS business with fixed physical SIM cards, and scenarios requiring on-site SIM maintenance.
2.2 eSIM Mode (Green "eSIM" Label on Web Page)
Status Indicator: After enabling eSIM and rebooting, the "eSIM" label turns Green, meaning eSIM function is fully activated.
Resource Configuration: 8 eSIM profiles per port for cyclic scheduling, total 512 eSIM profiles; supports remote over-the-air (OTA) provisioning.
Hardware Status: All physical SIM slots are disabled; eSIM profiles are stored in the device’s local onboard chip.
Applicable Scenarios: Global remote deployment, cross-region SMS business, cloud eSIM pool operation, and scenarios that frequently replace operator numbers without physical SIM plugging.

3. Core Functional
 ● eSIM Management
（1）eSIM Activation & Provisioning: Extract LPA activation string from eSIM QR code (Format example: LPA:1$rsp-eu.simlessly.com$8DBE8D00EA45CC75249C90E2F), select target port & slot, paste the code and click Write; after success, green ICCID/EID will be displayed on the eSIM Status page.
（2）eSIM Modification & Deletion: After writing eSIM profiles, the "Write" button changes to "Delete"; delete old profiles and rewrite new LPA codes to switch eSIM remotely.
（3）Per-port 8 eSIM Scheduling: Configure automatic cyclic rotation for 8 eSIM profiles on a single port to disperse traffic and reduce blocking risk.
（4）eSIM Status Monitoring: Real-time view EID, ICCID, online status and signal of all 512 eSIM profiles on the dedicated status page.
Note: eSIM OTA activation requires temporary network access; after successful provisioning, eSIM can work 100% purely offline.
● Powerful Bulk SMS & MMS System
（1）Dual SMS Encoding: Support PDU & TXT global standard formats, compatible with all global carrier SMS centers.
（2）Diversified Sending Modes: Instant bulk blast, timed scheduled SMS, conditional trigger sending (trigger by accumulated SMS / consecutive failed SMS); single SMS supports up to 300 ASCII characters, multiple recipients separated by semicolons.
（3）Multi-path SMS Forwarding: 4 mainstream forwarding protocols: SMS→HTTP (POST/GET), SMS→Email, SMS→SIP, SMS→GSM mobile number.
（4）SMS Control & Filter: Set daily/monthly/total SMS quota for each physical SIM/eSIM; custom number prefix blacklist and sensitive keyword filter to block spam.
（5）Full MMS Support: Custom MMSC, MMS Proxy and port per carrier; max 5 attachments (300KB each), support bulk MMS sending via web or API.
（6）SMPP 3.4 Dual Mode: Work as SMPP Client (connect upper SMS platform) or SMPP Server (accept third-party access); support delivery report and custom failed SMS retry rules.
● Automated USSD & AT Command Management
（1）Manual Batch USSD: Select any ports to send USSD commands in bulk for balance inquiry, package checking and service activation.
（2）Auto USSD Trigger: Three trigger rules: fixed cycle timing, accumulated SMS volume, custom time period; automatically extract balance data from USSD replies and display on the dashboard.
（3）PIN Management: Bulk PIN unlock for locked physical SIM/eSIM via web panel.
（4）AT Command Support: Built-in AT command terminal for device and card debugging.
● Intelligent Anti-block & Automatic Rules
Over 8 built-in auto-switch/lock policies applicable to both physical SIM and eSIM:
（1）SMS-based triggers: Accumulated SMS count, consecutive failed SMS, inbound warning SMS with keywords, SMS module error codes.
（2）Time-based triggers: Max continuous online duration limit.
（3）Port Inter-Call Keep-alive: Periodic internal dummy SMS between ports to simulate normal user behavior and avoid operator risk control.
（4）Custom lock duration: 0 (no lock) / custom seconds / -1 (permanent lock until replacement/rewrite).
● IMEI Customization
Support independent IMEI configuration for physical SIM and eSIM:
（1）Fixed IMEI: Manually input 15-digit IMEI (system auto-completes the check digit).
（2）Dynamic IMEI Pool: Define starting IMEI and batch quantity; device randomly selects IMEI when switching cards/profiles.
● Remote SIM Bank & Network Functions
（1）SIM Pool Docking: Native support for remote SIM Bank, active/passive SIM allocation modes, switch UDP/TCP for cross-border unstable networks.
（2）Network Protocols: Support Static IP, DHCP, PPPoE, PPTP VPN for NAT traversal.
（3）Remote Management: ERMS/ETMS remote cloud management, SNMP protocol support.
● System Management
Multi-user & role permission division, configuration backup/restore, remote/local firmware upgrade, log export and network packet capture tools.

↓ Platform admin panel page display

you can see that the "eSIM" text in the upper right corner turns green, indicating that the eSIM function of the device has been enabled.

4. Step-by-Step Operation Guide
Step 1 Physical Hardware Installation
（1）Install 64 4G antennas on corresponding antenna ports;
（2）SIM Mode: Insert physical SIM cards into 64 slots (skip this step for pure eSIM deployment);
（3）Connect RJ45 cable from WAN port to router/switch, connect PC to the same LAN;
（4）Plug in power adapter and power on, check power LED steady ON.
Step 2 PC Configuration & Web Login
（1）Set PC IPv4: IP = 192.168.X, Subnet Mask = 255.255.0;
（2）Open Chrome/Firefox, visit http://192.168.1.10;
（3）Default account: root, Password: root (modify password for security after first login).
Step 3 Mode Switch (SIM ↔ eSIM)
Switch from Physical SIM Mode (Blue eSIM) to eSIM Mode
（1）Navigate to Gateway Settings > eSIM > eSIM Settings;
（2）Select Enable in Basic Settings → Click Submit;
（3）Go to System > Save & Reboot;
（4）After reboot, the top-right "eSIM" label turns Green (eSIM mode activated, physical SIM slots locked).
Switch from eSIM Mode (Green eSIM) to Physical SIM Mode
（1）Enter eSIM Settings, select Disable → Submit;
（2）Save configuration and reboot;
（3）Label turns Blue, physical SIM slots recover availability, eSIM profiles are disabled.
Step 4 eSIM Profile Activation (eSIM Mode Only)
（1）Extract LPA activation code from eSIM QR code;
（2）On eSIM Settings page, select target port & slot, paste activation code → Click Write;
（3）Check eSIM Status page: Green ICCID/EID means activation completed and ready for use;
（4）To replace eSIM: Click Delete to clear old profile, then rewrite new LPA code.
Step 5 Business Configuration
（1）Network Settings: Select Static/DHCP/PPPoE according to local network; enable PPTP VPN for cross-border business if needed.
（2）SMS Settings: Fill carrier SMS center number, set sending interval and forwarding rules.
（3）USSD Settings: Input carrier balance inquiry commands and keyword rules for auto balance parsing.
（4）Automation Rules: Enable anti-block policies (SMS count, online time etc.).
（5）SMPP/API: Configure SMPP client/server parameters or reserve HTTP API port for secondary development.
（6）Final Save & Reboot to apply all settings.

5. Application Scenarios
5.1 Cross-border OTP & Verification SMS Platform
Use eSIM Mode for global remote deployment: remotely manage 512 eSIM profiles without on-site SIM replacement; dock SaaS OTP systems via SMPP/HTTP API, realize 24/7 automatic verification SMS delivery.
5.2 Large-scale Bulk SMS/MMS Marketing
Choose according to deployment environment: On-site IDC uses Physical SIM Mode (64 SIM); multi-region distributed business adopts 512 eSIM Mode. Combine intelligent SIM/eSIM rotation and anti-block rules to reduce card blocking rate.
5.3 Cloud eSIM Pool Operation
Match with SIM Bank and eSIM RSP server to build a three-layer resource pool (Local Physical SIM + 512 eSIM + Remote SIM Bank), dynamically allocate resources based on real-time SMS traffic.
5.4 Enterprise & Institutional Notification System
Large groups, banks and logistics companies deploy the gateway in Physical SIM Mode in internal LAN; connect enterprise ERP/CRM via HTTP API to send order, bill and logistics alert SMS.
5.5 Industrial IoT Alarm System
Work in Pure Offline Mode (WAN disconnected): Use physical SIM/eSIM to send equipment fault MMS/SMS alarms; remotely send USSD via intranet API to query SIM package and balance.
