Home > IP proxy > YX IPs 16 Port 16 sim 4G LTE Mobile IP Proxy | HTTP, SOCKS5, SMPP, IMEI Change, USSD, SMS

1/1

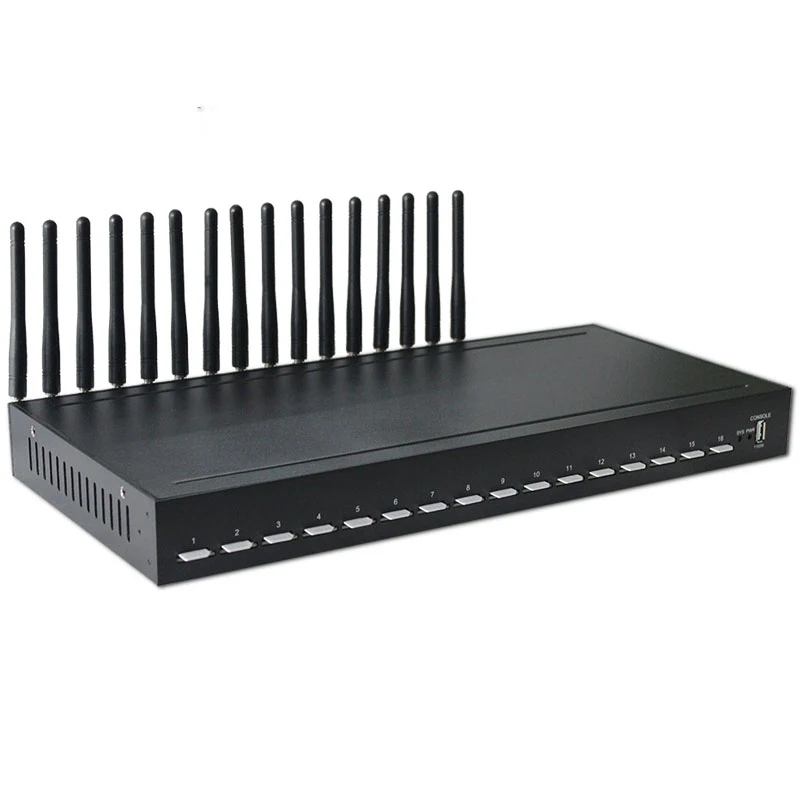

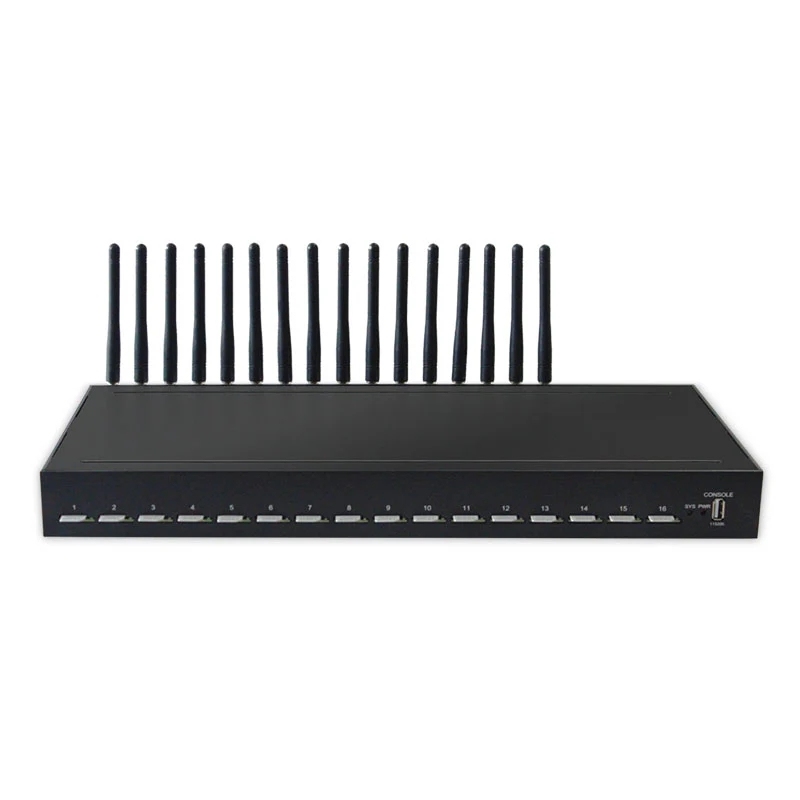

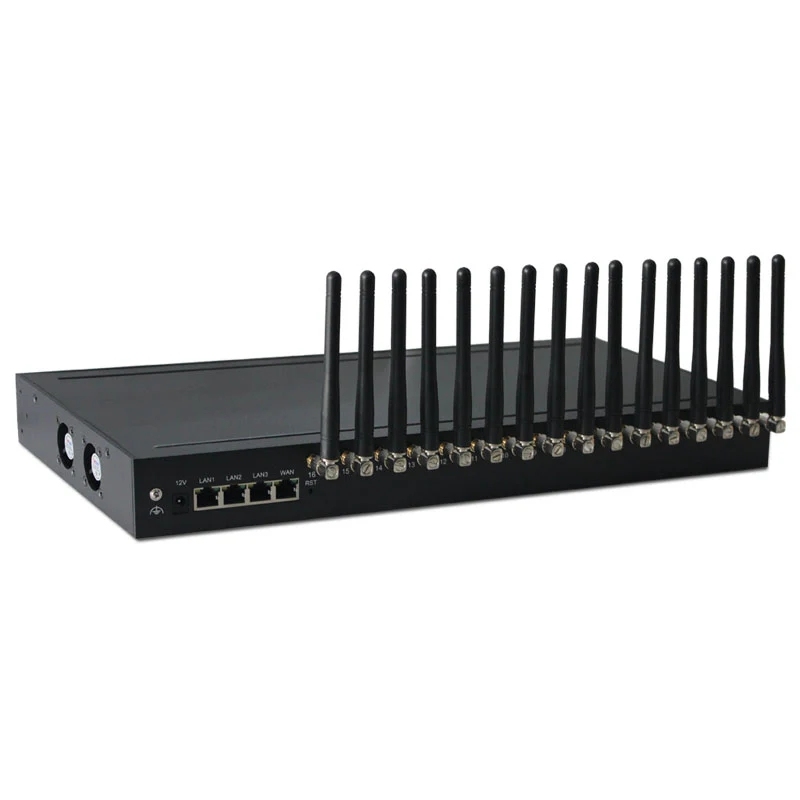

YX IPs 16 Port 16 sim 4G LTE Mobile IP Proxy | HTTP, SOCKS5, SMPP, IMEI Change, USSD, SMS

Name: YX IPs 16 Port 16 sim 4G LTE Mobile IP Proxy | HTTP, SOCKS5, SMPP, IMEI Change, USSD, SMS
Brand: YX SHOP
Price: 1380 USD
Availability: InStock
Rating: 5 (1 reviews)

YX IPs 16-16 is an industrial-grade 16-port 4G LTE mobile IP proxy gateway, Each port works independently with a separate mobile IP address, supporting native HTTP & SOCKS5 dual-proxy, real 4G mobile IP pool, SIM hot-swap, intelligent IP rotation, VPN/SSH tunnel, and enterprise traffic control.
Ideal for anti-detection web scraping, SEO monitoring, social media multi-account management, ad verification, and cross-border data collection.

● Supports HTTP and SOCKS5 dual proxy protocols
● 16 independent channels mobile IPs run at the same time
● Smart control, auto locks SIM to prevent extra charges
● Web management page, easy to set up SIM bulk sms
● IMEI change and USSD query, convenient for management
● ETMS remote access, manage and monitor your device

$1,380.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

Save $1.00 for each $100.00 spent

Please select the information you want X

Ports and SIM Slots:

IPs 16 port 16 sim (SMS)
MODEL:

EC25 (4G Region Specific Global Coverage)
Price Tier:

1 Unit Price (Tip: Qty 1 | Purchase One)

2+ Units Price (Tip: Min Qty 2 | No Shipment below 2)

Quantity:

Add to Favorites

1/1

Description
Frequency band
Package

Brand Name	YX
Number of Channels	16 channels 16 SIM slots
Network	4G LTE: Include 4G LTE/3G WCDMA/2G GSM
Frequency	4G: 700-2700Mhz(Please refer to the "Frequency Band" interface for specific information)
Function	TCP/IP/DHCP/ SOCKS5 Proxy/HTTP Proxy/SMPP/IMEI/USSD/API/SMS
SMS Specification	SMPP3.4, HTTP, API, Bulk send and receive SMS
Proxy Protocols	HTTP (20801–20816), SOCKS5 (10801–10816)
Management	Web UI, HTTP API, ETMS cloud
LED	16 groups of card online and running status indicator
Power Supply	DC 12V 5A, AC 100–240V
Operating Environment	Operating temperature: 0 - 50ºC Operating humidity: 10 – 90%RH
Warranty	12 Months
Support	With instruction manual and technical support (Also has SMS traffic services, please contact us)
Shipping method	Support DHL, UPS, FEDEX, EMS, 4PX Cainiao standard logistics and dedicated lines (some countries have dedicated lines logistics, Specific consultation with customer service) Tip: (1) Express delivery is faster than dedicated lines, but customers need to handle customs clearance and tax payment, and there will be logistics trajectory updates throughout the process. (2) Dedicated line logistics is slower, but includes customs clearance and tax payment, and is delivered directly to the home. The logistics trajectory updates will only be available after the package arrives at customs clearance and is handed over to the local logistics provider.
Payment method	Support payment methods such as USDT, PayPal, credit card, TT, etc (Pay with USDT and there are no additional transaction fees, so 3% discount on the product price is given) Please consult customer service for USDT address,Other payment methods can be redirected to the checkout page for online payment
Ordering Process	Payment for the product you need to order, we will arrange for stock testing after confirming the accuracy of the delivery information with you. We expect to arrange shipment within 2 days and provide you with package picture and logistics tracking number for tracking. Customer service will send message to remind you of tax payment and logistics delivery. If you need technical support after receiving the goods, please leave a message to our customer service personnel, and we will arrange for a technician to assist
Customer service contact information	Whatsapp: +8615220722893 Emai: yx@yxinternet.com Telegram: @YXwendy Teams: yuexun@yx19999.net

Product Overview

The YX 16 Port 4G LTE IP Proxy Gateway (YX IPs 16-16) is a professional multi-WAN fusion communication device engineered exclusively for high-anonymity, anti-detection mobile proxy scenarios. It integrates 16 independent 4G LTE ports with 16 dedicated SIM slots (1 SIM/port), delivering a pool of 16 genuine carrier-assigned 4G mobile IPs—no shared data-center IPs, no virtual IPs.

As a dual-protocol proxy hub, it natively supports HTTP (20801–20816) and SOCKS5 (10801–10816) parallel operation, with built-in intelligent IP rotation, SIM hot-swap, and enterprise-grade traffic/firewall controls. Different from ordinary routers, it is a proxy-dedicated industrial gateway that combines multi-WAN fusion, real mobile fingerprint, and remote management, perfectly solving anti-blocking, anonymity, and stability pain points for large-scale proxy tasks.

Core Novelty: 100% Real Mobile IPs (Not Data-Center) — Each IP comes from genuine cellular carriers, matching real user behavior for 99% anti-block success.

Core function

1. 16 Independent 4G LTE Mobile IP Pool

16 isolated 4G ports + 16 SIM slots, each port outputs a unique real 4G mobile IP assigned by cellular carriers. No shared IP resources, 100% independent network environment, effectively avoiding IP association and anti-blocking risks.

2. Native HTTP & SOCKS5 Dual-Protocol Parallel

HTTP Proxy: Default ports 20801–20816, supports HTTP/HTTPS requests, ideal for web scraping, SEO crawling, API testing.
SOCKS5 Proxy: Default ports 10801–10816, supports TCP/UDP full traffic, perfect for social media multi-account, gaming, encrypted data transmission.
Simultaneous dual-protocol operation, one device meets all proxy scenario needs.

3. Intelligent IP Rotation & Hot-Swap

Time-Based Rotation: Auto-switch IP at 5–60 minutes, customizable cycle.
Request-Based Rotation: Rotate IP per session/batch requests.
One-Click IP Reconnect: Manual/API-triggered 4G redial for new IP.
SIM Hot-Swap: Replace SIMs without power off, no service interruption.

4. Enterprise-Grade Security & Control

IP Black/White List: Restrict proxy access, prevent unauthorized use.
Traffic Quota Control: Per-port daily/monthly traffic limits, avoid overconsumption.
SYN-Flood Defense: Anti-DDoS protection for stable proxy operation.
IMEI Customization: Modify device IDs for enhanced anonymity.

5. Multi-WAN & VPN/SSH Tunnel Support

Multi-WAN Fusion: 4G + Ethernet dual backup, auto-failover for network stability.
PPTP/OpenVPN: Encrypted proxy traffic, cross-region network access.
SSH Reverse Tunnel: Intranet penetration, remote proxy management.

6. Web + HTTP API Remote Management

Built-In Web UI: Real-time port status, IP info, traffic statistics, rotation logs.
Full HTTP API: Remote IP rotation, status query, config backup/restore.
Batch Management: Configure 16 ports in one click, reduce operation cost.

7. Industrial Hardware Stability

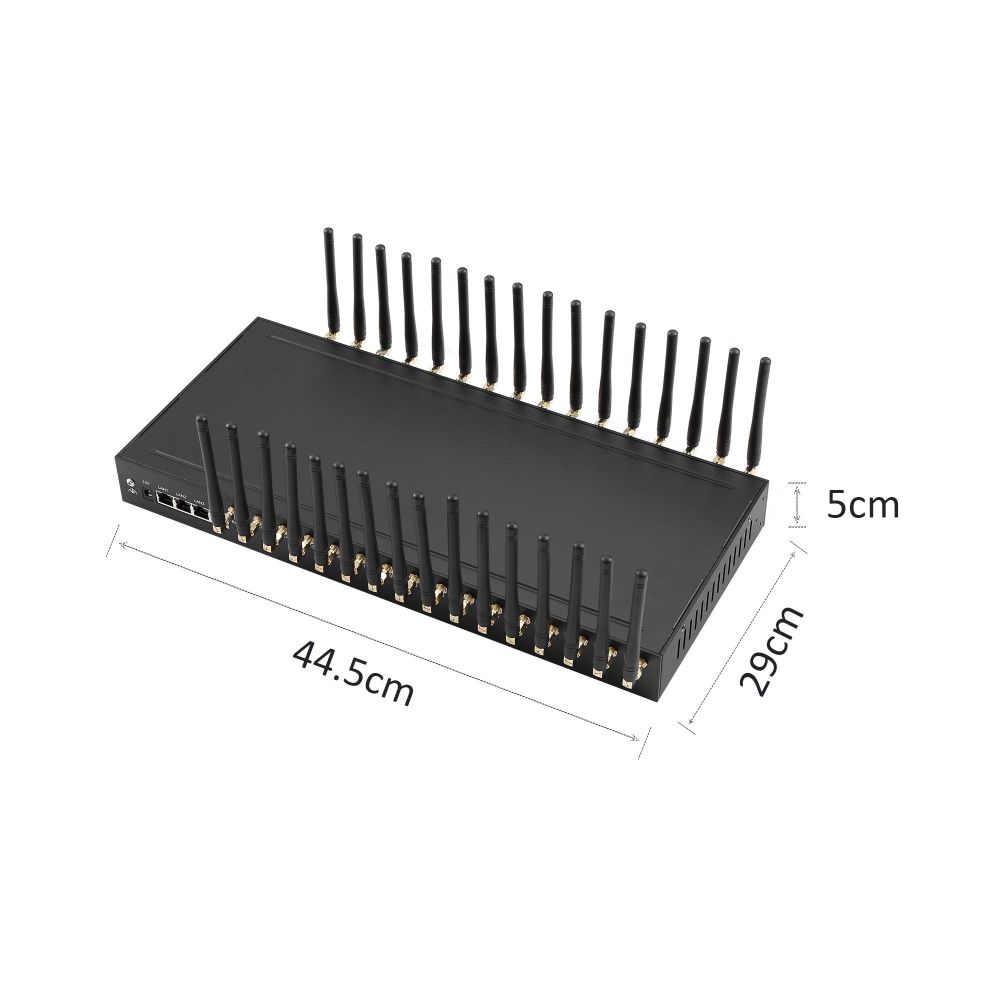

Rack-Mountable Chassis: Standard 19-inch, space-saving for data centers.
DC 12V 5A Power: AC 100–240V wide voltage, stable operation.
0°C–50°C Industrial Temp: Adapt to harsh environments, 24/7 non-stop.

Step-by-Step Installation & Configuration

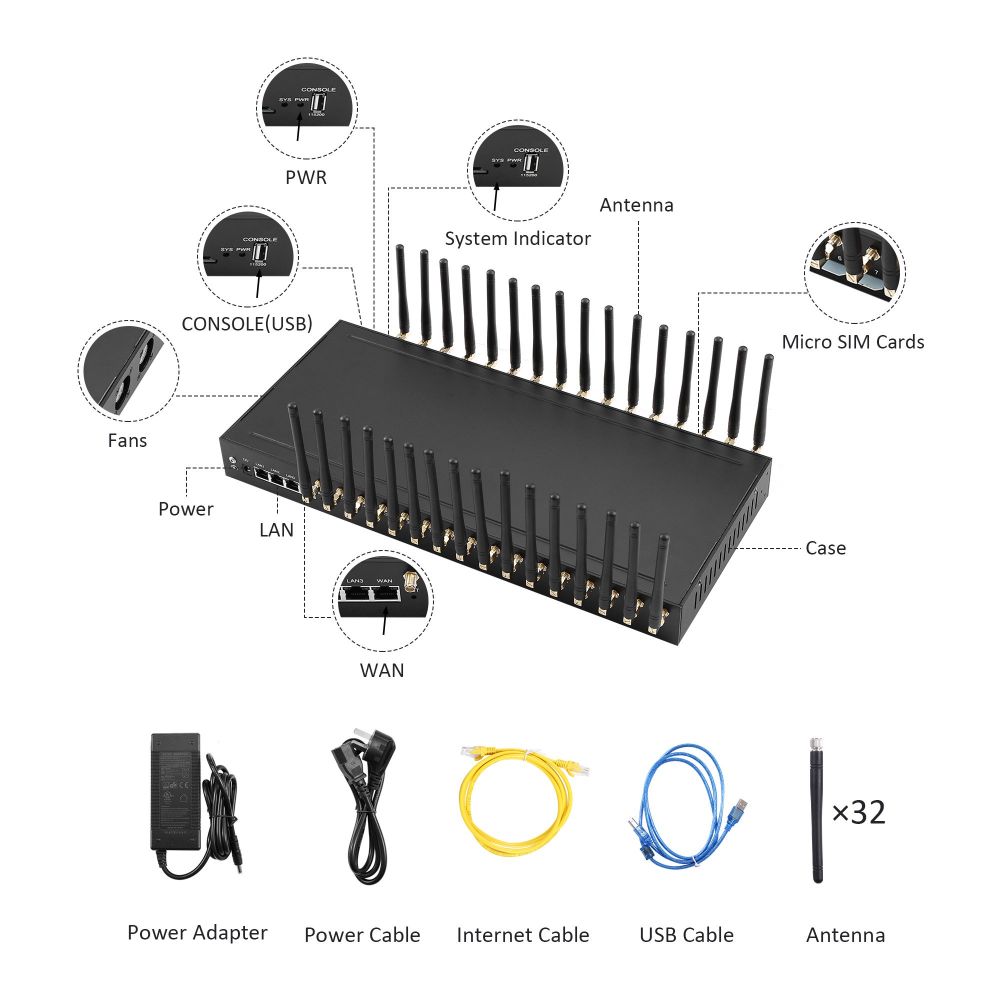

1. Hardware Assembly

Insert 16 standard-size 4G SIMs into dedicated slots (chip-side inward, hot-swap supported).

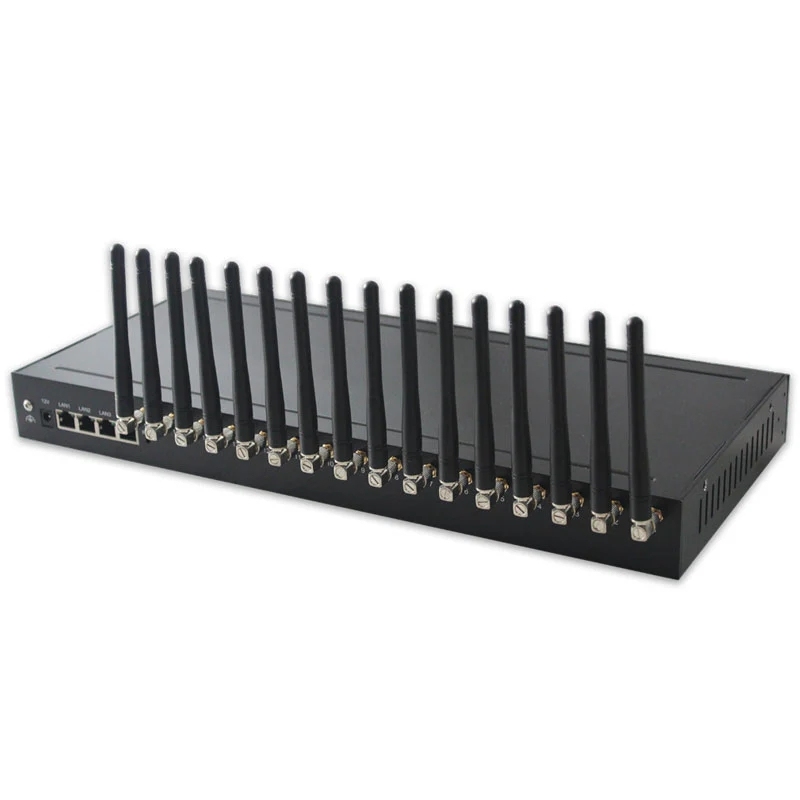

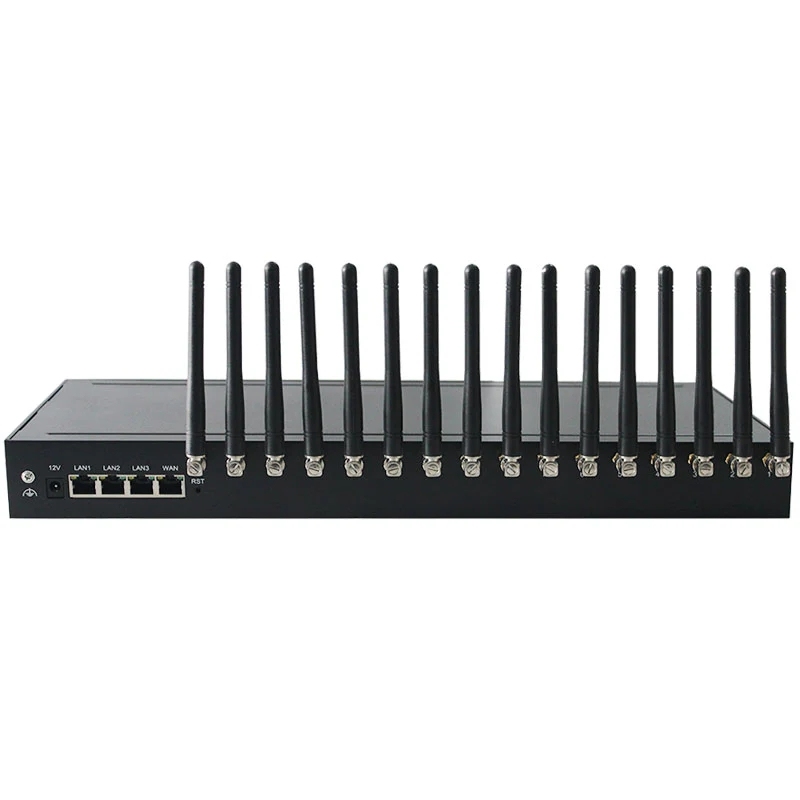

Install 16 high-gain 4G antennas on each port, ensure tight connection.

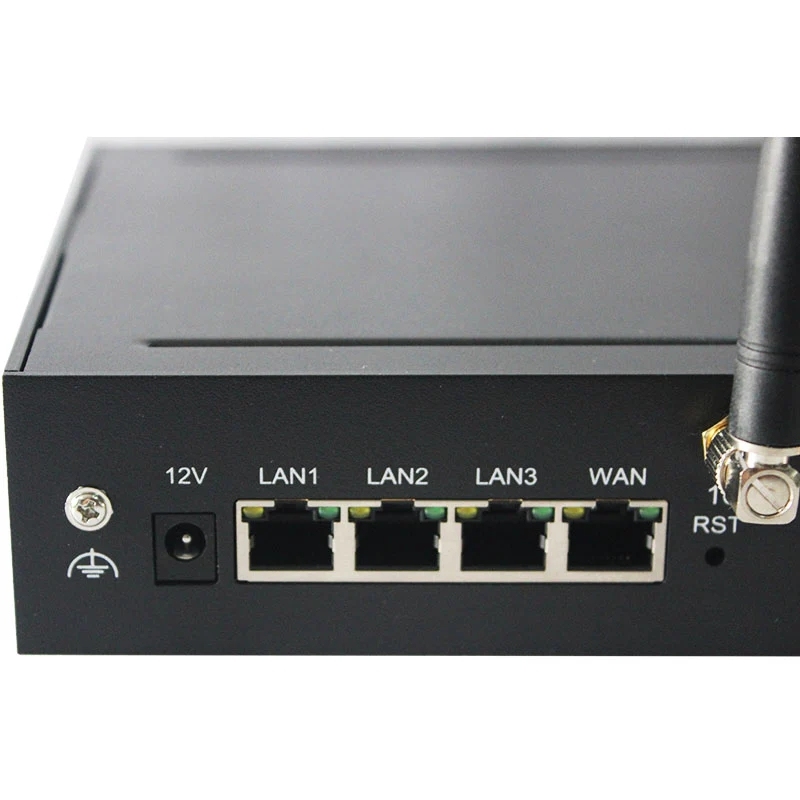

Connect RJ45 Ethernet cable to WAN port (for web management/backup network).
Plug in DC 12V power adapter, turn on power switch.

2. Web Login & Network Initialization

Set PC IP to 192.168.1.xxx (same subnet as device default IP: 192.168.1.67).
Open browser, visit http://192.168.1.67.
Default account: admin, password: admin (modify after login for security).
Navigate Network → WAN: Configure Static/DHCP/PPPoE for management network.
Navigate 4G Settings: Select auto-scan or manual 4G band, save.

3. HTTP & SOCKS5 Proxy Enable

Go to Application → Proxy Settings.
HTTP Proxy: Enable, set ports 20801–20816, configure user auth/IP whitelist.
SOCKS5 Proxy: Enable, set ports 10801–10816, save settings.

4. IP Rotation & SIM Strategy

Navigate Gateway → SIM Strategy.
Enable Time/Request-Based Rotation, set cycle/trigger rules.
Configure SIM Failover: Auto-switch to healthy SIMs for zero downtime.
Save & reboot to apply.

5. Advanced Security & Traffic Control

Firewall: Enable SYN-flood defense, set IP black/white list.
Traffic Quota: Set per-port daily/monthly traffic limits.
IMEI Customization: Modify device IDs for anonymity.

6. Remote Management Integration

Navigate API Settings: Enable HTTP API, copy API docs.
ETMS Cloud: Register device for global remote monitoring.

Ideal Application Scenarios

● Anti-Detection Web Scraping

Real mobile IPs for scraping e-commerce, search engines, and social media without detection.

● SEO & SERP Monitoring

Undetectable mobile proxies for global keyword ranking tracking, competitor analysis.

● Social Media Multi-Account

Stable SOCKS5 proxies for Instagram, TikTok, Facebook, Twitter multi-account operation, avoid bans.

● Ad Verification & Testing

Verify ad delivery, creatives, landing pages from real global mobile networks.

● Cross-Border E-Commerce

Price monitoring, inventory tracking, competitor data collection without IP blocks.

● Cross-Border Data Collection

Gather global market data, public information, and industry intelligence anonymously.

● Privacy Protection & Anonymous Browsing

Hide real IP, protect personal/business privacy for daily browsing and sensitive operations.

● Anti-Block Business Operations

Avoid IP bans for long-term scraping/automation.

FAQ

Q1: Are these real mobile IPs or data-center IPs?

A: 100% real carrier-assigned 4G mobile IPs, no virtual/data-center IPs, genuine mobile fingerprints.

Q2: Can I switch HTTP/SOCKS5 at the same time?

A: Yes, dual-protocol parallel operation on separate ports, no conflict.

Q3: Does it support SIM hot-swap?

A: Yes, replace SIMs without power off, no service interruption.

Q4: How to rotate IP remotely?

A: Use HTTP API for one-click IP reconnection/rotation.

Q5: Does it support VPN for encrypted traffic?

A: Yes, PPTP/OpenVPN client support for cross-region encrypted proxy.

Why Choose YX IPs 16-16?

Real Mobile IP Pool: 16 genuine 4G IPs, anti-detection, no blocks.
Dual-Protocol Parallel: HTTP + SOCKS5, cover all proxy scenarios.
Multi-WAN Stability: 4G + Ethernet backup, 24/7 operation.
Intelligent Rotation: Time/request-based, auto-failover.
Enterprise Control: Traffic quota, firewall, IMEI customization.
Remote Management: Web + API, global monitoring.

Call to Action

Upgrade your proxy operations with the YX 16 Port IP Proxy Gateway (YX IPs 16-16)!
● Free Product Manual

● 1-year warranty.

● Global shipping.

● Enterprise technical support.

If you have any questions about the product, customization requirements, or order details, please feel free to contact our professional team via:

Whatsapp: +8615220722893

Emai: yx@yxinternet.com
Telegram: @YXwendy
Teams: yuexun@yx19999.net

About Us

YX International is a professional supplier specializing in consumer electronics, smart devices, and lifestyle products. With years of experience in global trade and a strong supply chain network, we provide businesses and end-users with reliable products at factory-direct prices.

Our mission is to bridge quality manufacturing with global buyers, making cross-border sourcing easier, faster, and more transparent. From product selection to quality control, and from fast delivery to after-sales support, YX International ensures every order meets high expectations.

Why Choose Us

Extensive Product Range：From smart electronics to innovative gadgets, we cover a wide range of categories to meet various market demands.
Direct-from-Manufacturer Pricing：We work directly with reliable factories, ensuring competitive wholesale prices with no hidden costs.
Strict Quality Control：Every product goes through multi-level quality checks, from factory audits to pre-shipment inspections, guaranteeing what you receive matches your expectations.
Efficient Logistics Network：With global shipping partnerships, we offer fast and trackable delivery to over 100 countries, keeping your orders on time.
Dedicated Customer Service：Our professional team is ready to support you before, during, and after your purchase, ensuring your sourcing experience is smooth and hassle-free.

FAQ

1.Who are we?

YX International is a trusted supplier offering consumer electronics, smart devices, connecting global buyers directly with high-quality factories.

2.How can we guarantee quality?

Factory audits to verify production capabilities

Product sampling and testing

Pre-shipment quality checks to confirm product specifications

3.What can you buy from us?

We offer a wide range of products, including:

SMS Modem

SMS Dongle

Voip gateway

SMS gateway
eSIM Gateway
IP Phone
Modules/Accessories

Customized products for bulk orders

4.Why should you buy from us instead of other suppliers?

Direct factory pricing with no middleman markup

Comprehensive quality control from production to delivery

Flexible order solutions for both retail and wholesale

Fast global shipping and reliable logistics

Dedicated after-sales support to resolve any issues

5.What services can we provide?

Product sourcing and customization

OEM and private label support

Product quality inspections

Global shipping coordination

After-sales support and warranty services

Because the 4G frequency band is different in different countries or regions, when placing an order, please indicate the country in which the product is used. If there is no indication, we will select the corresponding frequency band model based on the country where the shipping address is located.

Product Feature
Name	4G LTE Wireless Modem
communication interface	USB
Chipset	Quectel EC25 / EG91 / EG25 / EC20
Function	SIP Voice / STK / AT Command / TCP/IP / Data / SMS / IMEI / MMS / Email / GPRS / GPS / USSD
Frequency	EC25-EUX / EG91-EX :(Asia, Europe,Africa, the Middle East,Southeast Asia, Vietnam, Myanmar, Laos, Cambodia, Malaysia, Singapore, Russia) LTE FDD: B1,B3,B5,B7,B8,B20,B28 LTE TDD: B38,B40,B41 WCDMA: B1,B5,B8 (900/2100MHz) GSM: B3,B8 (900/1800MHz) EC25-AFX / EG91-NAX :(United States and Canada) LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 WCDMA:B2/B4/B5 (1900,1700,850MHz) EC25-AUX / EG91-AUX :(Australia, New Zealand and Latin America, Mexico, Peru, Colombia, Brazil, Chile, Argentina, Dominican Federation, Venezuela, Honduras, Guatemala, Nicaragua, Costa Rica, Panama, Cuba, Guyana, Bolivia, Paraguay, Uruguay, etc) LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 LTE TDD: B40 WCDMA: B1/B2/B4/B5/B8 (850,900,1700,1900,2100MHz) GSM:B2/B3/B5/B8 (850,900,1800,1900MHz) EC25-J :(Japan) LTE FDD: B1/B3/B8/B18/B19/B26 LTE TDD: B41 WCDMA: B1/B6/B8/B19 EG25-G :(Global Full Frequency） LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 EC20 :(China, India) LTE FDD: B1/B3/B5/B8 LTE TDD: B34/B38/B39/B40/B41 WCDMA: B1/B5/B8 (900,2100MHz) TD-SCDMA: B34,B39 (900,2100MHz) EVDO CDMA: BC0 (800MHz) GSM: B3,B8: (900,1800MHz)
Operating System	Win all, Linux, android
Working voltage	AC 100-240V / DC 12V
Warranty	One Year
