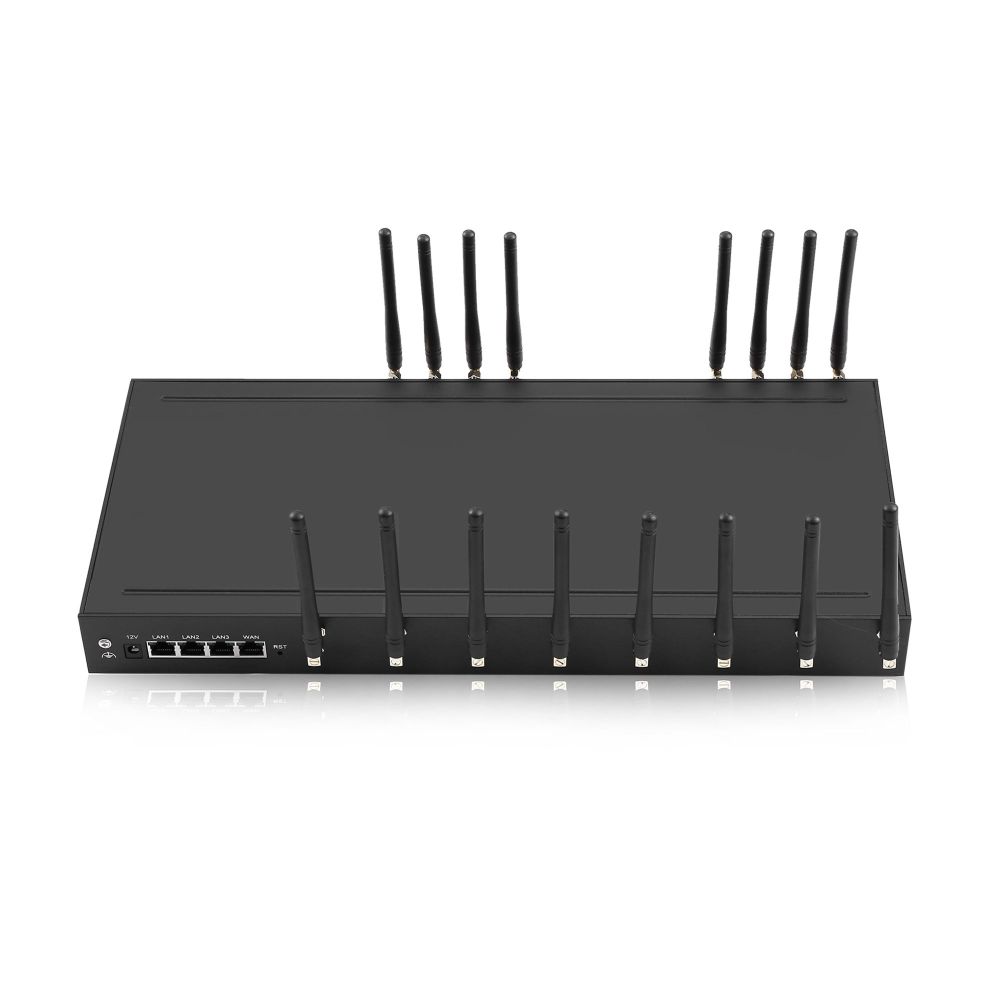

YX IPs 8-Port 4G IP Proxy Router | HTTP & SOCKS5 Dual Proxy SMS Gateway

Core Proxy Functions

1. 8 Independent IP Proxy Exits with Full Physical Isolation

• Support 4G redial to refresh IP: Trigger manual or automatic redial to get a brand-new exit IP, building a lightweight dynamic IP pool for your business.
• Support WAN wired access: Flexibly switch between wired broadband and 4G cellular network as the proxy exit, adapting to different on-site network environments.
• Port-level independent control: Proxy rules, dial-up settings and SIM policies can be configured separately for each port, fitting differentiated business needs of different projects.

2. Built-in SOCKS5 Proxy Service, High Compatibility for All Scenarios

• Flexible configuration: Customize your SOCKS5 service port freely, and bind it to a specified 4G WAN interface to achieve precise one-to-one proxy mapping (one port corresponds to one unique exit IP).
• Secure authentication: Support username + password identity verification to block unauthorized access and protect your proxy link and business data security.
• Stable TCP support: Fully support TCP protocol proxy with low latency and high stability, suitable for long-connection business scenarios.
• User routing rules: Support proxy user routing configuration for refined traffic distribution and permission management.
  Ideal use cases: Web crawler & data collection, e-commerce tool proxy, social media account management, game multi-opening, network environment testing

3. HTTP & HTTPS Proxy, Efficient Support for Web-Based Business

• Dual protocol support: Support both plain HTTP proxy and encrypted HTTPS proxy to meet the access and security needs of different web businesses.
• Access control: Support account and password authorization. You can set up separate proxy accounts for different business lines to achieve permission isolation.
• High anonymity: The proxy exit completely hides your real client IP, avoiding exposure of your business source address and reducing platform risk control and account ban probability.
• Beginner-friendly setup: Visual configuration on the web interface, takes effect immediately after saving. No complex command line operations required, easy even for non-technical users.
  Ideal use cases: E-commerce store web operation, ad effect verification, web data scraping, batch account login, regional IP simulation

4. Extended Proxy Capabilities for Flexible Scenario Expansion

• Port forwarding: The built-in firewall supports port forwarding rule configuration. With a public IP from the SIM card, you can safely expose internal network services to the public, expanding your proxy business forms and usage scenarios.
• VPN client: Support PPTP and OpenVPN client modes. Proxy traffic can be forwarded again through a VPN tunnel, achieving cross-border IP overlay and end-to-end encrypted data transmission.
• SSH tunnel: Support SSH tunnel port forwarding. You can encrypt and forward the device proxy port to a remote server, realizing proxy reuse and remote access even in NAT intranet environments.

Step-by-Step Setup Guide

Step 1: Hardware Installation & First Login

1. Hardware setup: Insert mini-SIM (2FF) SIM cards into the slots following the direction mark on the device. Install the external antennas and place the device in a location with strong carrier signal. Connect your computer to the device LAN port with an Ethernet cable, then plug in the 12V power supply to boot the device.
2. Log in to admin panel: Open a web browser on your computer, enter the default management address 192.168.1.67 or 192.168.1.10. Use the default username admin and default password admin to log in to the device management backend.

Step 2: 4G Dial-Up & IP Configuration

1. (Optional APN setup) If your carrier requires special APN settings: Go to Gateway Settings > APN Settings, select the target port, fill in the APN parameters provided by your carrier, then save and apply. Skip this step if your carrier uses default APN settings.
2. Check connection status: Go to System Status > Port Status to check the dial-up status of the corresponding SIM card. When it shows "dial successful" and displays an IP address, the 4G link is connected normally.
3. (Optional public IP setup) If your SIM card gets a private IP from the carrier, go to System Settings > Set Public IP Config to configure public IP acquisition rules

Step 3: SOCKS5 Proxy Configuration

1. Go to Application Settings > Socks5 Proxy, then check the option to enable the SOCKS5 proxy service.
2. Configure proxy parameters: Set your preferred SOCKS5 service port, select the 4G WAN interface to bind (corresponding to the specified SIM card exit). Turn on user authentication as needed, and set your proxy username and password.
3. Click "Save & Apply" to save the settings. After the configuration takes effect, you can use the SOCKS5 proxy service with the format device LAN IP:proxy port, and all traffic will exit through the corresponding 4G SIM card link.

Step 4: HTTP/HTTPS Proxy Configuration

1. Go to Application Settings > HTTP Proxy, then enable the HTTP proxy service.
2. Set the proxy service port, authentication account and password, and select the bound 4G WAN exit.
3. Save and apply the settings. Then you can configure the corresponding HTTP proxy address in your browser or business tools, so that web traffic exits through the specified 4G IP.

Step 5: IP Renewal & SIM Switch Setup

• Manual IP renewal: Go to Network Setting > Interface Settings, find the corresponding 4G PPP interface, and click redial. After re-dialing, you will get a new exit IP.
• Automatic SIM switch for IP rotation: Go to Gateway Settings > Switch Card, configure switch trigger conditions (such as accumulated SMS failures, traffic limit reached, network registration failure, etc.) and lock duration. After enabled, the device will automatically switch to the next SIM card to realize unattended automatic IP rotation.

More Standout Features

1. Static & Dynamic IMEI Customization, Reduce Device Risk Control

• Manually enter a 14-digit IMEI prefix, and the 15th check digit will be generated automatically by the system.
• Support one-click batch copy of prefix to all ports, with auto-complete function to generate full valid IMEI numbers.
• Dynamic IMEI allows you to configure group initial value and quantity; IMEI changes automatically when switching SIM cards.
• Effectively reduce the probability of device fingerprint being identified by platforms, improving account survival rate for your business.

2. Smart SIM Card Management for 24/7 Unattended Operation

• Multi-condition SIM switch: Support multiple trigger conditions such as accumulated SMS failure, network registration failure, traffic over-limit, etc. The device automatically switches SIM cards when conditions are met.
• Custom lock duration: You can set the SIM card lock duration freely. 0 means no lock, -1 means permanent lock, flexibly controlling the SIM card usage rhythm.
• Auto USSD query: Automatically execute USSD commands to query balance, traffic and other information after switching cards, to keep track of SIM card status in real time.
• Precise traffic control: Support daily/monthly/total three-level traffic limit. The card will be locked automatically when the threshold is reached to avoid unexpected overcharge. Visual traffic statistics and one-click batch reset are available.

3. All-Round Remote O&M for Easy Cross-Location Management

• ETMS remote management: Built-in ETMS client. After configuring server parameters, you can remotely access the device backend through the ETMS system. It works normally even in NAT intranet environments, no public IP required for the device.
• SSH tunnel: Support SSH tunnel port forwarding for remote encrypted access to devices and intranet services.
• Complete log system: Provide system log and software log download, support custom log module and log file quantity for convenient troubleshooting and operation monitoring.
• Remote firmware upgrade: Support firmware import and upgrade via web interface, to update device functions remotely without on-site operation.

4. Network Security Protection for Stable Business Operation

• Built-in firewall function, supporting network zone division, port forwarding, and traffic rule configuration. You can customize network access policies according to your business needs.
• Support SMS filtering function. You can configure blacklist numbers and sensitive keywords to block spam SMS, avoid invalid SIM card resource occupation and reduce SIM card ban risk.
• Proxy account authentication mechanism to prevent proxy abuse and protect business data security.

FAQ

Q1: What are the default login credentials for the device?

Q2: What should I do if the SIM card fails to dial?

1. Make sure the SIM card is mini-SIM (2FF) size, inserted in the correct direction, and the chip is in good contact with the slot.
2. Confirm that the SIM card has normal data service activated, and there is no arrears, shutdown, or operator lock status.
3. Go to Gateway Settings > APN Settings, configure the correct APN parameters of the corresponding carrier, then try dialing again.
4. Check if the antenna is installed firmly, and if the placement location has good carrier network signal coverage.

Q3: How can I change the proxy exit IP?

1. Manual redial for IP renewal: Go to Network Settings > Interface Settings, find the corresponding 4G PPP interface, and click redial. After re-dialing, you will get a new exit IP.
2. Automatic SIM switch for IP rotation: Go to Gateway Settings > Switch Card, configure switch trigger conditions (such as traffic reaching the threshold, SMS failure times reaching the limit, etc.). When the conditions are met, the device will automatically switch to the next SIM card to realize automatic IP change without manual operation.

Q4: Can I manage the device remotely without a public IP?

Q5: Does the SOCKS5 proxy support username and password authentication?
