X1P

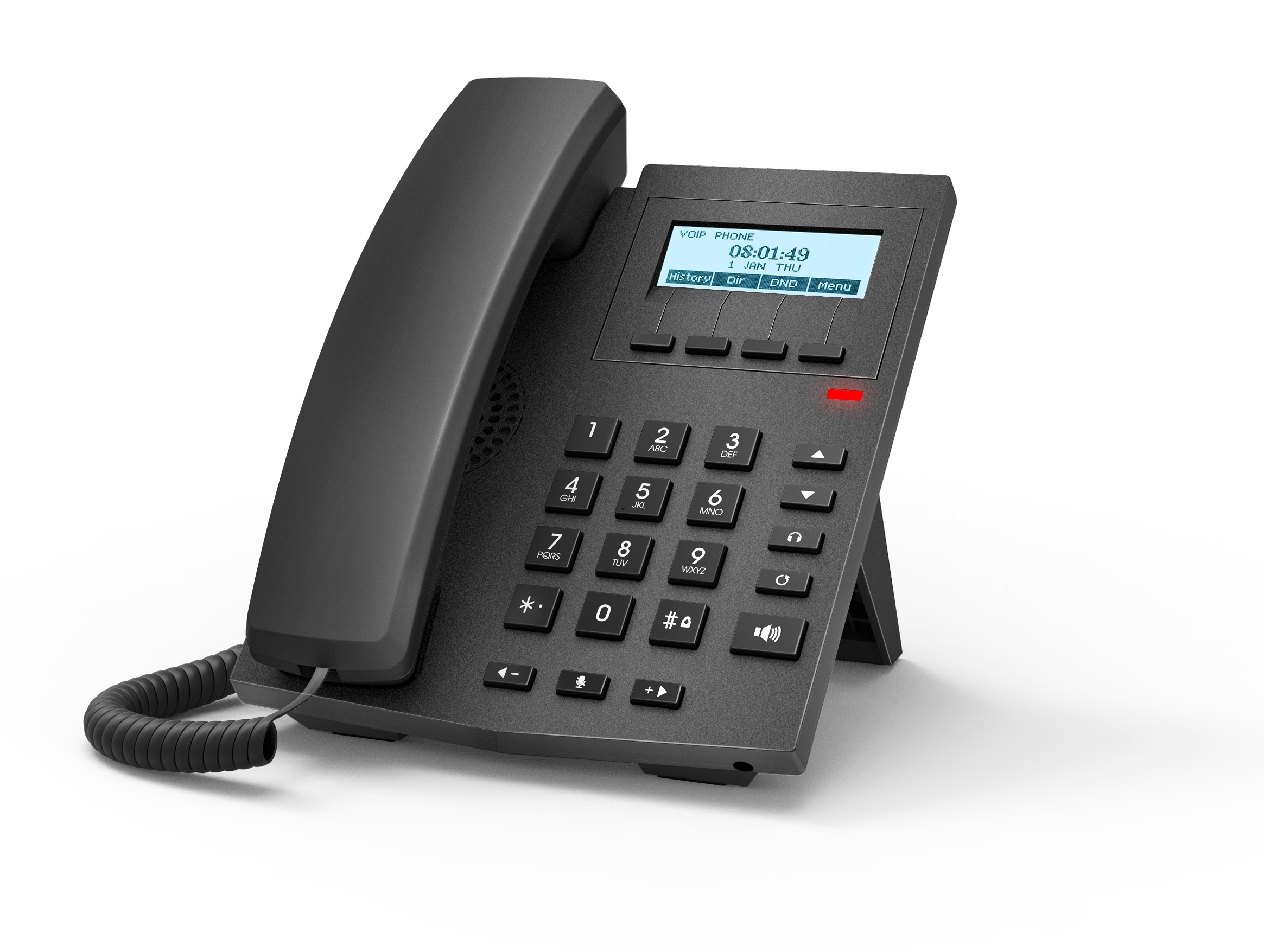

Business IP Phone X1P PoE, Fast Ethernet, QoS SIP Phone

1. Overview

The new X1P color screen IP Phone is a high-end enterprise desktop phone which comes with intelligent LCD to increase enterprise users’ productivity at a cost-effective price.

X1P inherits all features from enterprise phones, such as headset, and full-duplex speakerphone modes, PoE, Fast Ethernet, QoS, secure transmission, auto-provisioning, and more.

2. Installation method

2.1. Bracket installation

Please follow the instructions in below picture to install the device.

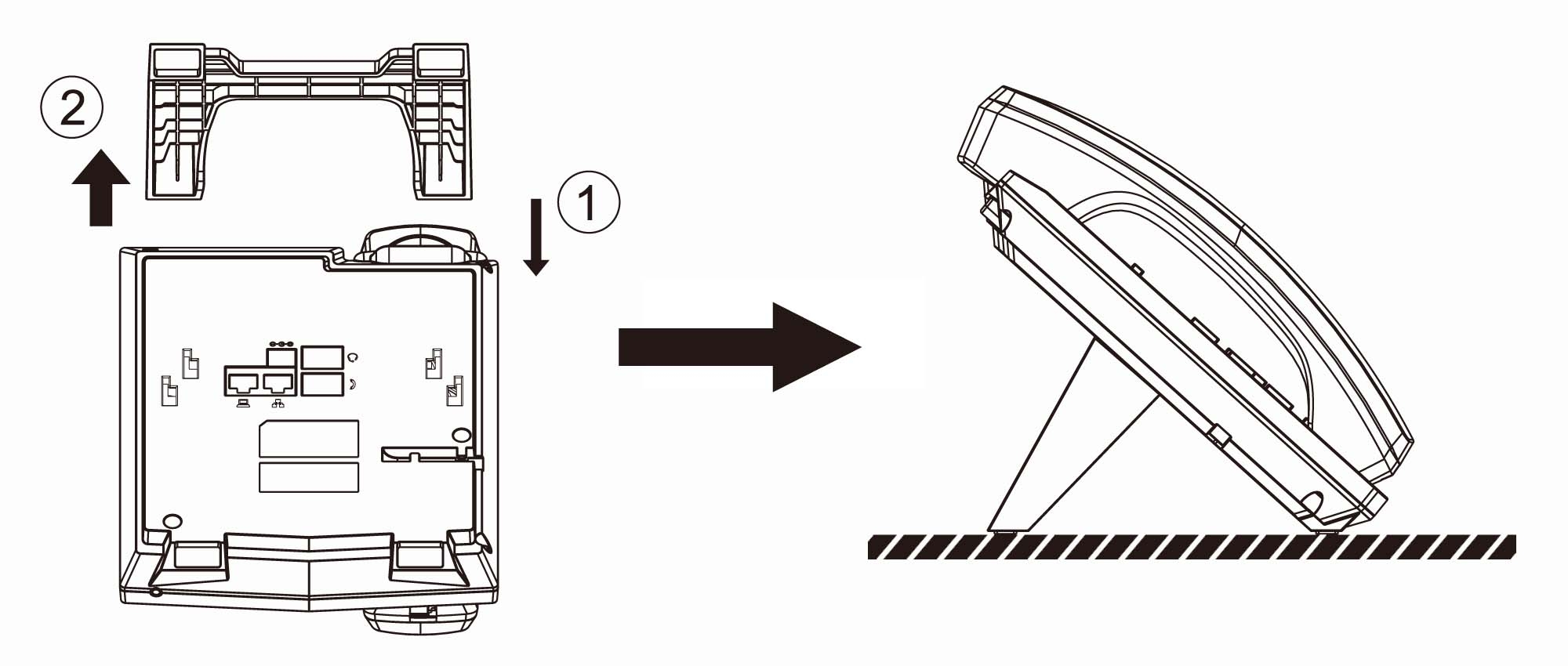

Figure 1 - Desktop Installation

2.2. Device to connect

Please connect power adapter, network, PC, handset, and headphone to the corresponding ports as described in below picture.

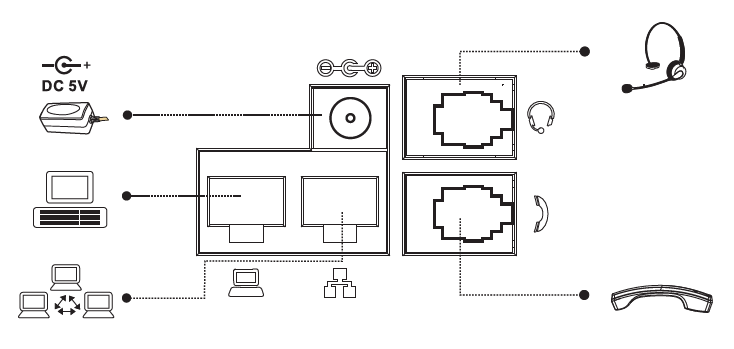

Figure 2 - Connecting to the Device

3. Using Handset / Hands-free Speaker / Headphone

Using Handset

To talk over handset, user should lift the handset off the device and dial the number, or dial the number first, then lift the handset and the number will be dialed. User can switch audio channel to handset by lifting the handset when audio channel is opened in speaker or headphone.

Using Hands-free Speaker

To talk over hands-free speaker, user should press the hands-free button then dial the number, or dial the number first then press the hands-free button. User can switch audio channel to the speaker from handset by pressing the hands-free button when audio channel is opened in handset.

Using Headphone

To use headphone, by default, user should headset button which is defined by DSS key to turn on the headphone. Same as handset and hands-free speaker, user can dial the number before or after headphone turned on.

4.specifications

Generic

2 SIP Lines
POE Enabled(X1P)
Dot-matrix Screen
Handset / Hands-free / Headsetmode
Desktop Stand
Optional External Power Supply( X1P )

Call Features

Call out / Answer / Reject
Mute / Unmute (microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forwarding (Always/Busy/No Answer)
Call Transfer(Attended/Unattended)
Call Parking / Pick-up(depending on server)
Redial/Auto-Redial
Do-Not-Disturb (per line / per phone)
Auto-Answering (per line)
Voice Message (on server)
Local 3-way Conference
Hot Line
Hotdesking

Phone Features

Local Phonebook (500 entries)
Remote Phonebook (XML/LDAP, 500 entries)
Call logs(in/out/missed, 600 entries)
Black/White List Call Filtering
Voice Message Waiting Indication (VMWI)
Programmable Soft keys
Network Time Synchronization
Support Recording (ThroughServer Recording )
Action URL / Active URI
uaCSTA

Audio

Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
Full-duplex Acoustic Echo Canceller (AEC)
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer up to 300ms
DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO

Networking
