Modular 8-SIM SMS Hub for Global Scalability
● 1-8 SIM Flexibility: Expand from 1 to 8 SIMs using the UART HUB, delivering 28,800 SMS/hour* (*3,600 per port) for growing campaigns or multi-region operations.
● Global 4G LTE Compatibility: EC25-G module supports LTE, GSM, CDMA, and WCDMA networks (700-2700 MHz)—optimized for worldwide use.
● Plug-and-Play USB + Wireless Internet: Direct USB connectivity for PCs/laptops and wireless internet access for standalone deployments.
Enterprise-Grade Features for High Efficiency
● Multi-Protocol Mastery: STK, AT Commands, TCP/IP, SMS/MMS, GPRS, GPS, and HTTP/FTP/SMTP/MQTT integration.
● GPRS Class 12 Performance: High-speed data transfer with CS-1 to CS-4 encoding, PPP/PAP security, and adaptive network routing.
● Dual SIM Formats: Default 2FF Mini SIM + optional 1FF IC card converter for legacy system compatibility.
Scalability & Cost-Effective Deployment
● Modular Design: Start small (1 SIM) and scale to 8 SIMs as your business grows—no hardware overhauls needed.
● Free SMS Caster Pro: Automate campaigns, track delivery metrics, and manage multi-device clusters seamlessly.
● Military-Grade Security: VPN, PPPoE, and RC4/Base64 encryption for secure data transmission.
Reliable & Future-Ready
● Global Durability: Operates in 0-50°C environments with 100-240VAC power input for 24/7 uptime.
● 12-Month Warranty: Backed by YXCALL’s technical support, detailed manuals, and API/SMPP documentation.
● LED Status Monitoring: Real-time SIM/port health tracking via intuitive indicators.
Perfect For:
→ Marketing teams blasting promos
→ Remote workers needing reliable internet
→ SMEs automating customer alerts
→ Developers building SMS/IoT solutions
Key Benefits:
High-Capacity SMS/MMS Gateway
8-Port UART HUB: Simultaneously manage 1-8 SIM cards (1FF-2FF sizes supported via converter) with independent channels.
Bulk SMS Throughput: up to 3,600 SMS/hour per port (28,800 SMS/hour total) – ideal for OTPs, alerts, or marketing campaigns.
Multi-Protocol Support SMS/MMS/Email/USSD/GPS data transmission via AT Commands or STK interface.
Global 4G LTE Connectivity
EC25-G Industrial Module: Quad-band support (700/900/1800/2700MHz) compatible with GSM, CDMA, WCDMA, and LTE networks across 190+ countries.
Dual Functionality: Use ports for SMS or dedicate them tohigh-speed internet** (download/upload rates up to 150Mbps).
Enterprise-Grade Reliability
Auto-SIM Failover: Seamless to backup SIMs during network outages.
GPRS Class 12 & TCP/IP Protocols: Stable data transfer for IoT/M2M applications.
Extended Warranty: 12-month coverage + lifetime technical support.
Launch in 3 Steps:
1. Insert SIM.
2. Plug into USB.
3. Start Sending and Receiving!
Launch Faster, Spend Less, Do More!

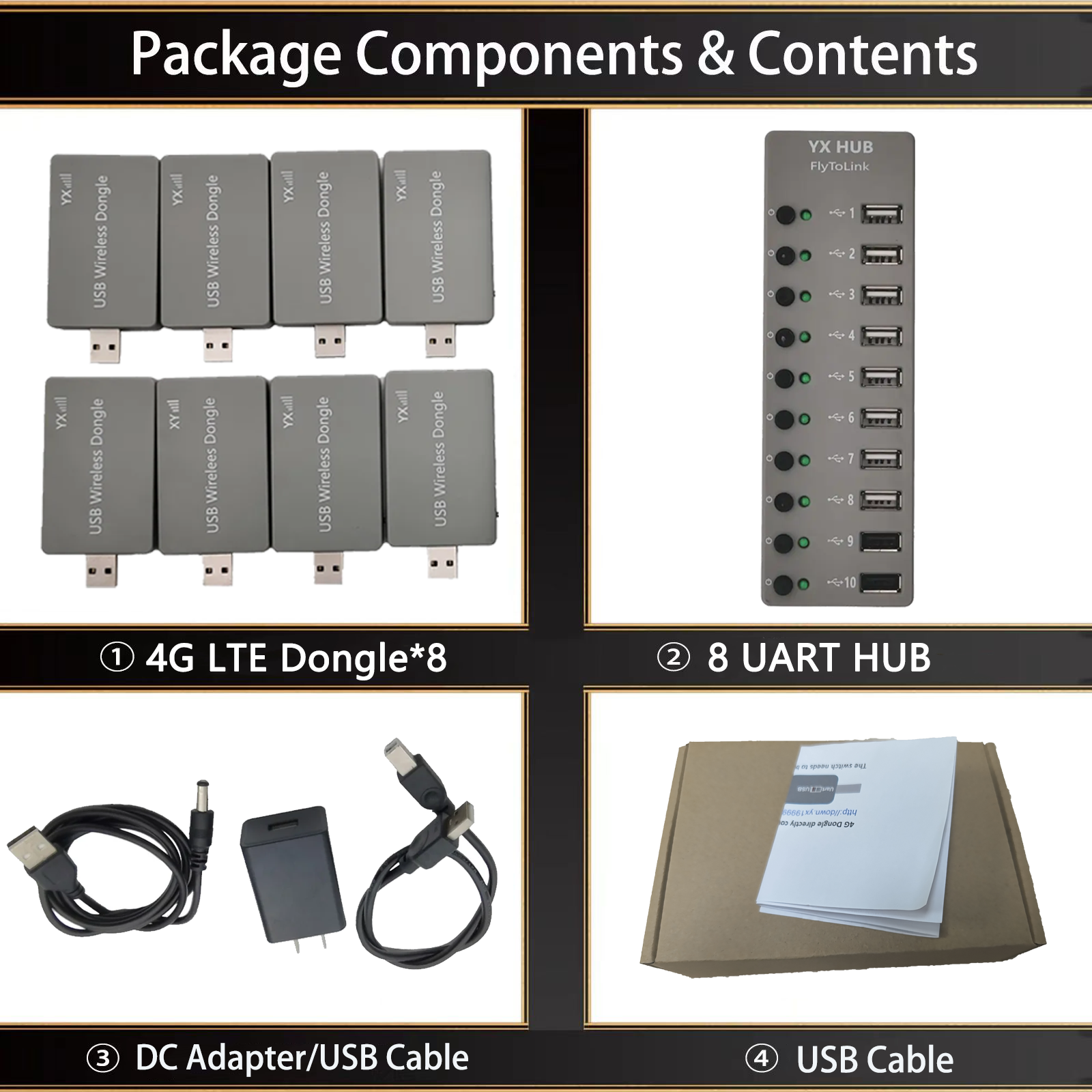

Package Includes
Why Choose YXCALL?
12-Month Replacement Warranty
Custom Firmware Options (e.g., whitelist IPs, modify SMS header IDs)
Dedicated Support: Long term technical support
Need Assistance? Contact customer service for product images or technical queries! Contact Sales for Volume Discounts (10+ Units)
Whatsapp: +8615220722893
Emai: yx@yxinternet.com
Telegram: @YXwendy
Teams: yuexun@yx19999.net
For detailed product operation, please refer to the relevant manual or contact customer service for assistance
About Us
YxInternet is a professional supplier specializing in consumer electronics, smart devices, and lifestyle products. With years of experience in global trade and a strong supply chain network, we provide businesses and end-users with reliable products at factory-direct prices.
Our mission is to bridge quality manufacturing with global buyers, making cross-border sourcing easier, faster, and more transparent. From product selection to quality control, and from fast delivery to after-sales support, YxInternet ensures every order meets high expectations.
Why Choose Us
FAQ
1.Who are we?
YxInternet is a trusted supplier offering consumer electronics, smart devices, connecting global buyers directly with high-quality factories.
2.How can we guarantee quality?
Factory audits to verify production capabilities
Product sampling and testing
Pre-shipment quality checks to confirm product specifications
3.What can you buy from us?
We offer a wide range of products, including:
SMS Modem
SMS Dongle
Voip gateway
SMS gateway
eSIM Gateway
IP Phone
Modules/Accessories
Customized products for bulk orders
4.Why should you buy from us instead of other suppliers?
Direct factory pricing with no middleman markup
Comprehensive quality control from production to delivery
Flexible order solutions for both retail and wholesale
Fast global shipping and reliable logistics
Dedicated after-sales support to resolve any issues
5.What services can we provide?
Product sourcing and customization
OEM and private label support
Product quality inspections
Global shipping coordination
After-sales support and warranty services
1、Overview
SMS dongle is a device used for bulk send and receive of SMS on mobile networks.
Built-in wireless 4g module can insert into 1-8 SIM card.Can be used directly into the computer USB port for laptops and desktops,also be used in conjunction with UART HUB

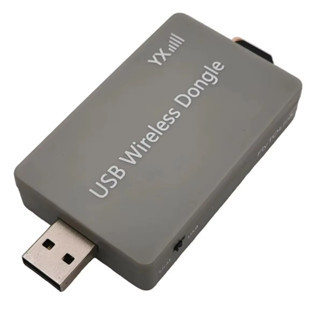

▼The following picture shows the USB Dongle 4G EC25 module
Note:Because the 4G frequency band is different in different countries or regions, when placing an order, please indicate the country in which the product is used. If there is no indication, we will select the corresponding frequency band model based on the country where the shipping address is located.
2、Product Brief
▼4G LTE Dongle supports wireless internet access
▼SMS Caster interface operation demonstration

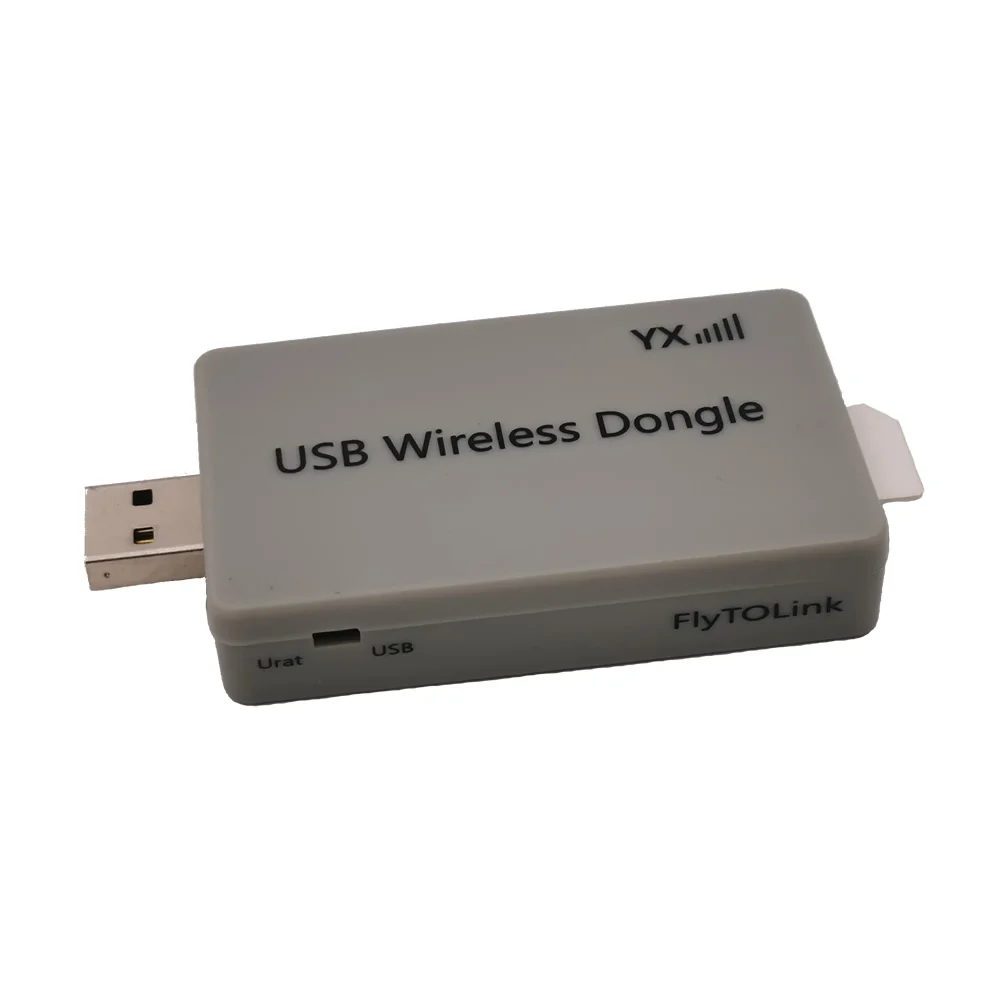

3、Appearance
4、Specification
2G: M26/ M35;
3G:UC20/ UC200T;
4G: EC25/ EC20/ EC200A
GSM: 850/900/1800/1900MHz
3G WCDMA: 850/900/1700/1900/2100MHz
4G LTE: 700-2600MHz
Options：Paired with UART, can be use 1/2/3/4/5/6/7/8/9 slots and more
Speed: 2G: 800-1000 sms, 3G:2500-2800 sms, 4G:2500-3600 sms per port per hour Send and receive SMS,MMS
UART ransmitting speed: 9600/19200/115200

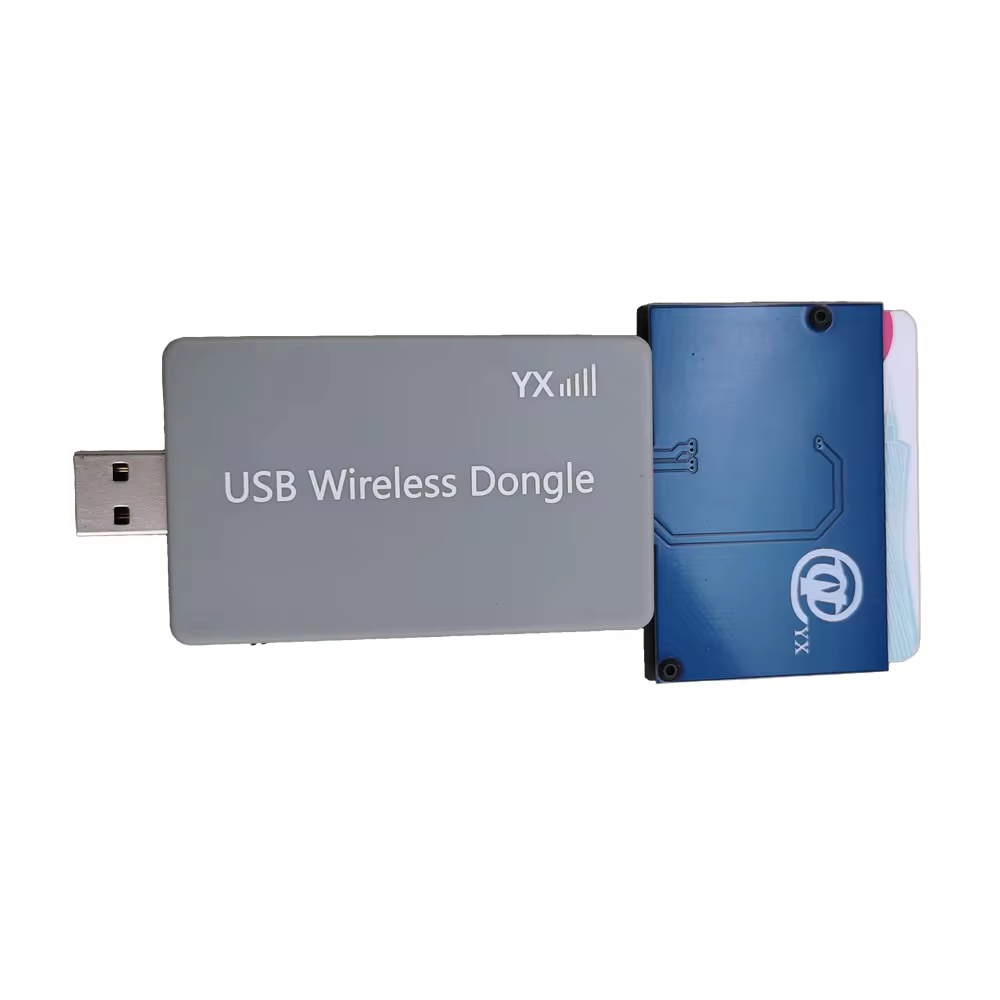

SIM interface:Default is 2FF Mini SIM (15mm*25mm), Optional conversion to 1FF (big size IC card)
Working voltage: DC 5V
TTL voltage: DC 3.3V
5、Function
The main function of the product is High-Speed internet access and Internet of Things apply, SMS or voice notification reminders.
Directly connect to your computer, the main function depends on the software, such as SMS Caster which we provide for free (you can download it from our website and check the specific function):
● Support batch mass SMS, flash message, long SMS, MMS (need to have their own software support);
● Support importing contacts and importing messages directly (by importing forms);
● Support timed tasks, support auto-reply (need to set keywords);
● Support multi-task sending (send by port), support intermittent sending (you can set how many seconds to lock after sending how many);
● Export unfinished tasks, etc.
About Change IMEI/Send USSD/Call/Put in PIN/PUK code(AT command)
● Change IMEI
1. open Putty
2. click " Serial"
3. Input the com port in "Serial line" such as COM 1
4. PUT IN "at&f"
5. put in "at+cgsn"//check IMEI
6.at+egmr=1,7,"IMEI number" change imei
for example: AT+EGMR=1,7,"453243242432134"
if you put in imei is wrong ,it will reset or keep old IMEI
7. put in "at+cgsn"//check new IMEI
● Send USSD
1. open Putty
2. click " Serial"
3. Input the com port in "Serial line" such as COM 14. PUT IN "at&f"
5. put in "at+cusd=1,"USSD command""
for example:at+cusd=1,"*097#"
● CALL
1. open Putty
2. click " Serial"
3. Input the com port in "Serial line" such as COM 1
4. PUT IN "at&f"
5. put in "ate1"
6. put in "atd number;"
for example:atd 0976006161;
7. put in"ATH" hung off call
Put in PIN/PUK code
1. open Putty
2. click " Serial"
3. Input the com port in "Serial line" such as COM 1
4. PUT IN "at&f"
5. PUT in “at+cpin?” //check PIN status
If display “ready”=> it is ok, don’t need put in PIN code
If display ”SIM PIN” =>need put in PIN code
PUT IN ”at+cpin=PIN code”,
for example: at+cpin=1234
If display ”SIM PUK” =>need put in PUK code
PUT IN “at+cpin=”PUK code”,”NEW PIN code” ” ,
for example: at+cpin=”12345678”,”1234”

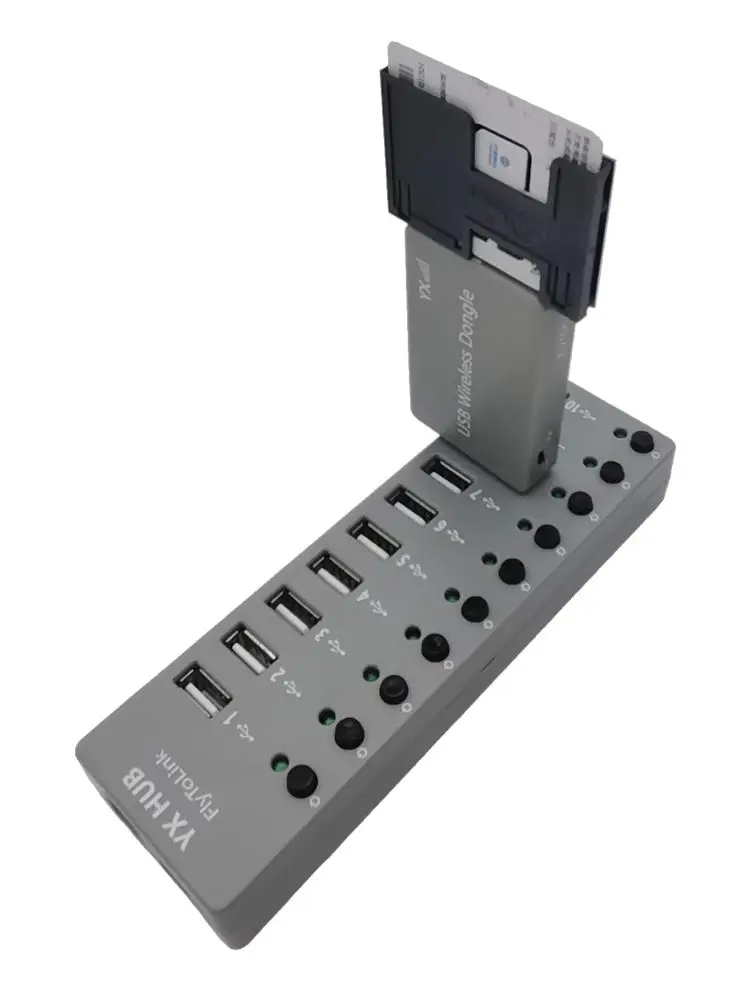

About UART HUB
If you need to use it in bulks, need to purchase UART HUB with TTL=3.3V. Our store has HUB with 4/8 channels available for purchase.
TTL UART USB2.0 HUB for Raspberry Pi/ Modem/ COM ports, provides more USB capability to your Pi, what's more, it features USB to UART converter for easy serial communication.
It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.
The product adopts 5V input power supply, compatible with USB power supply, and has an output TTL level of 3.3V. It can be directly connected to various GSM 4G LTE MODEMs, DONGLE, and microcontrollers.
USB HUB HAT Features
● USB Ports, compatible with USB2.0/1.1
● Onboard USB to UART, with enable / disable switch, convenient for Raspberry Pi serial debugging and avoiding conflict
6、FAQ
Q1. COM and port number is not corresponding, how do I know this port can not use?
A:Each module has lights:
● Light flash every 3 s, means normal registration card, can be used;
● Light flash every 1 s, it isn’t normal registration card, Need to check the card is installed correctly or not.
Q2. You have installed SIM cards,but device can’t read SIM card.
A:Please re-install SIM card and reboot it port, Installing sim card, the direction of the note card is correct.
Q3. COM port have error 2
A:Please reboot this port or re-install this port(Each module is removable).
Q4. Just began to normal to send, but send failure after a period of time
A:It may be blocked by operator or limit, Check the SIM card again orcontact Operator.
| Because the 4G frequency band is different in different countries or regions, when placing an order, please indicate the country in which the product is used. If there is no indication, we will select the corresponding frequency band model based on the country where the shipping address is located. |
|
The EC20/EC200A module and is not suitable for use in the United States, Canada, or Japan. If you need to use it in these countries, Please consult customer service to recommend other 4G modules for you, such as EC25. |
