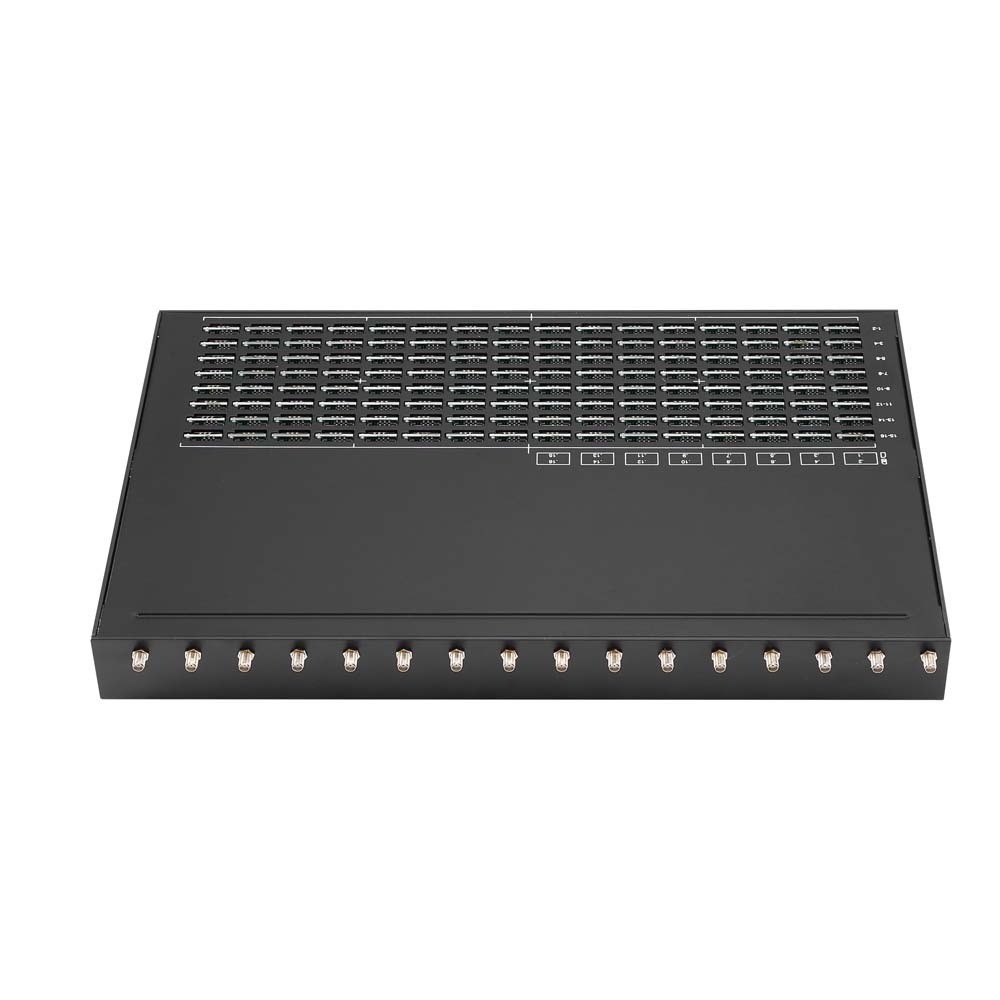

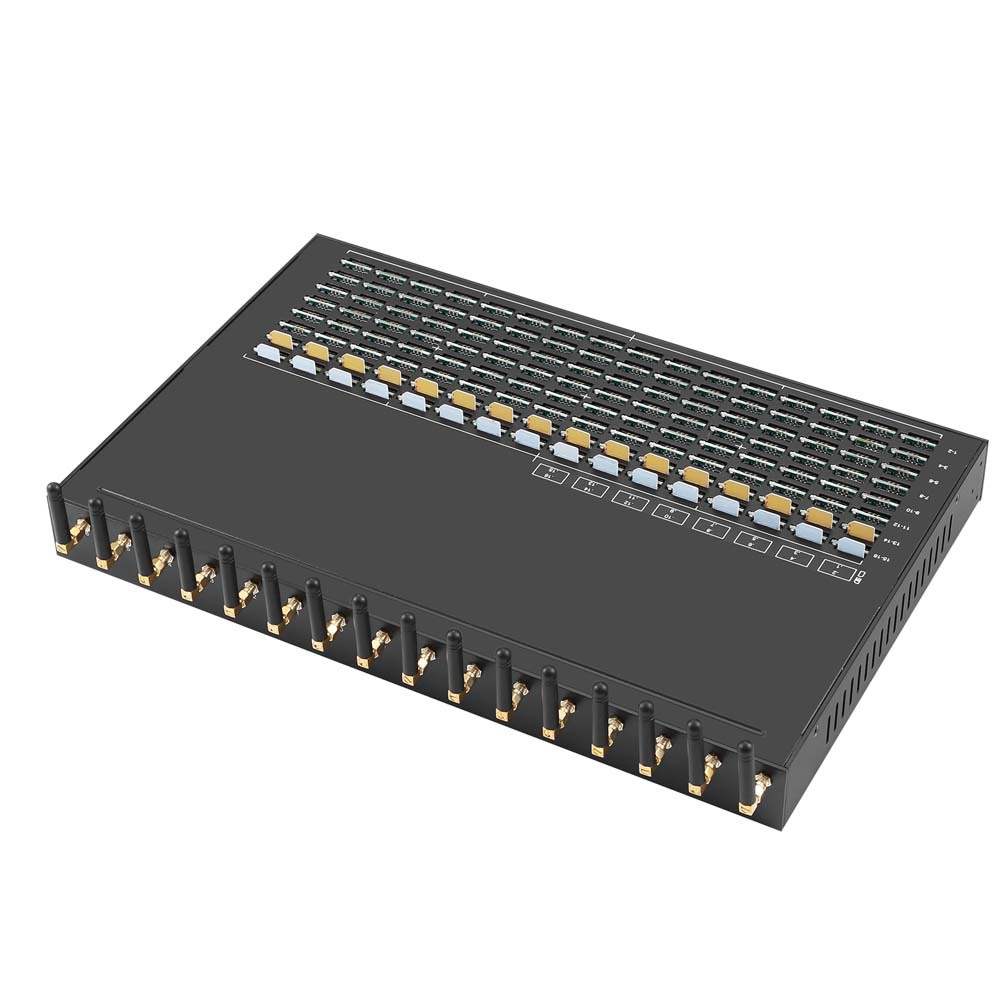

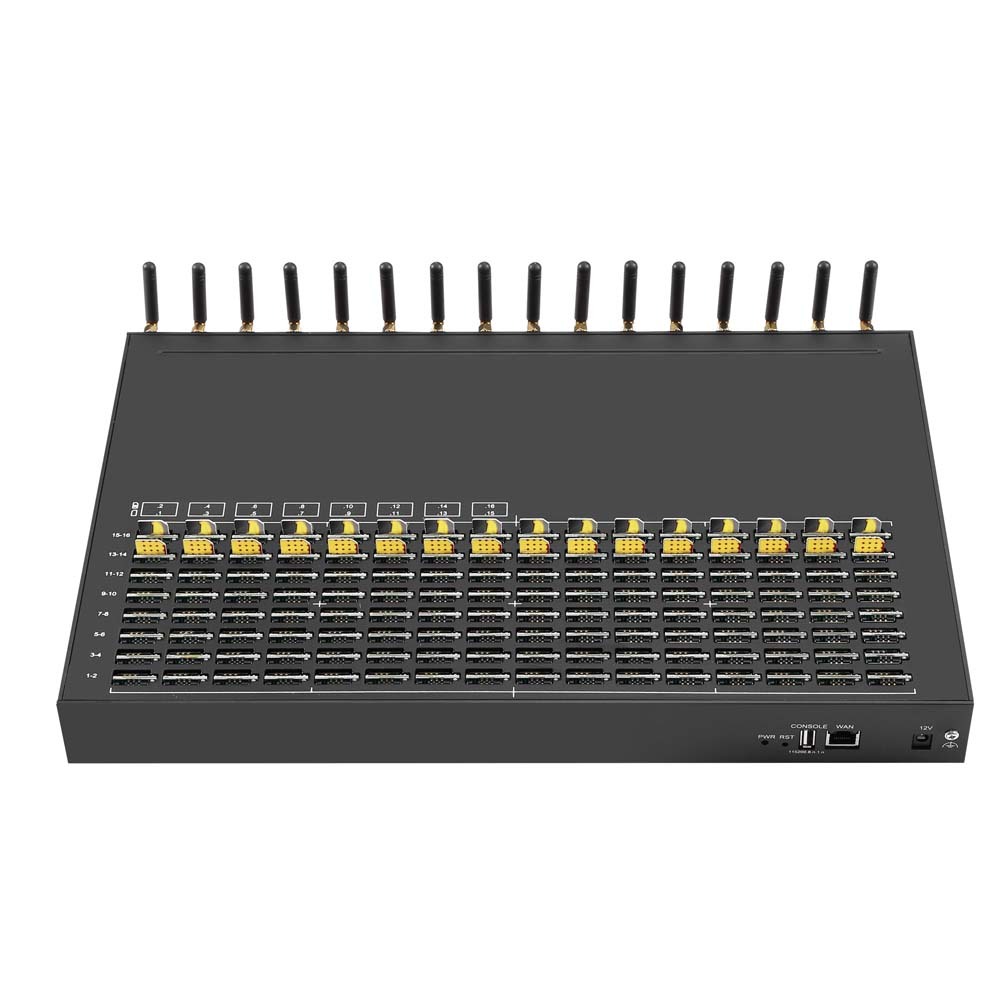

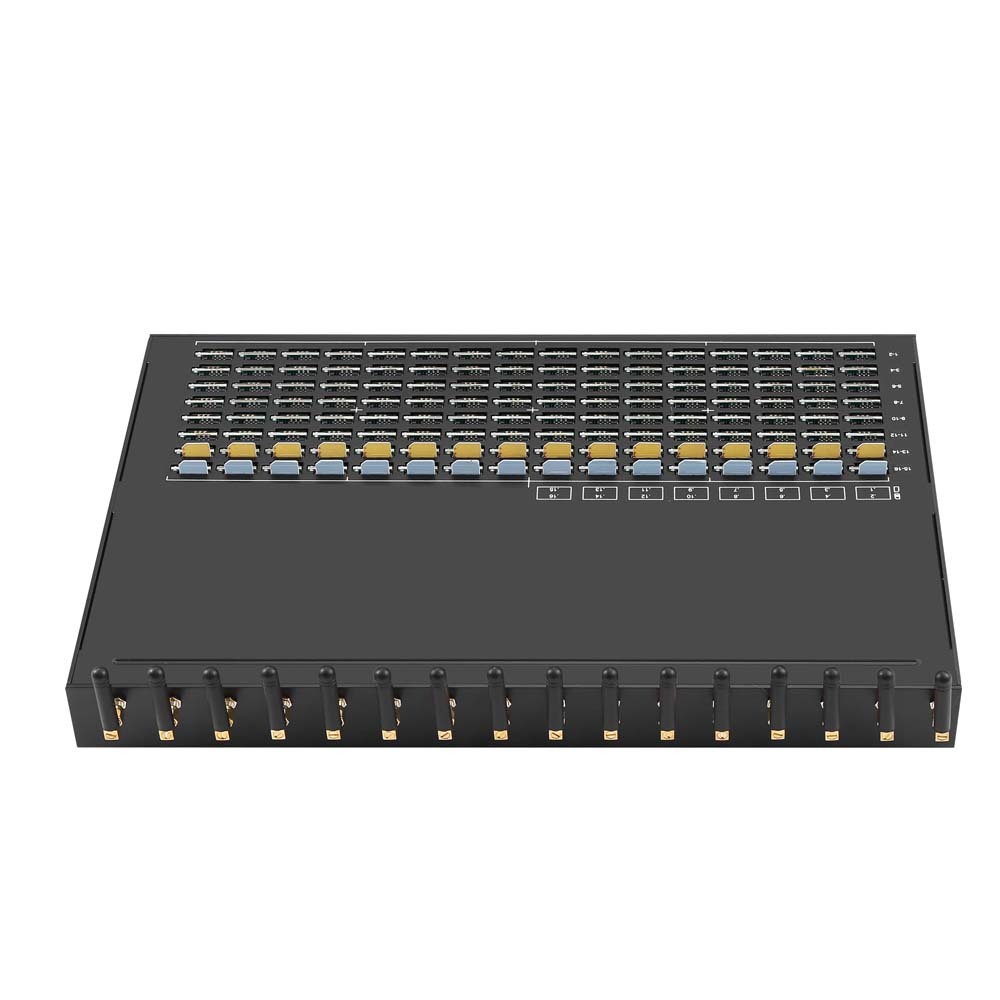

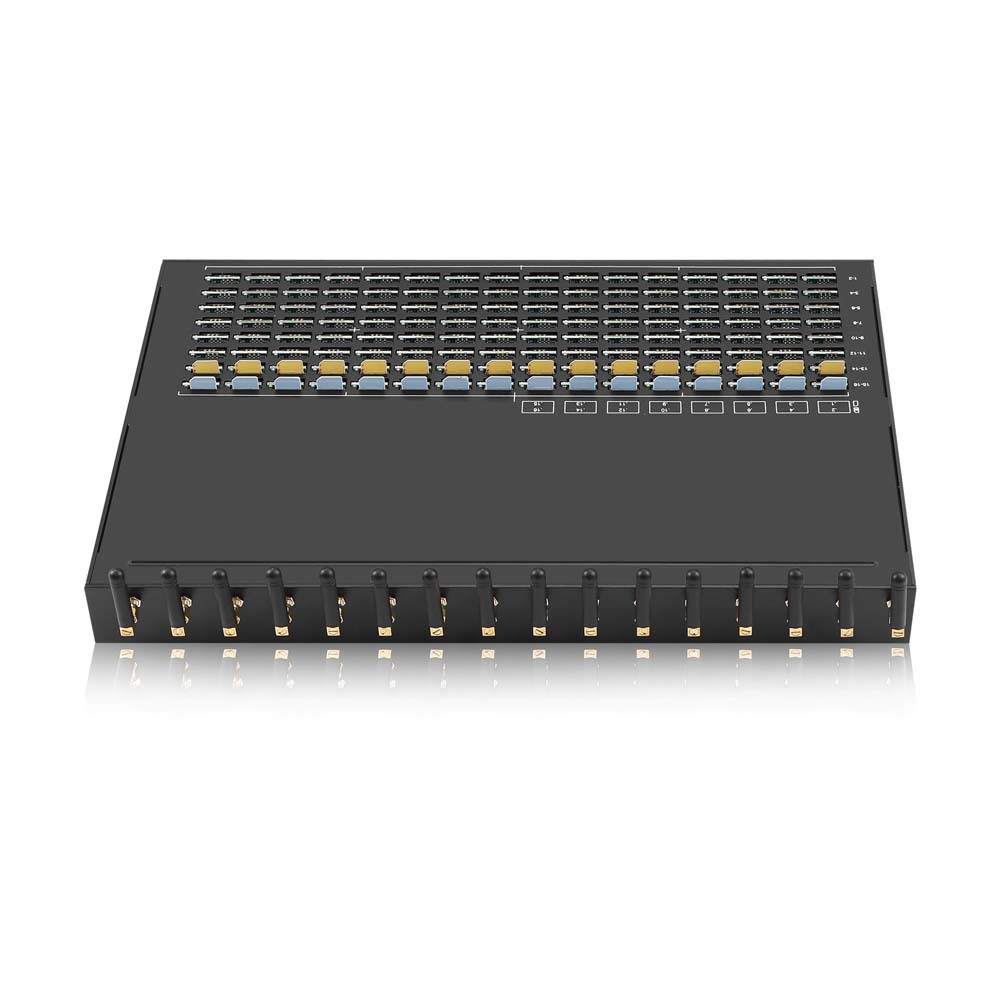

YX GoIP 4G LTE 16 Ports 256 SIM VoIP Voice Gateway for Call and SMS

SKU:
Whether you require robust call handling capabilities, seamless integration, or cost-effective communication solutions, YX-VoIP gateway delivers on all fronts.
GP 16-256 Support SMS and voice functions. It has 16 ports, supporting 16 sim cards work at same time. Each port is equipped with 16 sim card slots for online automatic or manual switching, enabling flexible operation with up to 256 cards.
(Friendly Reminder: Please indicate the intended country of use when placing your order. Failing such indication, the corresponding frequency band model will be allocated based on the shipping address country)

$0.00 $1,800.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • Save $2.00 for each $100.00 spent
    Please select the information you want X
  • PORTS:
    GP 16-256 (SMS and Voice)
  • 4G MODEL:
    EC25 (Region Specific Global Coverage)
    EG25-G (Global Full Frequency)
    EC20 (Only INA/RUS Availability)
  • Price Tier:
    1 Unit Price (Qty 1)
    2+ Units Price (Tip: Min Qty 2 | No Shipment Otherwise)
  • Power Adapter:
    EU
    EU
    CN/AU
    CN/AU
    CN
    CN
    US(1)
    US(1)
    US(2)
    US(2)
    UK
    UK

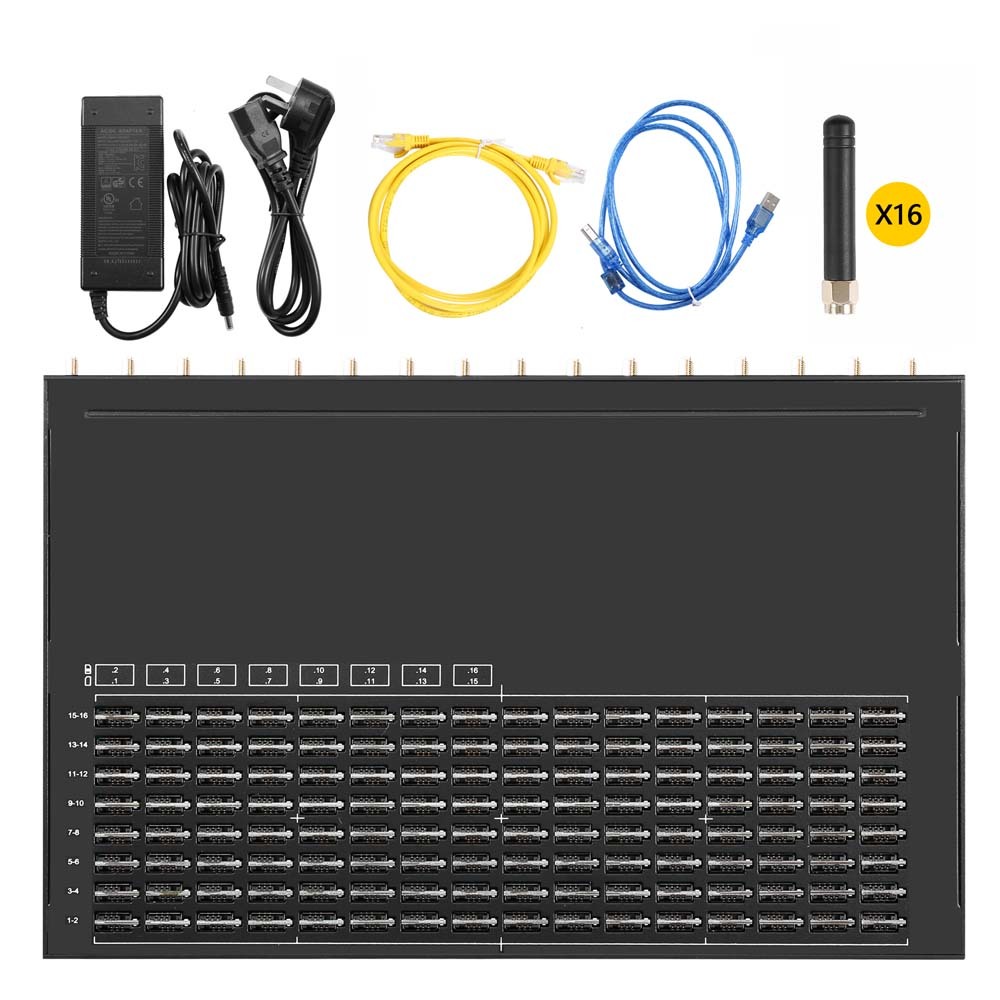

  • Package appearance:
    Original package
    Original package
    Power amplifier
    Power amplifier
    Switchboard
    Switchboard
Quantity:
-
+
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • YX GoIP 4G LTE 16 Ports 256 SIM VoIP Voice Gateway for Call and SMS
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • YX GoIP 4G LTE 16 Ports 256 SIM VoIP Voice Gateway for Call and SMS
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
1/1
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • YX GoIP 4G LTE 16 Ports 256 SIM VoIP Voice Gateway for Call and SMS
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • 4G LTE 16 Ports 256 Sim GoIP GSM Sip Gateway VoIP Voice SIM Gateway for Call and SMS
  • Description
  • Product Details
  • Frequency band
  • Package

Brand Name

YXCALL

Number of Channels

16 channels 256 SIM slots

Frequency

GSM, CDMA, WCDMA, LTE
(When purchasing 4G equipment,If unsure,please confirm the frequency band and module with the account manager!)

Module EC25/EG91/EG25/EC20 (Please refer to the "Frequency Band" interface for specific information)

Function

SIP Voice / STK / AT Command / TCP/IP / Data / SMS / IMEI / MMS / Email / GPRS / GPS / USSD
(Please refer to the "
Product Details" interface for specific information)

SIP Specification

SIP/2.0 RFC3261

Session Timer RFC4028

STUN, DTMF, RFC2833

SMS Specification SMPP3.4, HTTP, API, EIMS
Network Protocols

DHCP, PPPoE, Static IP, VPN

Telephony Features

Hot-line call ,Dial plan, Speed dial, Phone book,CDR, LCR,

White/Black list

Telephony Signaling

DTMF tone dectection/generation

DTMF relay: in-band, RFC 2833 and SIP info Call forward:unconditional, no answer and busy N-way conferencing

Caller ID display/generation, Mobile Number Portability

Voice Capability

Voice codecs:G729a/b/e,G723.1,G.711 A/U law, iLBC Echo cancellation

Silence suppression & detection(VAD, CNG)

Adaptive jitter buffer Volume adjustable IVR customized

Number of Ports

1 WAN 10/100Base-T Ethernet(RJ-45 connector)

1 Console(USB)

LED

1 Power and 4/8/16/32/64groups of card online and running status indicator

Power Supply 100-240VAC, 50 - 60 Hz IN, 12VDC 3A/5A/7.5A/8A Out

Operating Environment

Operating temperature: 0 - 50ºC

Operating humidity: 10 – 90%RH

Warranty

12 Months

Support With instruction manual and technical support (Also has SMS and voice services, please contact us)
Shipping
method
Support DHL, UPS, FEDEX, EMS, 4PX Cainiao standard logistics and dedicated lines (some countries have dedicated lines logistics, Specific consultation with customer service)
Tip: (1) Express delivery is faster than dedicated lines, but customers need to handle customs clearance and tax payment, and there will be logistics trajectory updates throughout the process.
(2) Dedicated line logistics is slower, but includes customs clearance and tax payment, and is delivered directly to the home. The logistics trajectory updates will only be available after the package arrives at customs clearance and is handed over to the local logistics provider.
Payment method Support payment methods such as USDT, PayPal, credit card, TT, etc (Pay with USDT and there are no additional transaction fees, so 3% discount on the product price is given)
Please consult customer service for USDT address,Other payment methods can be redirected to the checkout page for online payment
Ordering Process Payment for the product you need to order, we will arrange for stock testing after confirming the accuracy of the delivery information with you. We expect to arrange shipment within 2 days and provide you with package picture and logistics tracking number for tracking. Customer service will send message to remind you of tax payment and logistics delivery. If you need technical support after receiving the goods, please leave a message to our customer service personnel, and we will arrange for a technician to assist
Tip Use power amplifier or switchboard as the appearance will make customs clearance easier and reduce tariffs
Customer service contact information Whatsapp: +8615220722893
Emai: yx@yxinternet.com
Telegram: @YXwendy
Teams: yuexun@yx19999.net

YX 16 port VOIP Gateway 256 SIM slots bulk voice SMS gateway

YX 4G LTE GoIP Gateway — 16 ports × 16 SIM slots = 256 SIM capacity!
● 16 SIMs active simultaneously
● Auto/manual switching

● High-volume calls & SMS via SIP/2.0 & SMPP 3.4. Slash costs for telecom operators, call centers, and SMS campaigns!
● perfect for high-volume SMS campaigns and VoIP call routing with carrier-grade reliability.


Scalable Capacity & Control:

  • 16 Active Ports × 16 SIMs/Port: Operate 16 SIMs simultaneously with manual/auto switching across 256 total slots—ideal for balanced load distribution.

  • True Quad-Network Support: GSM/CDMA/WCDMA/LTE compatibility (confirm bands via manager).

  • Dual-Module Flexibility: EC20/EC25/EG91/EG25 modules for global deployment.


Advanced Communication Suite:

  • Dual-Mode Operation: SIP VoIP calls + SMPP v3.4/HTTP/API SMS integration.

  • Intelligent Call Management: Dial plans, LCR, CDR, white/black lists, 3-way call forwarding (busy/no answer/unconditional).

  • HD Voice Quality: G.711, G.729, iLBC codecs with echo cancellation + VAD/CNG.


 Enterprise-Grade Connectivity:

  • Multi-Protocol Ready: Static IP, PPPoE, DHCP, VPN.

  • Dual Port Design: 10/100 Mbps WAN + USB console for diagnostics.

  • Real-Time Monitoring: 64-group LED indicators for SIM/port status.


Industrial Resilience:

  • Extended Operation: 0°C–50°C temperature range, 10–90% humidity tolerance.

  • Cross-Platform Support: Windows/Linux/Android OS compatibility.

  • Stable Power: 100–240V AC input with 12V DC 8A max output.

    ↓ Platform admin panel page display
    voip gateway panel Port Statusvoip gateway panel network settingvoip gateway panel SMS settingvoip gateway panel Codec setting
    voip gateway panel SIP Setting


Technical Specs:

  • Ports: 1x WAN (RJ-45), 1x Console (USB).

  • Power: 100-240V AC input, 12VDC output (3A/5A/7.5A/8A).

  • Protocols: SIP/2.0, SMPP 3.4, HTTP/FTP/TFTP, STUN.



Perfect For:

  • Telecom operators managing high-volume call/SMS traffic.

  • Call centers requiring SIP/PBX integration.

  • Enterprises running IoT, OTP, or SMS marketing campaigns.


Deploy Globally, Risk-Free:

  • Free worldwide shipping

  • 12-month warranty + 24/7 technical support
    Pro Tip: Verify local 4G bands with our managers to ensure compatibility!



Why Choose YX GoIP Pro?

  • Cost Efficiency: Reduce per-call/SMS costs by 60%+ with bulk routing.

  • Scalability: Manage 16 active SIMs or rotate 256 SIMs for large-scale operations.

  • Future-Proof: Supports 4G LTE for low-latency voice/data in modern networks.

High-Density SIM Bank, Multi-SIM VoIP Gateway, Bulk Call Routing, 4G LTE Modem, Enterprise SIP Compliance, Scalable Telecom Solution.


How It Works:

1. Plug in Ethernet & power.
2. Load SIMs.
3. Launch Calls/SMS via API!

Plug & Play | Technical Support | 1-year warranty


↓ YX Gateway main page to set Gateway display, For other uses, please refer to the instruction manual
YX Gateway main page to set Gateway display

Upgrade your telecom infrastructure today with YX GoIP—cut costs and boost efficiency with 256 SIMs in one device!
Need Assistance? Contact customer service (9:00 AM - 6:00 PM GMT+8) for product images or queries!
Need high-volume communication?
This gateway is your all-in-one solution.
Whatsapp: +8615220722893
Emai: yx@yxinternet.com
Telegram: @YXwendy
Teams: yuexun@yx19999.net


↓ User Platform Interface Display of VoIP and SMS Gateway Software

VoIP and SMS gateway connection demonstration

Unscrew the power amplifier casing

Unscrew the switch casing


About Us

YxInternet is a professional supplier specializing in consumer electronics, smart devices, and lifestyle products. With years of experience in global trade and a strong supply chain network, we provide businesses and end-users with reliable products at factory-direct prices.

Our mission is to bridge quality manufacturing with global buyers, making cross-border sourcing easier, faster, and more transparent. From product selection to quality control, and from fast delivery to after-sales support, YxInternet ensures every order meets high expectations.



Why Choose Us

  • Extensive Product Range:From smart electronics to innovative gadgets, we cover a wide range of categories to meet various market demands.
  • Direct-from-Manufacturer Pricing:We work directly with reliable factories, ensuring competitive wholesale prices with no hidden costs.
  • Strict Quality Control:Every product goes through multi-level quality checks, from factory audits to pre-shipment inspections, guaranteeing what you receive matches your expectations.
  • Efficient Logistics Network:With global shipping partnerships, we offer fast and trackable delivery to over 100 countries, keeping your orders on time.
  • Dedicated Customer Service:Our professional team is ready to support you before, during, and after your purchase, ensuring your sourcing experience is smooth and hassle-free.



FAQ

1.Who are we?

YxInternet is a trusted supplier offering consumer electronics, smart devices, connecting global buyers directly with high-quality factories.



2.How can we guarantee quality?

Factory audits to verify production capabilities

Product sampling and testing

Pre-shipment quality checks to confirm product specifications



3.What can you buy from us?

We offer a wide range of products, including:

SMS Modem

SMS Dongle

Voip gateway

SMS gateway
eSIM Gateway
IP Phone
Modules/Accessories

Customized products for bulk orders



4.Why should you buy from us instead of other suppliers?

Direct factory pricing with no middleman markup

Comprehensive quality control from production to delivery

Flexible order solutions for both retail and wholesale

Fast global shipping and reliable logistics

Dedicated after-sales support to resolve any issues



5.What services can we provide?

Product sourcing and customization

OEM and private label support

Product quality inspections

Global shipping coordination

After-sales support and warranty services

1、Overview
VoIP GSM gateway (GoIP gateway) is a device that can reduce the cost of calling mobile networks from fixed telephone lines. It can route directly between IP, digital, analog, and mobile networks. GoIP gateways are increasingly being used by telephone operators to connect IP calls to mobile networks. In areas where fixed line services are unavailable or much more expensive than mobile costs, GoIP gateways are an irreplaceable alternative.

The following figure shows a basic topology of GP Gateway usage.




2、Product Brief
YX series GP Gateway is a multi-functional and high performance product, which is designed with advanced embedded technology. YX series is able to process traditional voice call service and internet data service. perfectly support G729a/b/e、G723.1、G.711 a/u law and iLBC codecs at the same time.
YX series GP Gateway please check the following table about the difference:

Model Number

Channel

Sim capacity in
each channel

Total sim capacity Frequency(optional)

YX GOIP 4-4

4 1 4

GSM / CDMA / WCDMA / 4G(LTE)

YX GOIP 8-8

8 1 8

GSM / CDMA / WCDMA / 4G(LTE)

YX GOIP 8-32

8 4 32

GSM / CDMA / WCDMA / 4G(LTE)

YX GOIP 16-16

16 1 16

GSM / CDMA / WCDMA / 4G(LTE)

YX GOIP 16-64

16 4 64

GSM / CDMA / WCDMA / 4G(LTE)

YX GOIP 16-128

16 8 128

GSM / CDMA / WCDMA / 4G(LTE)

YX GOIP 16-256

16 16 256

GSM / CDMA / WCDMA / 4G(LTE)

YX GOIP 16-512

16 32 512

GSM / CDMA / WCDMA / 4G(LTE)

YX GOIP 32-32

32 1 32

GSM / CDMA / WCDMA / 4G(LTE)

YX GOIP 32-64

32 2(1 Big+1 Small) 64

GSM / CDMA / WCDMA / 4G(LTE)

YX GOIP 32-128

32 4 128

GSM / CDMA / WCDMA / 4G(LTE)

YX GOIP 32-256

32 8 256

GSM / CDMA / WCDMA / 4G(LTE)

YX GOIP 32-512

32 16 512

GSM / CDMA / WCDMA / 4G(LTE)

YX GOIP 64-64

64 1 64

Currently unavailable,

development in progress

YX GOIP 64-256

64 4 256

YX GOIP 64-512

64 8 512


3、Appearance



4/8/16/32 Antennas
● 1 USB Serial Port (Baudrate 115200)
● 1 Network Interface (RJ45)
● 1 Power Interface (DC 12V 3A/5A/7.5A/8A)
● 1 Power light
● 1 Reset Button
● 4/8/16/32/64/128/256/512 SIM card slots
● 4/8/16/32/64/128/256/512 LED lights

4、Special Features

Support G729a/b/e,G723.1,G.711 A/U law, iLBC auto-selecting

BO(Bandwidth Optimization)

Proxy Encryption Solution for IP Block

Support SIM Bank

VPN(pptp)

SIM Card Rotating

     ◆ SIM card check and switch rules:

        Accumulated Call Duration

        Accumulated Connected Calls

        Accumulated Calls

        Consecutive Failed Calls

        Consecutive No-Alert Calls

        Consecutive No-Answer Calls

        Consecutive No Carrier Calls

        Consecutive Short-Duration Calls

        Consecutive Fast-Alerting Calls Checking

        Consecutive Fast-Answer Calls CheckingGSM/CDMA/WCDMA/4G(LTE) VoIP/SMS Gateway

        Consecutive GSM Release Cause Checking

        Accumulated SMS Count Checking

        Accumulated Failed SMS Count Checking

        Consecutive Failed SMS Count Checking

Station intelligent switching(By switching rules)

ERMS(Easement Remote Management System)

Port Inter-Calling

Fake Ring back

FAS shield

Call waiting

Call Duration Limitation for SIM Card/Single

Dial Plan/Prefix Inward Translation/Intelligent Routing

Web Browser: Firefox/Chrome /IE/Opera


5、Specification

Number of Channels

4 channels 4 SIM slots

8 channels 8/32 SIM slots

16 channels 16/64/128/256/512 SIM slots

32 channels 32/128/256/512 SIM slots

Frequency

GSM, CDMA, WCDMA, LTE(When purchasing 3G or 4G equipment,

please confirm the frequency band and module with the account

manager!)

SIP Specification

IP/2.0 RFC3261

Session Timer RFC4028

STUNS

SMS Specification

SMPP3.4

Network Protocols

DHCP/PPPoE/VPN(pptp)

NTP Telnet/HTTP/FTP/TFTP

Encryption:Security,VOS2000,RC4,XOP.Base64

Telephony Features

Hot-line Send SMS ,Dial plan, Speed dial, Phone book, CDR, LCR,

White/Black list

Telephony Signaling

DTMF tone dectection/generation

DTMF relay: in-band, RFC 2833 and SIP info Call forward:

unconditional, no answer and busy N-way conferencing

Caller ID display/generation, Mobile Number Portability

Voice Capability

Voice codecs:G729a/b/e,G723.1,G.711 A/U law, iLBC

Echo cancellation

Silence suppression & detection(VAD, CNG)

Adaptive jitter buffer Volume adjustable IVR customized

Number of Ports

1 WAN 10/100Base-T Ethernet(RJ-45 connector)

1 Console(USB)

LED

1 Power and 4/8/16/32/64groups of card online and running status

indicator

Power Supply

100-240VAC, 50 - 60 Hz IN, 12VDC 3A/5A/7.5A/8A Out

Operating Environment

Operating temperature: 0 - 50ºC

Operating humidity: 10 – 90%RH

Warranty 12 Months


6、Mobile Features

SMS Send, Receive and Forward(GSM/SIP/HTTP)

SMS Inbox

AT Command , USSD

SMS Format: PDU/TXT

PIN Code Management

CDMA Delay Answer

GSM Polarity Reversal

Carrier Selection

Caller ID Hidden(need SIM Card support)

7、Maintenance and Management

Multi-language Interface

USB Serial COM

Configuration Backup and Restore

Support HTTP/TFTP Upgrade

 Call statistics: ASR,ACD,PDD

WEB Remote Management System

SMPP support

HTTP Command


▼The following pictures are demo of the platform's interface setup and operation



8、FAQ

Q1. Does GOIP or MOIP support custom calling number/sender ID when making phone calls or sending text messages?
A:The device uses a SIM card, which naturally displays the SIM card number when making calls or sending text messages. This is determined by the SIM card itself and the SIM card operator, and generally does not support custom calling numbers/sender IDs. In VOIP and network SMS services, only the operator's routing (CLI and direct connection) may be supported!

Q2. Does GOIP or MOIP support detecting surrounding mobile phone information, listening to surrounding calls, tracking/tracing mobile phones/calls/SMS, IMSI Catcher and other detection functions?
A:This type of feature has no connection with our product and is not supported!

Q3. Does GOIP or MOIP support wifi or multi wifi functions to provide data internet access and other functions?
A:The functions related to wifi/data internet are not related to any of our devices and are not supported!


Q4. Does GOIP, MOIP, or SMS modem support functions such as MMS, picture SMS, voice SMS, video calls, etc?

A:SMS modems can support MMS (customers need to have their own software support, we do not provide MMS software), and the latest version of YX GOIP/MOIP can also support sending MMS. Other products do not support it

Q5.Does GOIP support the function of hiding the caller when making phone calls?
A:The device has a setting function to hide the caller, but it requires the SIM operator to support this function at the same time.

Q6. Does GOIP and modem have API?
A:The GOIP/MOIP of YX series has HTTP APIs for sending/receiving SMS and USSD, and supports customer developed software to call through HTTP; DBL's GOIP does not have an API that can be directly used, but if the client has their own server, after installing a GOIP SMS sending server software, they can use the SMS HTTP API; The modem does not have an API.

Q7. What devices can make voice group calls?
A:SMS modems do not support direct audio access and cannot play voice after calling out. GOIP can support it, but GOIP cannot automatically call out and requires the call center to provide functions for calling out and playing voice

Q8. Is there a device that supports receiving and forwarding SMS messages?
A:SMS modems can receive text messages, but they do not support forwarding. Additionally, the software we provide does not support checking which port received the messages
YX GOIP/MOIP can receive information and forward it to email/HTTP address/SIP server/other phone numbers or HTTP API directly from the device (Commonly used methods include email or HTTP API retrieval)

Q9. Can the device support international roaming? What should be noted?
A:1. The SIM card needs to be able to roam to the target country. 2. It is necessary to understand the frequency band of the target country, and the device needs to be matched with the frequency band of the target country (if there are too many frequency bands in the target country, it can also be determined which operator in the target country can provide roaming signals for the SIM card, and the device needs to match the frequency band of the operator that provides roaming signals)

Q10. What is the SMS sending speed for MOIP/GOIP?
A:GOIP/MOIP(2G/3G/4G): 720 per port per hour (the above standard testing environment may vary depending on the device environment)

Q11. Does SIMBank support connecting to devices other than GOIP and MOIP, do they have APIs, and can different brands of SIMBANK and GOIP be used?
A:SIMBank does not support connecting to devices other than GOIP and MOIP, there is no API, and different brands of SIMBANK and GOIP cannot be used

Q12. How can SIMBANK connect to GOIP/MOIP and card the device?
A:SIMBANK generally requires the use of the software SIM Server installed on the server to manage, connect, and allocate cards, in order to achieve remote card access. If there is no server, one needs to be rented, and the system requires CentOS 5. X or 6. X

Q13. What are the ways to send/receive SMS for YX series GOIP/MOIP and DBL?

A: (1) Login to the device page to send/receive directly;
(2) Directly connect to the SMS platform (only support EIMS/IMFS) to send/receive;
(3) use HTTP API to send/receive directly (customers may need their own software/platform support);
(4) if the customer has a public IP, the customer can set the public IP to GOIP, and then send SMS after docking with SMPP SMS platform;
DBL's no API can only use the page to send or use the server supporting SMS sending software to send.

Q14. Can GOIP or MOIP use the data traffic inside the SIM card to give users access to the Internet?

A: No, we don't have this kind of equipment.

Q15. Difference between YX GOIP and DBL GOIP in terms of sending and receiving SMS.

A: DBL can only send and receive SMS in the device (SIM reason, the maximum number of messages received is 50), or the customer has its own server to install information management software (can send and receive, unlimited number of SMS).
YX can send and receive SMS in the device (SIM reasons to receive information up to 50) or you can use our free ETMS management software (can be received, but sent to need to use another EIMS2, unlimited number of SMS), if the customer has the ability, the device also has a HTTP API can be accessed to their own development of the program (support for sending and receiving)

Q16. Can GOIP/modem be used in XX countries (or a certain operator)?

A: The product has nothing to do with the use in which country or which operator, as long as the frequency band of the device can match the local (or the operator to be used), it can be used!

Because the 4G frequency band is different in different countries or regions, when placing an order, please indicate the country in which the product is used. If there is no indication, we will select the corresponding frequency band model based on the country where the shipping address is located.

Product Feature

Name

4G LTE Wireless Modem

communication interface

U​SB

Chipset

Quectel EC25 / EG91 / EG25 / EC20

Function

SIP Voice / STK / AT Command / TCP/IP / Data / SMS / IMEI / MMS / Email / GPRS / GPS / USSD

Frequency

EC25-EUX / EG91-EX :(Asia, Europe,Africa, the Middle East,Southeast Asia, Vietnam, Myanmar, Laos, Cambodia, Malaysia, Singapore, Russia)

​LTE FDD: B1,B3,B5,B7,B8,B20,B28
​LTE TDD: B38,B40,B41
​WCDMA: B1,B5,B8 (900/2100MHz) ​
GSM: B3,B8 (900/1800MHz) ​

EC25-AFX / EG91-NAX :(United States and Canada)
LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71 ​
WCDMA:B2/B4/B5 (1900,1700,850MHz) ​

EC25-AUX / EG91-AUX :(Australia, New Zealand and Latin America, Mexico, Peru, Colombia, Brazil, Chile, Argentina, Dominican Federation, Venezuela, Honduras, Guatemala, Nicaragua, Costa Rica, Panama, Cuba, Guyana, Bolivia, Paraguay, Uruguay, etc)
LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 ​
LTE TDD: B40
​WCDMA: B1/B2/B4/B5/B8 (850,900,1700,1900,2100MHz) ​
GSM:B2/B3/B5/B8 (850,900,1800,1900MHz) ​

EC25-J :(Japan)
​LTE FDD: B1/B3/B8/B18/B19/B26
​LTE TDD: B41 ​
WCDMA: B1/B6/B8/B19 ​

EG25-G :(Global Full Frequency)

LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28

LTE-TDD: B38/B39/B40/B41

WCDMA: B1/B2/B4/B5/B6/B8/B19

GSM: B2/B3/B5/B8


EC20 :(China, India)
LTE FDD: B1/B3/B5/B8
​LTE TDD: B34/B38/B39/B40/B41
​WCDMA: B1/B5/B8 (900,2100MHz) ​
TD-SCDMA: B34,B39 (900,2100MHz) ​
EVDO CDMA: BC0 (800MHz) ​
GSM: B3,B8: (900,1800MHz)

Operating System

Win all, Linux, android

Working voltage

AC 100-240V / DC 12V

Warranty

One Year

Comes with packaging
● SMA Antennas
● Ethernet Cable
● USB Cable
● AC/DC Adapter (Input Voltage 110-240V)
● Rack Connector
Frequently Bought Together
  • Recommend
more
Frequently Bought Together
Recommend
1
GP 16-256 (SMS and Voice), EC25 (Region Specific Global Coverage), 2+ Units Price (Tip: Min Qty 2 | No Shipment Otherwise), EU, Original package
$ 1,800.00 $0.00
Total: $ 45,030.00
Save $-45,030.00 for buying together

Download

$0.00 $0.00
Please choose options.Back to top
Close
$0.00 $0.00
