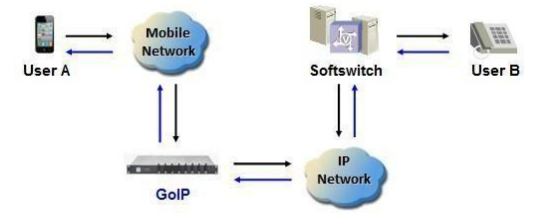

A GOIP VoIP Gateway (also called GP Gateway) is a device that connects IP networks with mobile, digital, and analog telephone networks. Its core benefit is cutting call costs—especially for calls from fixed lines to mobile networks.
Telephone carriers rely on it to "land" IP calls directly into mobile networks, skipping expensive middlemen. In regions where fixed-line services are unavailable or too costly (such as remote areas or emerging markets), a GOIP Gateway becomes an irreplaceable communication solution . It bridges different network types, ensuring smooth voice and data transmission.
YX Series is built with advanced embedded technology, combining voice and data services in one high-performance device. Here are its most valuable features:
It automatically selects the best voice codec for your network: G729a/b/e, G723.1, G.711 A/U law, and iLBC. This balances call quality and bandwidth usage, ideal for areas with unstable internet.
- Bandwidth Optimization (BO): Saves data usage without lowering call quality.
- Proxy Encryption & VPN (PPTP): Bypasses IP blocks and protects data with RC4 and Base64 encryption . Perfect for regions with strict network restrictions.
- FAS Shield: Blocks fake answer signals to reduce unnecessary costs.
- SIM Card Rotating: Automatically switches SIM cards based on 13+ rules (e.g., accumulated call duration, consecutive failed calls, SMS count). Prevents SIM cards from being restricted by carriers.
- SIM Bank Support: Works with external SIM banks for larger capacity needs.
- PIN Code Management: Secures your SIM cards from unauthorized use.
- ERMS (Easement Remote Management System): Manage the device from anywhere via a web browser (Firefox, Chrome, IE, Opera).
- Call Statistics: Track key metrics like ASR (Answer Seizure Ratio), ACD (Average Call Duration), and PDD (Post Dial Delay) to optimize performance.
- Configuration Backup/Restore: Avoids setup loss and speeds up maintenance.
- Voice Features: Echo cancellation, silence suppression (VAD/CNG), and adjustable volume for clear calls.
- SMS Services: Send, receive, and forward SMS via GSM, SIP, or HTTP. Supports PDU/TXT formats and USSD commands.
- Telephony Tools: Call waiting, call forwarding (unconditional/busy/no answer), N-way conferencing, and white/black lists.
YX Series fits various businesses and carriers looking to optimize communication:
- Telephone Carriers: Land IP calls into mobile networks cost-effectively.
- Cross-Border Businesses: Reduce international call costs between offices and clients.
- Remote Area Enterprises: Replace expensive or unavailable fixed-line services with mobile networks.
- Call Centers: Handle high call volumes with multiple channels and SIM cards.
- SMS Service Providers: Manage bulk SMS campaigns with reliable SIM rotation.
YX Series offers models for every scale—from small businesses to large carriers. Choose based on your channel needs (number of simultaneous calls) and SIM capacity:
Note: All models support GSM, CDMA, WCDMA, and 4G (LTE). Confirm frequency bands with our account manager when buying 4G devices.

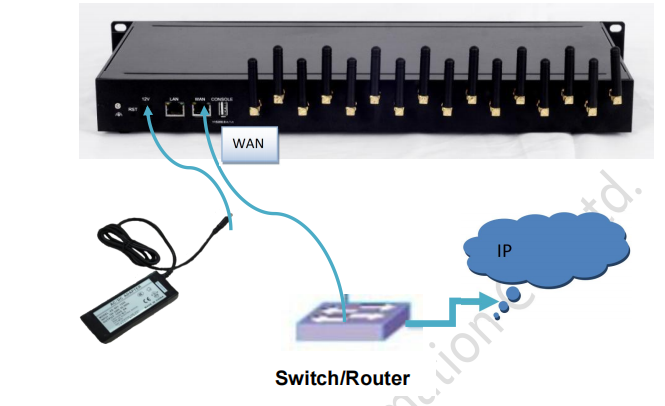

Setting up the YX Gateway takes 5 simple steps—no technical expertise required:
- Attach Antennas (Optional): For better mobile signal reception.
- Insert SIM Cards: Place your SIM cards into the slots (LED lights show each card’s status).
- Connect to Network: Link the gateway’s RJ45 WAN port to your router/switch with an Ethernet cable.
- (Optional) Connect to PC: Use another Ethernet cable to connect the gateway to your computer for configuration.
- Power On: Plug in the DC 12V power supply (3A/5A/7.5A/8A, model-dependent).
Once powered on, access the web management interface via your browser to adjust settings (e.g., dial plans, SIM rotation rules).
Compared to other GOIP gateways, YX Series stands out for:
- All-in-One Functionality: Handles voice calls, data, and SMS—no need for extra devices.
- Reliability: Operates in temperatures 0–50°C and 10–90% humidity, suitable for harsh environments.
- Flexibility: Supports multiple networks (2G to 4G) and grows with your business.
- Easy Management: Multi-language interface and remote access save time on on-site maintenance.
- Warranty: 12-month warranty for peace of mind.
If you’re tired of high call costs, unreliable communication, or complicated device management, the YX GOIP VoIP Gateway is the solution.
- Browse All YX Models to find your perfect fit.
- Contact Our Team for frequency band confirmation or custom advice.
