An SMS Gateway (MOIP Gateway) is a device that connects fixed telephone lines to mobile networks, making it cheaper to send SMS. It enables direct routing between IP, digital, analog, and mobile networks, so you can send messages efficiently without extra costs.

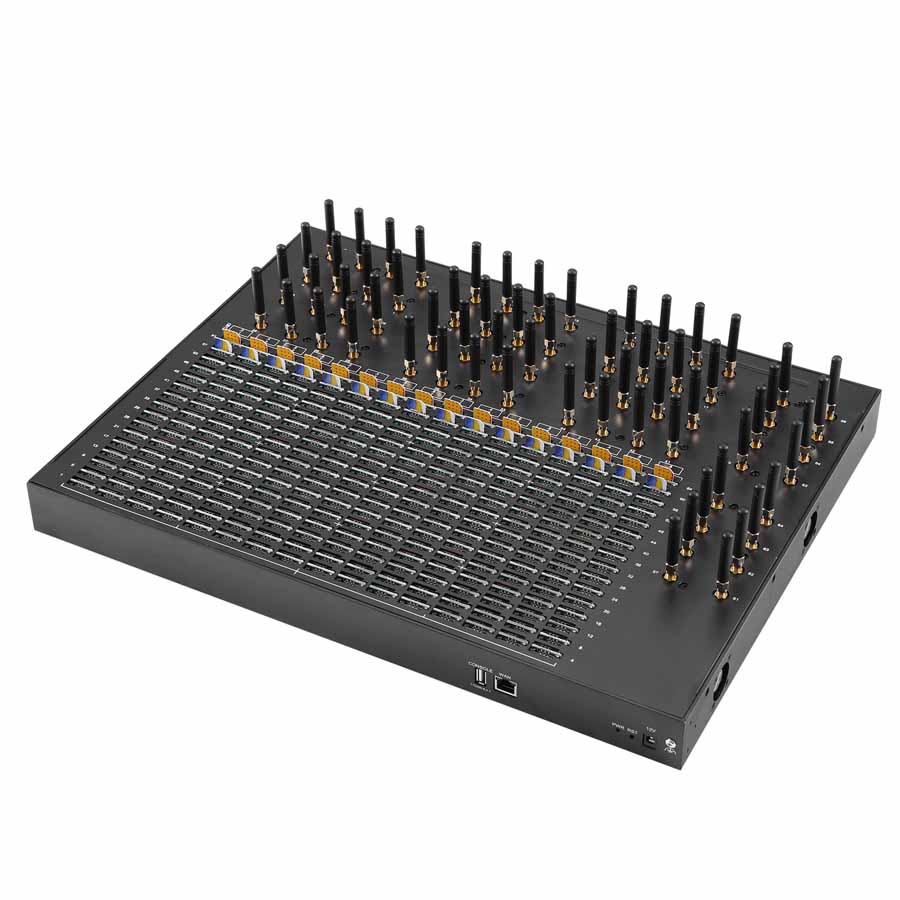

YX-MoIP Gateway is designed for businesses and organizations that need to send bulk SMS. It works with 2G or 4G networks and supports 4-64 ports, allowing simultaneous messaging from multiple SIM cards.
- Bulk SMS Sending: Send messages from 4 to 512 SIM cards at the same time (depending on port configuration).
- Multi-Network Compatibility: Connects IP, digital, analog, and mobile networks directly—no need for middlemen.
- Rich Features: Supports STK, AT Command, TCP/IP, SMS, MMS, Email, GPRS, GPS, USSD, and more.
- Flexible Protocols: Works with DHCP, PPPoE, Static IP, and VPN for stable network connections.
- SMS Standards: Compatible with SMPP3.4, HTTP, API, and EIMS—easy to integrate with your existing systems.
- Telephony Tools: Includes hot-line calls, dial plans, speed dial, phone books, CDR, LCR, and white/black lists for better control.
- Frequency: 850/900/1800/1900 MHz (GSM full frequency).
- Coverage: Works in countries where 2G GSM networks are still active.
- Note: Not available in Australia, South Korea, Japan, the US, and Canada (these countries have shut down 2G).
- Frequency: 700-2700 MHz (wider coverage than 2G).
- EC25-EUX: For Asia, Europe, Africa, the Middle East, Southeast Asia (Vietnam, Myanmar, etc.), Russia.
- Supports LTE FDD: B1,B3,B5,B7,B8,B20,B28
LTE TDD: B38,B40,B41
WCDMA: B1,B5,B8 (900/2100MHz)
GSM: B3,B8 (900/1800MHz)
- EC25-AFX: For the US and Canada.
- Supports LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71
WCDMA:B2/B4/B5 (1900,1700,850MHz)
- EC25-AUX: For Australia, New Zealand, Latin America (Mexico, Brazil, etc.).
- Supports LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
LTE TDD: B40
WCDMA: B1/B2/B4/B5/B8 (850,900,1700,1900,2100MHz)
GSM:B2/B3/B5/B8 (850,900,1800,1900MHz)
- EC25-J: For Japan.
- Supports LTE FDD: B1/B3/B8/B18/B19/B26
LTE TDD: B41
WCDMA: B1/B6/B8/B19
- EC20: For China and India.
- Supports LTE FDD: B1/B3/B5/B8
LTE TDD: B34/B38/B39/B40/B41
WCDMA: B1/B5/B8 (900,2100MHz)
TD-SCDMA: B34,B39 (900,2100MHz)
EVDO CDMA: BC0 (800MHz)
GSM: B3,B8: (900,1800MHz)
Key Difference: 4G works in more countries (including those with 2G shut down) and offers faster, more stable connections. 2G is a cost-effective choice for regions with active 2G networks.
YX-MoIP Gateway offers various port and SIM combinations to fit your needs:
- 4 Port: 4 port 4 sim (4 ports, 4 SIM cards)
- 8 Port: 8 port 8 sim; 8 port 32 sim
- 16 Port: 16 port 16 sim; 16 port 64 sim; 16 port 128 sim; 16 port 256 sim; 16 port 512 sim
- 32 Port: 32 port 32 sim; 32 port 128 sim; 32 port 256 sim; 32 port 512 sim
- 64 Port: 64 port 64 sim; 64 port 256 sim; 64 port 512 sim
Each port configuration lets you send SMS from the corresponding number of SIM cards at the same time. More ports mean more messages sent simultaneously—great for large-scale messaging needs.
- Set Up: Connect the gateway to power (100-240VAC) and network (WAN Ethernet port).
- Insert SIM Cards: Put SIM cards into the slots based on your port configuration.
- Configure: Use AT commands, TCP/IP, or supported APIs (SMPP3.4, HTTP) to set up messaging rules.
- Start Sending: Send bulk SMS directly from fixed lines to mobile networks.
YX Series MP User Manual.pdf (SMS Gateway Product Manual)
- Cost Savings: Reduces SMS costs by routing directly between networks.
- High Efficiency: Send from up to 512 SIM cards at once—ideal for bulk messaging.
- Global Compatibility: 2G/4G options cover most countries (check module details for your region).
- Easy to Use: Simple setup with instruction manuals and technical support.
- Flexible Payment: Supports USDT (1% discount), PayPal, credit cards, TT, etc.
- Reliable: 12-month warranty and 24/7 customer support (WhatsApp, Email, Telegram).
- Whatsapp: +8615220722893
Emai: yx@yxinternet.com
Telegram: +8615220722893
Whether you need to send transactional alerts, marketing messages, or notifications, YX 2G/4G SMS Gateway helps you do it faster and cheaper. Choose the right port and module for your region—click below to order now!
